Chain Transmission Iron Rolling Shutter Door Roll Forming Machine 12 Stations

China Chain Transmission Iron Rolling Shutter Door Roll Forming Machine 12 Stations supplier
Chain Transmission Iron Rolling Shutter Door Roll Forming Machine 12 Stations supplier Chain Transmission Iron Rolling Shutter Door Roll Forming Machine 12 Stations supplier Chain Transmission Iron Rolling Shutter Door Roll Forming Machine 12 Stations supplier

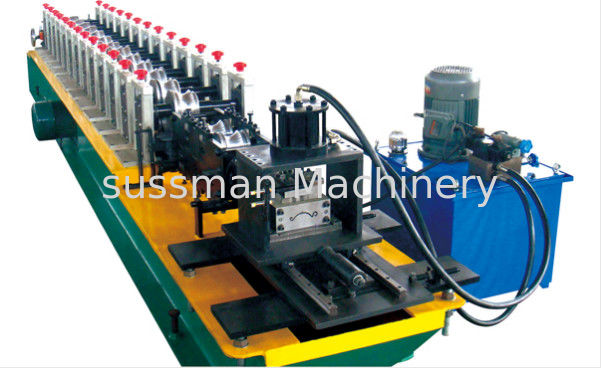

Large Image :  Chain Transmission Iron Rolling Shutter Door Roll Forming Machine 12 Stations

Product Details:

Place of Origin: China
Brand Name: Sussman
Certification: CE,ISO,SGS
Model Number: SM-SS

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: plastic film and steel wire
Delivery Time: 60days after deposit
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Material: Aluminum Coil Plate And Colorful Galvanize Steel Material Thickness: 0.5-1.0mm
Forming Stations: 12 Stations Roller Material: GCr15
Dirve Systemi: 1 Inch Chain Drive Forming Speed: 10-15m/min Exclude Cutting
Machine Size: 3.5M X 0.5M X 0.8M Machine Weight: About 3.5 Tons

12 Stations Chain Transmission Iron Rolling Shutter Door Slats Forming Machine With 0.5-1.0mm Thickness









Technical Parameter



Item NO



Description



Offered specification

1

Product Line speed

8-15m/min(not include cutting )

2

Suitable material  thickness

0.5-1.0mm

3

Raw material

Galvanized coils yield strength≤G250MPa

4

Feeding width

135mm

5

Decoiler

3 Ton passive decoiler

6

Levelling device

7 roller levelling including 3 top rollers and 4 bottom rollers

7

Roller stations

12 stations



8

Roller material

Bearing steel, quenching treatment

9

Shaft diameter

Φ60mm ,material is 45# forge steel

10

Transmission

By chain one inch single chain

11

Material of chain

45# forged steel with frequency quenching

12

Cutting system

Hydraulic cutting blade cr12mov with quench HRC58-62°

13

Main motor power

5.5kw

14

Motor power of hydraulic station

4kw

15

Hydraulic station pressure

12Mpa

16

Tolerance

6m+-1.5mm

17

Machine Frame

H Beam Steel





Shutter Door Roll Forming line Main Components



Machine Item

Quantity (set)

3 Ton Passive De-coiler

1set

Leveling device

1set

Hydraulic cutting Device with Hydraulic Station

1set

Main roll forming machine

1set

Run out table

2 units

Control System with PLC

1set





Working Flow of  Production Line



Uncoiler—feeding with guide—Rollforming—Cutting—Products collecting







Standard Profile and Drawing



Chain Transmission Iron Rolling Shutter Door Roll Forming Machine 12 StationsChain Transmission Iron Rolling Shutter Door Roll Forming Machine 12 Stations







Customer Visiting

 Chain Transmission Iron Rolling Shutter Door Roll Forming Machine 12 StationsChain Transmission Iron Rolling Shutter Door Roll Forming Machine 12 Stations









Loading pictures





Packaging Details:

1. one 20ft container for loading one set machine with manual decoiler;
2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film;
3. Spare parts and some small parts packed in plastic tooling box;
4. All Components Fixed by steel wire with Container.

Delivery Detail:Within 60 days after receipt of buyer's deposit
