7.5Kw Power 60mm Shutter Door Octagon tube roll Forming Machine With 4-6m/Min Forming Speed

China 7.5Kw Power 60mm Shutter Door Octagon tube roll Forming Machine With 4-6m/Min Forming Speed supplier
7.5Kw Power 60mm Shutter Door Octagon tube roll Forming Machine With 4-6m/Min Forming Speed supplier 7.5Kw Power 60mm Shutter Door Octagon tube roll Forming Machine With 4-6m/Min Forming Speed supplier 7.5Kw Power 60mm Shutter Door Octagon tube roll Forming Machine With 4-6m/Min Forming Speed supplier 7.5Kw Power 60mm Shutter Door Octagon tube roll Forming Machine With 4-6m/Min Forming Speed supplier

Large Image :  7.5Kw Power 60mm Shutter Door Octagon tube roll Forming Machine With 4-6m/Min Forming Speed

Product Details:

Place of Origin: China
Brand Name: Sussman
Certification: SGS.ISO,CE
Model Number: SM-OP

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: standard packing film and steel
Delivery Time: 60days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Material: 45# Steel Material Thickness: 0.4-1.2mm
Forming Stations: 20 Stations Roller Material: GCr15 Steel
Dirve System: Chain Drive Power Supply: 380V, 50Hz, 3Phase
Forming Speed: 10-12m/min Drive Type: By Chain

7.5Kw Power 60mm Shutter Door Octagon tube roll Forming Machine With 4-6m/Min Forming Speed



Advantages


1.High Quality

2.Reliable

3.Durable

4.Reasonable Price

5.Good after Service

6.1 Year Warranty

7.More Than 10 Years Experience




Machine Technical Data

  1. Machine specification: forming thickness)0.4-1.2mm stainless steel strength≤G250Mpa

  2. Forming speed: 10-12M/min (EXCLUDING CUTTING STOP TIME)

  3. Forming roller: about 20stations

  4. Main motor power: 7.5KW

  5. Roller material: 45# forged steel, surface coated with chrome

  6. Main shaft material: 45# steel

  7. Main axis dia.: 70mm

  8. Hydraulic cutting pressure: 10-12Mpa

  9. Cutting method: Electric powered saw cutting, cutting after roll forming.

  10. Cutting blade material: Cr12 quenching treatment

  11. Electrical controlling system: Whole line adopted PLC control, cut to length tolerance≤2mm

  12. Wig welding device

  13. Water cooling system





 Production Line Machine List


Serial No.

Commodity & Description

Quantity

1

3T manual uncoiler

1 set

2

feeding guiding

1 set

3

Main roll forming machine

1 set

4

Output table

1 set

5

Main drive gear box

1 set

6

Fly saw cutting

1 set

7

Controlling system (including cabinet)

1 set

8

Water cooling system

1 set






Standard Profile



7.5Kw Power 60mm Shutter Door Octagon tube roll Forming Machine With 4-6m/Min Forming Speed







Working Flow of Octagon Pipe Roll Forming Machine


  Uncoiling – feed Guiding–Roll forming ––fly saw cutting – Run-out table

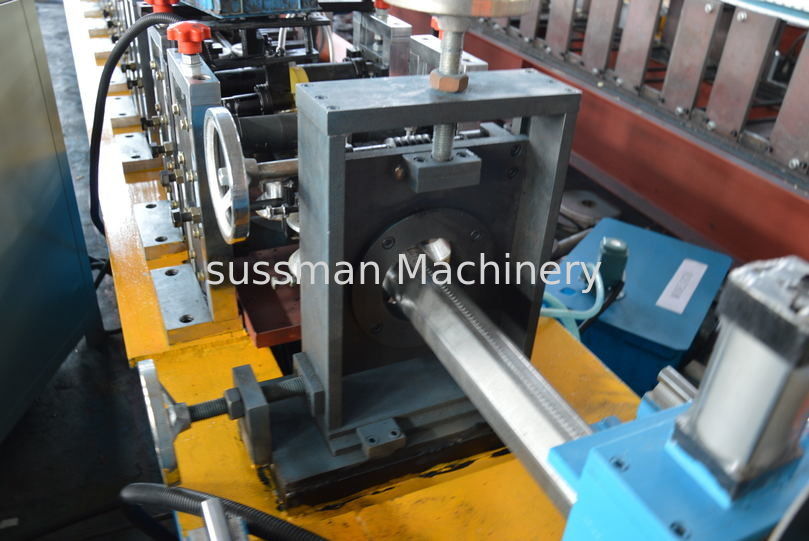

 Photo Gallery
 7.5Kw Power 60mm Shutter Door Octagon tube roll Forming Machine With 4-6m/Min Forming Speed

7.5Kw Power 60mm Shutter Door Octagon tube roll Forming Machine With 4-6m/Min Forming Speed






Loading pictures






Sales terms



Terms of Payment: 30% of the total contract value paid by T/T as down payment, the rest 70% of the total contract value to be paid by T/T after inspection by buyer in seller’s factory while before delivery.

Delivery: 60 days after receipt of advance payment

Service: we send technician to your country to fix the machine.The buyer should bear all the cost including: visa, Roundtrip tickets and suitable accommodation, also buyer should pay salary 100USD/day.

Warranty: 12 months limited warranty





Company information



Sussman Machinery is specialized in building materials of light steel structure. Since the factory founded 10 years before


The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine,

the cable tray roll forming machine,Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine,Down Pipe forming machine, the whole carriage plate for car beam unit,Steel storage unit, etc.

Sussman machinery is located in Wuxi city, Jiangsu province which is close to Shanghai, It's about half an hour's journey.

We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.





NOTE: we are capable of designing machine as your drawing and all the plate types can be changed according to your need.
