PLC control Rack Roll Forming Machine with High Speed Punching Press Machine
  • PLC control Rack Roll Forming Machine with High Speed Punching Press Machine
  • PLC control Rack Roll Forming Machine with High Speed Punching Press Machine
  • PLC control Rack Roll Forming Machine with High Speed Punching Press Machine

PLC control Rack Roll Forming Machine with High Speed Punching Press Machine

Place of Origin China
Brand Name SUSSMAN
Certification SGS.CE.ISO
Model Number SS-UR
Product Details
Name:
Rack And Shelving Upright Roll Forming Machine
Material:
Galvanized Steel
Material Thickness:
1.5-2mm
Forming Stations:
18 Stations
Roller Material:
Gcr15, Quench HRC58-62 Plated Chrome
Dirve System:
1.5 Inch Chain Drive
Power Supply:
380V, 50Hz, 3Phase
Forming Speed:
12-15m/min
Machine Weight:
About 5 Tons
Machine Size:
7.5mx0.8mx0.8m
High Light:

racking roll forming machine

,

steel roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
standard packing
Delivery Time
60-90 days
Payment Terms
L/C, T/T
Supply Ability
10 sets per month
Product Description

Heavy Duty Galvanized Steel Pallet Rack Roll Forming Machine with High Speed Punching Press Machine



 Technical Data

1. Suitable Plate Material: thickness 1.5-2.0mm, Galvanized steel

2. Working Speed: 12-15meters / min

3. Forming machine: 18 stations

4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome

5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining

6. Driven system: Chain Driven 1.5 inches 20A double chain with longer shafts

7. Main Power with reducer: 11KW

8. Cutting: Hydraulic Cutting Cr12mov

9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62

10. Hydraulic Station Power: 5.5KW

11. The whole machine is controlled by Panasonic PLC

12 PLC--Panasonic, Japan English and Chinese Language

13. Touch Screen--Panasonic Japan

14. Encoder--Omron, Japan

15. Electric parts--Schneider

16. Outline of main about 7500mm*800mmm*800mm

17. Weigh: about 5 tons


 Main Machine List


Serial No.

Commodity & Description

Quantity

1

5T manual uncoiler

1 set

2

Leveing  guiding

1 set

3

Servo feeding device

1 set

4

Punching machine

1 set

5

Main roll forming machine

1 set

6

Hydraulic station

1 set

7

Cutting device

1 set

8

Finished products tabel

1 set

9

PLC control system

2 sets

10

Out tables

1 sets

11 Spare parts 1 sets




Advatage Of Roll Formed Pallet Rack:

  • Adaptable: Adapts to the weight, volume and size of many products and the teardrop style is interchangeable among different manufacturers. Excellent for warehouses storing products with varying sizes.
  • Convenience: A boltless, easy to assemble product. Provides great stock management with direct access to each pallet. Because the clips can be moved quickly, shelves can be easily changed to accommodate various heights and load sizes.
  • Cost-Effective: Less expensive and more adaptable than structural steel racks, the cost provides a good return on investment. The roll-formed design, using flat rolled carbon steel, still provides strength necessary for most applications.


 Photo Gallery

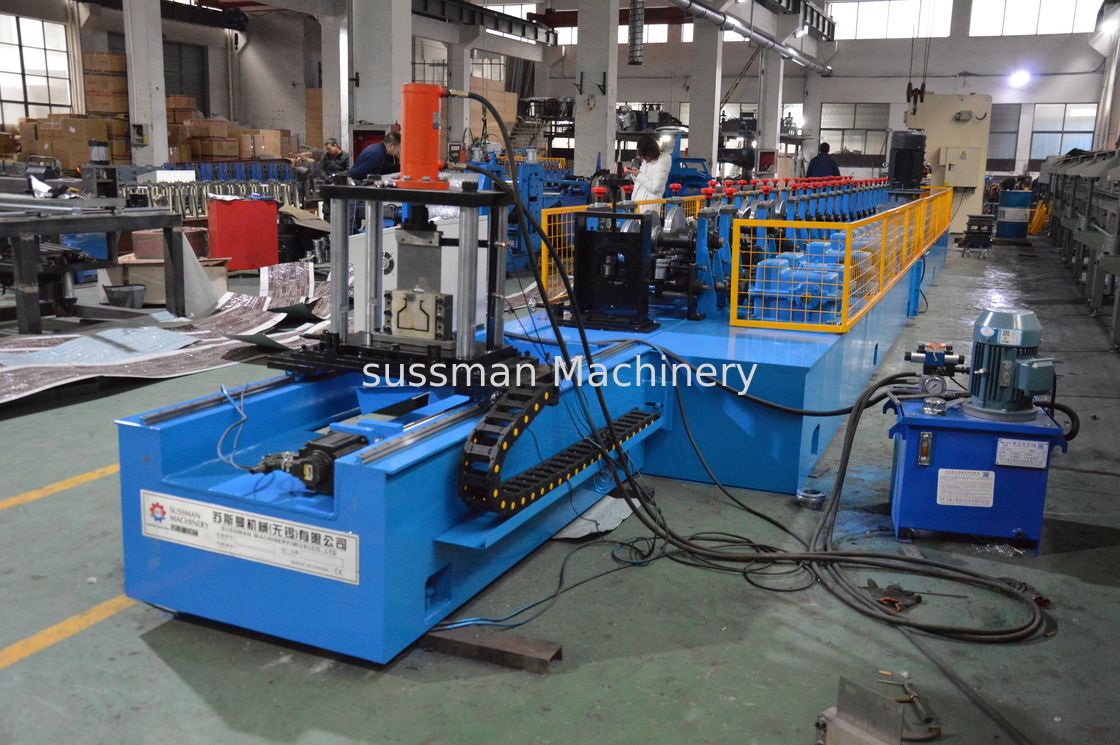

PLC control Rack Roll Forming Machine with High Speed Punching Press Machine 0PLC control Rack Roll Forming Machine with High Speed Punching Press Machine 1PLC control Rack Roll Forming Machine with High Speed Punching Press Machine 2
