Durable Quality Light Gague Galvanized Steel Truss Roll Forming Machine
Technical parameter
Item | Technical data |
Steel sheet thickness | 0.55-0.8mm (depend on requirement ) |
Hydraulic power | 4kw |
Transmission way | chain |
Chain | 1 inc chain |
Capacity of Decoiler | 3 Ton passive decoiler |
Forming Speed | 10-12m/min |
Roller Groups | about 11 stes main roller |
Roller Material | 45# high grade steel with finish machining treatment, by high frequency quenched HRC58-62 |
Roller Diameter | 100mm |
Principal Axis | 45# high grade steel with quenching treatment |
Main Motor Power | 5.5 Kw |
Dimension | 5500*600*1000mm |
Applications
Metal stud and track, steel stud and track, c stud, u runner, u track, furring channel, roof ceiling batten, roof truss, c truss, light weight steel truss...
Main Components
Machine name | Quantity |
3 ton manual Decoiler | 1 set |
Main roll forming machine | 1 set |
Hydraulic station | 1 set |
Hydraulic cutting device | 1 set |
Finished poducts tabels | 2 stes |
PLC control system | 1 set |
Ebossing roller | 1 set |
Furring Channel Working Flow
De-coiler—→feedingwithguide—→main roll forming machine—→cutting—→ run out table
Furring Channel Profile Drawing
Advantage
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable

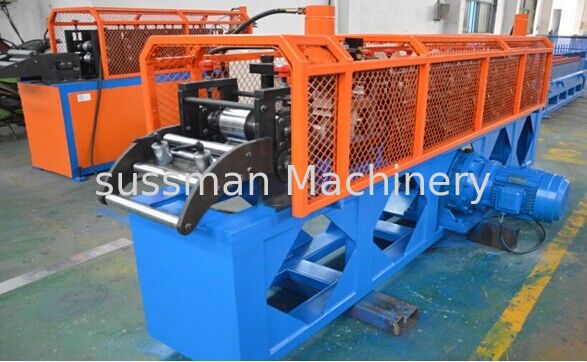

Machine Photo
