Galvanized Steel Roof Batten Cold Roll Forming Machine with Hydraulic Cutting

China Galvanized Steel Roof Batten Cold Roll Forming Machine with Hydraulic Cutting supplier
Galvanized Steel Roof Batten Cold Roll Forming Machine with Hydraulic Cutting supplier Galvanized Steel Roof Batten Cold Roll Forming Machine with Hydraulic Cutting supplier Galvanized Steel Roof Batten Cold Roll Forming Machine with Hydraulic Cutting supplier Galvanized Steel Roof Batten Cold Roll Forming Machine with Hydraulic Cutting supplier

Large Image :  Galvanized Steel Roof Batten Cold Roll Forming Machine with Hydraulic Cutting

Product Details:

Place of Origin: Wuxi, China
Brand Name: Sussman
Certification: CE, SGS, ISO
Model Number: RF-ST

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Film and steel
Delivery Time: 60 days after deposit
Supply Ability: 10 sets/month
Contact Now
Detailed Product Description
Hydraulic Cutting Power: 3Kw Machine Weight: About 2.5Tons
Cutting Blade Material: Cr12 Roller Stations: About 13 Stations
Forming Speed: 12-15m/min Drive Way: Chain Drive
Warranty: 12 Months

Galvanized Steel Material Thickness 0.8-1.2mm Roof Batten Cold Roll Forming Machine with Hydraulic Cutting







1. Company Introduction

Sussman Machinery (wuxi) Co., Ltd. is a comprehensive enterprise combining production, sales and services. We are mainly engaged in providing machineries and equipments.

Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, Galvanized Steel Roof Batten Cold Roll Forming Machine with Hydraulic Cuttingtechnical solution and after-sale services. We have shipped out our machines to more than 70 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.

We have our customers in different districts and continents. We sell products in the Middle East, Turkey, East Europe, Russia, South and East Asia and South America. Our factories are in Wuxi, which is just 100 km from Shanghai, just 45 min by the fast train. We have rich technology in design and manufacture for different requirements.

Our goal is to supply high quality products. We also try to guarantee timely delivery, all around services at reasonable cost. We have already established favorable relationships with many clients around the world. Working to extend our presence internationally, we are looking forward to cooperating with your company for mutual benefit. Please feel free to contact us.









2. Technical Parameter

Material thickness 1mm galvanized coils or black steel
Profile width about 22mm
profile height about 5.5mm
rolling speed 10-15m/min
Roller stations 10 stations
Roller material 45# steel, shaft diameter 60mm
Main motor power 3kw
Hydraulic cutting power 3Kw
Machine weight about 2.5Tons
Cutting blade material Cr12





3. Working Flow

Feeding with guide—Rollforming——Cutting—Products collecting







4. Machine Components



 3 ton passive decoiler  1 set
Main roll forming machine  1 set
PLC control box  1 unit
Hydraulic station 1 unit
Out table 2 units

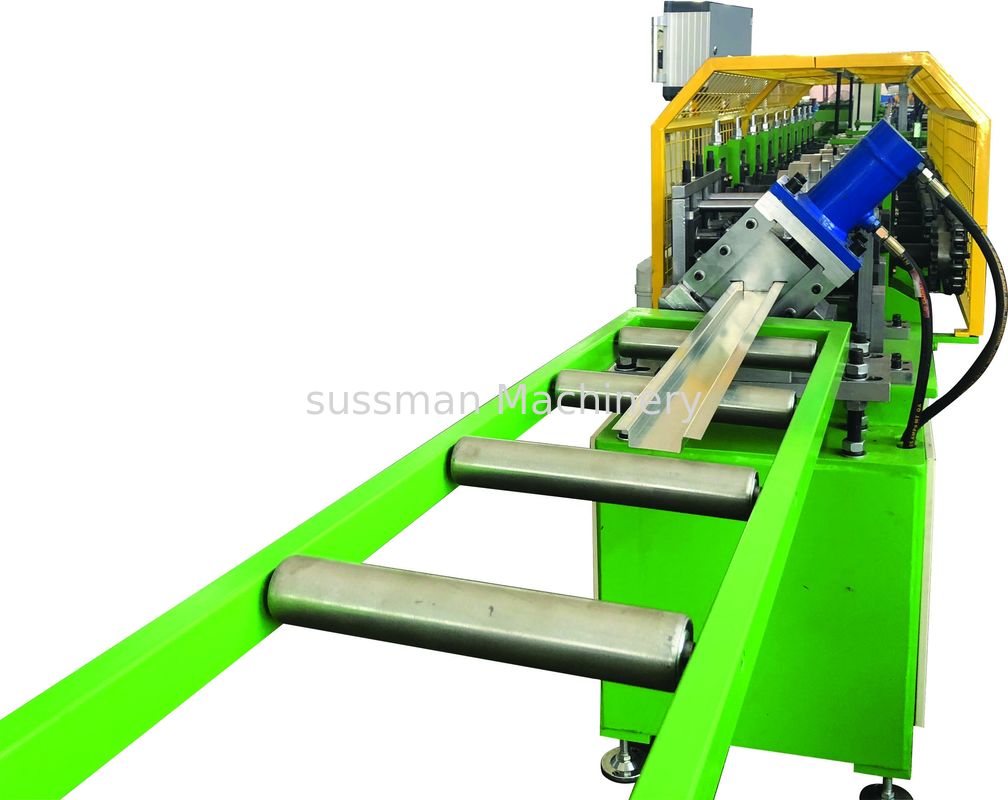

5. Machine Photo

Galvanized Steel Roof Batten Cold Roll Forming Machine with Hydraulic Cutting

Galvanized Steel Roof Batten Cold Roll Forming Machine with Hydraulic Cutting



Galvanized Steel Roof Batten Cold Roll Forming Machine with Hydraulic CuttingGalvanized Steel Roof Batten Cold Roll Forming Machine with Hydraulic CuttingGalvanized Steel Roof Batten Cold Roll Forming Machine with Hydraulic CuttingGalvanized Steel Roof Batten Cold Roll Forming Machine with Hydraulic Cutting


6.Our After-Sales Service Commitments



Sussman hereby solemnly promises: We implement the “three guarantees” service policy for any equipment sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of the equipment, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipment, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts

The detailed measures are as follows:

1.Guidelines for installation and commissioning of equipment:

Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipment, and provide Buyer with answers to their questions and related issues;



2.Provide training for operation and maintenance personnel:

Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;

a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;

b) When Sussman is doing the installation and test running of the equipment for the Buyer, the Buyer can send their personnel to participate.



3.If failure occurs in any of the machines during the “three guarantees” period(one year), then, upon the Buyer’s request, Sussman will eliminate the failure;



4. Sussman will inform all its Buyers about any upgrades and significant product improvements. Sussman will provide equipment modifications based on their costs. Sussman will provide Buyers with high-quality after-sales services in a careful and responsible attitude, provide very strong guarantee for the Buyer’s normal production.

We provide quick and satisfactory customer service, and promise to respond within 24 hours after receiving your complaints by phone or email
