Galvanized Steel C Shaped Purlin Cold Roll Forming Equipment With PLC Panasonic
  • Galvanized Steel C Shaped Purlin Cold Roll Forming Equipment With PLC Panasonic
  • Galvanized Steel C Shaped Purlin Cold Roll Forming Equipment With PLC Panasonic
  • Galvanized Steel C Shaped Purlin Cold Roll Forming Equipment With PLC Panasonic
  • Galvanized Steel C Shaped Purlin Cold Roll Forming Equipment With PLC Panasonic

Galvanized Steel C Shaped Purlin Cold Roll Forming Equipment With PLC Panasonic

Place of Origin Wuxi, China
Brand Name suhang
Certification CE, SGS, ISO
Model Number RF-SH
Product Details
Material Thickness:
1.5-3.5mm
Forming Speed:
10-20m/min
Main Motor Power:
15Kw
Hydraulic Cutting Power:
5.5Kw
Shaft Diameter:
80mm
Power Supply:
380V, 50Hz, 3Phase
Place Of Orgin:
Wuxi, China
Roller Stations:
18 Stations
Machine Color:
Blue And Yellow ( Or As Per Requirement)
Warranty:
12 Months
High Light:

metal forming machine

,

plate rolling machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Film and steel
Delivery Time
60 days after deposit
Product Description

2016 Popular Sell! Galvanized Steel C Shaped Purlin Cold Roll Forming Machine with PLC Panasonic





1. Technical Parameter



  Processing material: Aluminum plating zinc/galvanized steel/colored steel coil
2 Material thickness: 1.5-3.5mm
3 Capacity: 10-20m/min
4 The weight: 2-8 ton
5 Main motor power: 15kw
6 Pump power: 5.5kw
7 Shaft diameter: 80mm
8 Forming steps: 9+13+2 steps
9 Roller material: bearing steel
11 Main frame: 400H steel
12 Control system: PLC computer control with inverter
13 Power supply: 380V, 3 Phase, 60Hz(as requirement)
14 size(Length*Width*Height): 1.5*0.5*0.7m-12*5.3*2.5m
15 Warranty

14 months



2. Working Process



Decoiler- Punching- Roll Forming- Outer Table

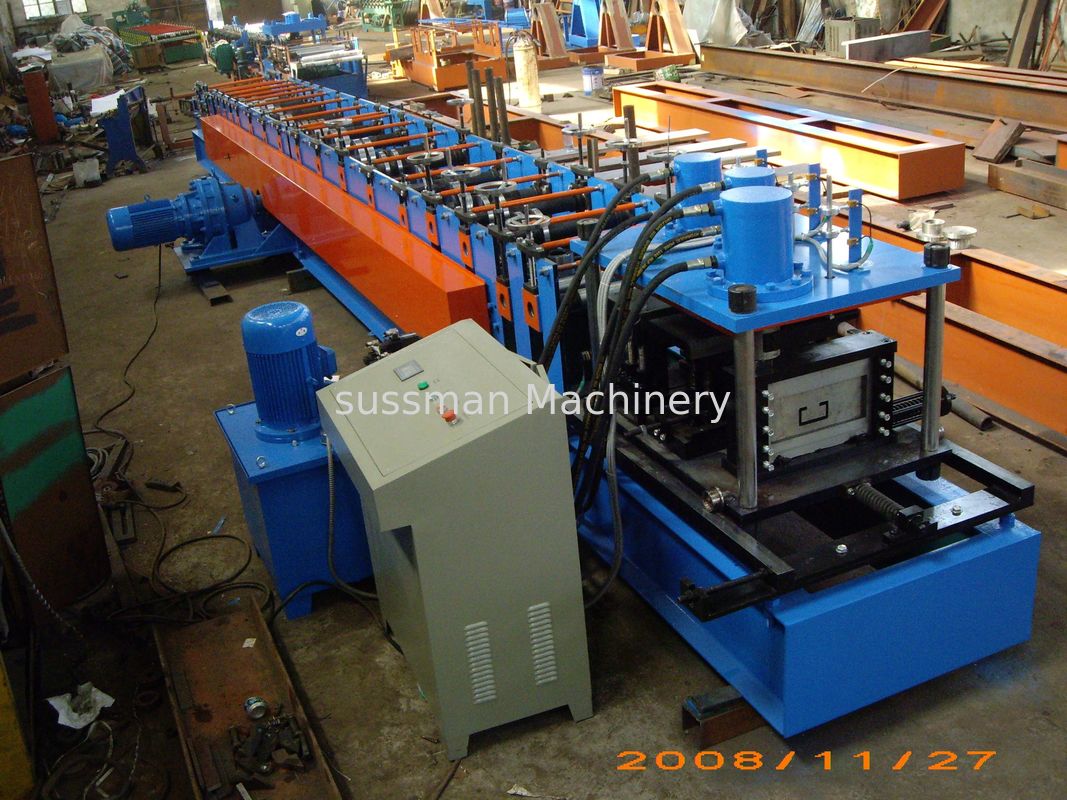

3. Machine Photo



Galvanized Steel C Shaped Purlin Cold Roll Forming Equipment With PLC Panasonic 0

Galvanized Steel C Shaped Purlin Cold Roll Forming Equipment With PLC Panasonic 1



4. Company Introduction

Sussman Machinery (wuxi) Co., Ltd. is a comprehensive enterprise combining production, sales and services. We are mainly engaged in providing machineries and equipments.

Owing to a professional teamwork, we are experienced in manufacturing, import and export, customers' design, installation and test, Galvanized Steel C Shaped Purlin Cold Roll Forming Equipment With PLC Panasonic 2technical solution and after-sale services. We have shipped out our machines to more than 70 countries, and keep good business relationships with a large amount of worthy customers, contributing to our great business records and reputation.

We have our customers in different districts and continents. We sell products in the Middle East, Turkey, East Europe, Russia, South and East Asia and South America. Our factories are in Wuxi, which is just 100 km from Shanghai, just 45 min by the fast train. We have rich technology in design and manufacture for different requirements.

Our goal is to supply high quality products. We also try to guarantee timely delivery, all around services at reasonable cost. We have already established favorable relationships with many clients around the world. Working to extend our presence internationally, we are looking forward to cooperating with your company for mutual benefit. Please feel free to contact us.
