Galvanized Steel Square Gutter Roll Forming Equipment Large Span ISO Approval

China Galvanized Steel Square Gutter Roll Forming Equipment Large Span ISO Approval supplier
Galvanized Steel Square Gutter Roll Forming Equipment Large Span ISO Approval supplier Galvanized Steel Square Gutter Roll Forming Equipment Large Span ISO Approval supplier Galvanized Steel Square Gutter Roll Forming Equipment Large Span ISO Approval supplier

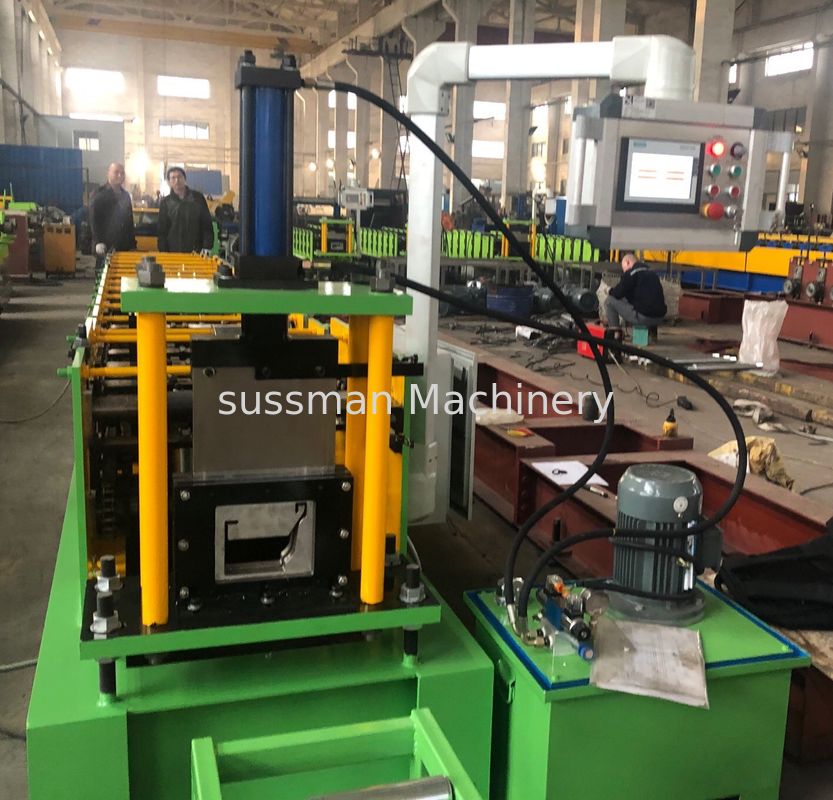

Large Image :  Galvanized Steel Square Gutter Roll Forming Equipment Large Span ISO Approval

Product Details:

Place of Origin: Jiangsu, China
Brand Name: SUSSMAN
Certification: CE, SGS, ISO
Model Number: RF-GT

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Contact Now
Detailed Product Description
Raw Material: Galvanized Steel Sheet Material Thickness: 0.3-0.6mm
Roller Stations: 13 Stations Roller Material: 45# Steel, Coated With Chrome
Shaft Diameter: 70mm

Fully Automatic High Speed Galvanized Steel Square Gutter Cold Roll Forming Machine





Functional Features :

1.Our machine can use galvanized steel sheet,colored armor plate or aluminum plate as the material

plate.

2.Controlling by computer,PL display,operationis easy,running is steady and reliable,endurable,

maintence-free.

3.We can make and design what kinds of roll forming machine according to the request of customers.

4. OEM / ODM ,Customers` Design ,Size,Color&Logo are accepted.

5. Prompt Delivery&Competitive Price

6. Main markets: Middle East, Turkey, East Europe, South America, Africa,South and east Asia, Russia

etc.

7. After-sales service:

1.We provide the technical support for whole life of our machines.

2.If buyers need the technician to go abroad ,we will arrange the technician,but the buyers should

take all the cost,including visa,roundtrip tick





Roll forming machine
Rolling speed 15-20m/min(not include cutting time)
Rolling thickness 0.3-0.6mm
Raw material Galvanized steel sheet
dimension 5500×1600×1500(mm)
Effective width
Roller stations 15 stationsOne stage for embossing
Roller material 45#forge steel, coated with chrome
Shaft diameter Φ70mm,material is 45# forge steel
Transmission By chain1 inch
Material of chain 45# forged steel with frequency quenching, 12A
Material of cutting Cr12Mov with quench HRC58-62°
Tolerance 6m+-1.5mm
Frame H type steel



Products



Galvanized Steel Square Gutter Roll Forming Equipment Large Span ISO ApprovalGalvanized Steel Square Gutter Roll Forming Equipment Large Span ISO ApprovalGalvanized Steel Square Gutter Roll Forming Equipment Large Span ISO Approval



Transportation



All goods will be shipped to your country, containers number will be decided with how many machines would you choose



Installation of the machine



The individual components of the machine are installed according to the layout and prepared for the commissioning.

The installation comprises of:

- Installation by Sussman service technicians.

- The following services are included:

- Installation of the machine components.

- Adjustment of the machine components.

- Connection of all motors to the control cabinet.

- Installation of the required safety devices.

Delivery extent does not comprise of:

- Media supply (electrics, compressed air, etc.)to the machine(control cabinet)

- Raw material,process material and fuels

- Raw material for test blocks

- Transport and lifting devices

- Auxiliary staff.

The operators of the plant should be present during the installation in order to become familiar with the new machines.



Commissioning of the machine



The components of the machine are commissioned one after the other. At the end of the commissioning the machine is ready for production and is handed over.

The commissioning comprises:

- Commissioning by Sussman service technicians

- Training at the machine

- The following services are rendered

- Run up of the machine components

- Testing of all functions of the machine components

- Start of a fully automatic molding process

- Execution of machine acceptance

Delivery extent does not comprise of:

- Raw materials, process materials and consumables

- Raw material for test blocks

- Transport and lifting devices

The operators of the plant should be present during the commissioning in order to become familiar with the new machines.



Our After-Sales Service Commitments



Sussman hereby solemnly promises: We implement the “three guarantees” service policy for any equipment sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of the equipment, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipment, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts

The detailed measures are as follows:

1.Guidelines for installation and commissioning of equipment:

Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipment, and provide Buyer with answers to their questions and related issues;



2.Provide training for operation and maintenance personnel:

Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;

a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;

b) When Sussman is doing the installation and test running of the equipment for the Buyer, the Buyer can send their personnel to participate.



3.If failure occurs in any of the machines during the “three guarantees” period(one year), then, upon the Buyer’s request, Sussman will eliminate the failure;



4. Sussman will inform all its Buyers about any upgrades and significant product improvements. Sussman will provide equipment modifications based on their costs. Sussman will provide Buyers with high-quality after-sales services in a careful and responsible attitude, provide very strong guarantee for the Buyer’s normal production.

We provide quick and satisfactory customer service, and promise to respond within 24 hours after receiving your complaints by phone or email



Quality Control

1.We strictly control the quality of raw materials and we can offer inspection certificate of our raw materials for you.
2. We do manufacturing strictly according to the technological processes. Besides, we carry out sampling inspection for our products.
3. All of our workers have received relevant quality management training so that the quality of products can be ensured.
Our goal is to offer the best solution for our customers, supply high quality machine and good service with reasonable price. We sincerely hope to cooperate with worldwide customers for mutual success.





FAQ

1) Q: Are you manufacturer or trading company?
A: We are manufacturer and trading company .

2) Q: Do you provide installing and training overseas?
A: Overseas machine install and worker training services are optional.

3) Q: How is your after sales support?
A: We provide technical support on line as well as overseas services by skillful technicians.



4) Q: How does your factory do regarding quality control?
A: There is no tolerance regarding quality control. Quality control complies with ISO9001. Every machine has to past testing running before it's packed for shipment.

5) How can I trust you that machines pasted testing running before shipping?
A: 1) We record the testing video for your reference. Or,
2) We welcome your visit us and test machine by yourself in our factory.

6) Q: Do you sell only standard machines?
A: No. Most machines are made to order.
