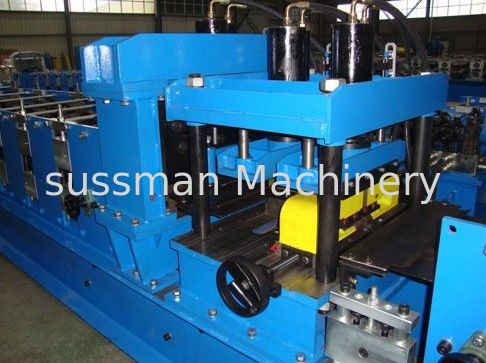

Galvanized Steel CZ Purlin Roll Forming Machine Hydraulic Hole Punching CE Standard
  • Galvanized Steel CZ Purlin Roll Forming Machine Hydraulic Hole Punching CE Standard
  • Galvanized Steel CZ Purlin Roll Forming Machine Hydraulic Hole Punching CE Standard
  • Galvanized Steel CZ Purlin Roll Forming Machine Hydraulic Hole Punching CE Standard
  • Galvanized Steel CZ Purlin Roll Forming Machine Hydraulic Hole Punching CE Standard

Galvanized Steel CZ Purlin Roll Forming Machine Hydraulic Hole Punching CE Standard

Place of Origin china
Brand Name Sussman
Certification CE ISO 9001
Model Number SS-AB
Product Details
Name:
Angle Steel Roll Forming Machine
Material:
Galvanized Steel
Material Thickness:
0.6-1mm
Forming Stations:
16 Stations
Roller Material:
Cr40 Steel With Quenching
Dirve System:
Chain Drive
Power Supply:
380V, 50Hz, 3Phase
Forming Speed:
10-12m/min
Machine Weight:
About 5 Tons
Main Motor Power:
5.5 KW
High Light:

c purlin roll forming machine

,

c z purlin roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1set
Price
negotiable
Packaging Details
steel +film
Delivery Time
60-90 days
Payment Terms
L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability
10 set per month
Product Description

Hydraulic Hole Punching Galvanized Steel L shape Profile Angle Bar Roll forming Machine With 3mm thickness



Main Components


Machine list 3 ton passive de-coiler 1 set
Feeding with guide 1 set
Main roll forming machine 1 set
PLC Control box 1 unit
Hydraulic station 1 unit
Stop cutting device 1 unit
Hydraulic punching device 1 unit
Out table

2 units





Technical Parameter




Items

Specifications

Material of coil

Material Thickness

mm galvanized

De-coiler

Weight

3 ton manual

Forming system

Rolling Speed

5-10m/min not including cutting stop time

Roller Stations

About 13 stations forming

Roller Material

Gcr15 Steel with quenching

Shaft Material

45# Steel Diameter 75mm shaft

Maim Motor Power

7.5kw

Hydraulic cutting Power

5.5kw

Cutting
system

Material Of Cutting

CR12 with quench treatment

Hardness

HRC58-62

Tolerance

+-1.5mm

Cutting blade

1 set of cutting blade

Electrical control system

Electric Source

380V, 50HZ,3 phase

Control System

PLC with touch screen Japanese Panasonic and Yaskawa Brand



Weight

About 4 tons



Way Of Drive

1.2 inch single chain



Size of machine

Length 6500mm* Width 800mm* Height 1000m



Working Flow of Roll Forming Machine


feedingwithguide—Rollforming——Cutting—Products collecting
