CE Certification Downpipe Roll Forming Machine , Precise Gutter Making Machine

China CE Certification Downpipe Roll Forming Machine , Precise Gutter Making Machine supplier
CE Certification Downpipe Roll Forming Machine , Precise Gutter Making Machine supplier CE Certification Downpipe Roll Forming Machine , Precise Gutter Making Machine supplier

Large Image :  CE Certification Downpipe Roll Forming Machine , Precise Gutter Making Machine

Product Details:

Place of Origin: China (Mainland)
Brand Name: SUSSMAN
Certification: CE. ISO. SGS
Model Number: SS-DS

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard package with film, plastic and steel wire.
Delivery Time: 63 working days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Material: Galvanized Cold Steel Sheet Material Thickness: 0.3-2mm
Forming Stations: About 20 Stations Roller Material: 45# Steel With 60mm Shaft
Dirve System: Chain Drive System Power Supply: 380V, 50Hz, 3Phase
Forming Speed: 12-15m/min

Downspout pipe roll forming machine



1.Technical Parameter









Item NO.





Description





Offered Specification



1.0

Roll forming machine



1.1

Rolling speed 12-15m/min



1.2

Rolling thickness 0.3-2mm



1.3

Raw material Galvanized cold steel sheet



1.4

dimension 3500mm×1600mm×1500mm



1.5

Effective width 60mm
1.6 Roller stations

20 stations One stage for embossing





1.7

Roller material 45#forge steel, coated with chrome



1.8

Shaft diameter Φ70mm ,material is 45# forge steel



1.9

Transmission By chain 1 inch



1.10

Material of chain 45# forged steel with frequency quenching, 12A



1.11

Material of cutting Cr12Mov with quench HRC58-62°



1.12

Tolerance 6m+-1.5mm



1.13

Frame H type steel







2.Main Components







Serial No.



Commodity & Description



Quantity



1

3 Tons manual DE-coiler 1 set



2

Infeed guiding divice 1 set



3

Main forming machine 1 set



4

straighten device 1 set



5

Hydraulic cutting equipment 1 set



6

Output tables 2 sets



7

Main drive system 1 set



8

Hydraulic system 1 set



9

Controlling system (including cabinet) 1 set



10

Downpipe elbow forming machine 1 set



11

seaming machine 1 set









3.Working Flow of Roll Forming Machine





De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table



A. Passive Decoiler..........................................................To load and uncoiling material

B. Servo Feeding Applicator............................................To feed the material accurately

C. Hydraulic/Press Punching...........................................To punch as requirements

D. Roll Forming Unit.........................................................To roll form as requirements

E. Hydraulic Cutting.........................................................To cut sheets as desired length


CE Certification Downpipe Roll Forming Machine , Precise Gutter Making Machine

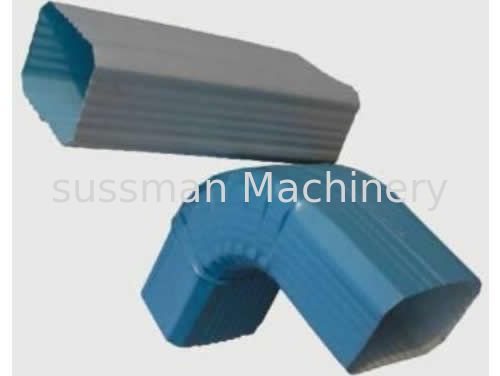

4.Main Profile of Product







Galvanized cold steel sheet downspout pipe roll forming machine











5.Photo Gallery









CE Certification Downpipe Roll Forming Machine , Precise Gutter Making Machine





6. FAQ

1). Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
Besides, the width is adjustable.

2). Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

3). How to visit your company?
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Wuxi Station (30 minutes), then we can pick up you.

4). What can you do if the machine broken?
Our machines' warranty period is 12 months, if the broken parts can't repair, we will send the new parts replace the broken parts for free, but you need pay the express cost If after warranty period, we can through negotiation to solve the problems, and we supply the technical support for the whole life of the machine.

5). Can you be responsible for transport?
Yes, please tell me the destination port or address. we have rich experience in transportation.

6). You are trade company or factory?
We are factories.

7). Why your price is higher than others?
As we persist on that factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem.

8). How long the machine could be made?
Normally speaking, deck floor roll forming machine could be made about 60 working days. If you need machines in a hurry, we can try it short time.
