Rain Downspout Pipe Roll Forming Machine Material Thickness 0.3 - 0.6mm
  • Rain Downspout Pipe Roll Forming Machine Material Thickness 0.3 - 0.6mm
  • Rain Downspout Pipe Roll Forming Machine Material Thickness 0.3 - 0.6mm
  • Rain Downspout Pipe Roll Forming Machine Material Thickness 0.3 - 0.6mm
  • Rain Downspout Pipe Roll Forming Machine Material Thickness 0.3 - 0.6mm

Rain Downspout Pipe Roll Forming Machine Material Thickness 0.3 - 0.6mm

Place of Origin China (Mainland)
Brand Name SUSSMAN
Certification CE. ISO. SGS
Model Number SS-DS
Product Details
Material Thickness:
0.3mm-0.6mm
Forming Stations:
About 20 Stations
Roller Material:
45# Steel
Dirve System:
Chain Drivving
Power Supply:
380V, 50Hz, 3Phase
Forming Speed:
Up To10-15m/min
High Light:

plate rolling machine

,

tube roll forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard package with film, plastic and steel wire.
Delivery Time
63 working days after deposit
Payment Terms
L/C, T/T, Western Union
Supply Ability
11 sets per month
Product Description

Downspout pipe roll forming machine



1.Technical Parameter









Item NO.





Description





Offered Specification



1.0

Roll forming machine



1.1

Rolling speed 10-15m/min



1.2

Rolling thickness 0.3mm-0.6mm



1.3

Raw material Galvanized steel sheet



1.4

dimension 3500*1600*1500mm



1.5

Effective width 60mm
1.6 Roller stations

20stations One stage for embossing





1.7

Roller material 45#forge steel, coated with chrome



1.8

Shaft diameter Φ70mm ,material is 45# forge steel



1.9

Transmission By chain 1 inch



1.10

Material of chain 45# forged steel with frequency quenching, 12A



1.11

Material of cutting Cr12Mov with quench HRC58-62°



1.12

Tolerance 6m+-1.5mm



1.13

Frame H type steel







2.Main Components







Serial No.



Commodity & Description



Quantity



1

3 tons manual de-coiler 1 set



2

Infeed guiding 1 set



3

Main roll forming machine 1 set



4

Straighten device 1 set



5

Hydraulic cutting equipment 1 set



6

Output table 2 sets



7

Main drive 1 set



8

Hydraulic system 1 set



9

Controlling system (including cabinet) 1 set



10

Downpipe elbow forming machine 1 set



11

seaming machine 1 set











3.Working Flow of Roll Forming Machine



A. Passive Decoiler..........................................................To load and uncoiling material
(We also have Electric Decoiler and Hydraulic Decoiler to hold the heavy material.)

B. Servo Feeding Applicator............................................To feed the material accurately

C. Hydraulic/Press Punching...........................................To punch as requirements

D. Roll Forming Unit.........................................................To roll form as requirements

E. Hydraulic Cutting.........................................................To cut sheets as desired length
(We also have non-stop hydraulic cutting system.)

F. Output Table................................................................Support the finished products





De-coiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table





Rain Downspout Pipe Roll Forming Machine Material Thickness 0.3 - 0.6mm 0







4. Advantage for Roll Forming Machine



1). Factory Reasonable Price



2). High Best Quality



3). 12 Months Warranty



4). More Than 10 Years Experience



5). Durable



6). Afrer-sales service







5. Standard Profile of Product





Galvanized cold steel sheet downspout pipe roll forming machine

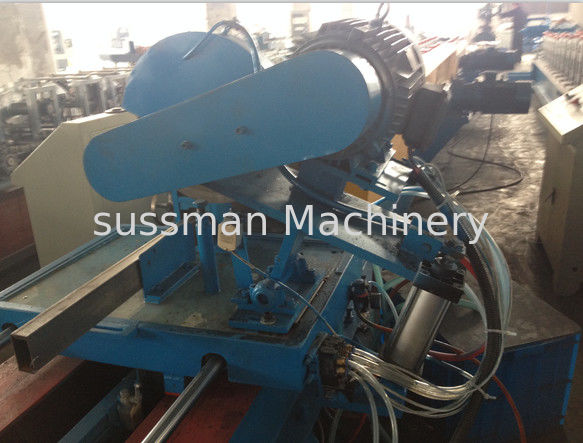

6. Photo Gallery



Rain Downspout Pipe Roll Forming Machine Material Thickness 0.3 - 0.6mm 2







7. Loading picture



Galvanized cold steel sheet downspout pipe roll forming machine







8. Company Profile





   Sussman Machinery (wuxi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 10 years before, it always designs and produces various type profile

of roll forming machine.

       The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down

Pipe forming machine, the whole carriage plate for car beam unit, Steel storage unit, etc. The products

are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other

construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and

steel production enterprises' growing demands.
