Door Frame Roll Forming Machine
>
|
|
| Place of Origin | China |
| Brand Name | SUSSMAN |
| Certification | SGS.CE.ISO |
| Model Number | SS-DF |

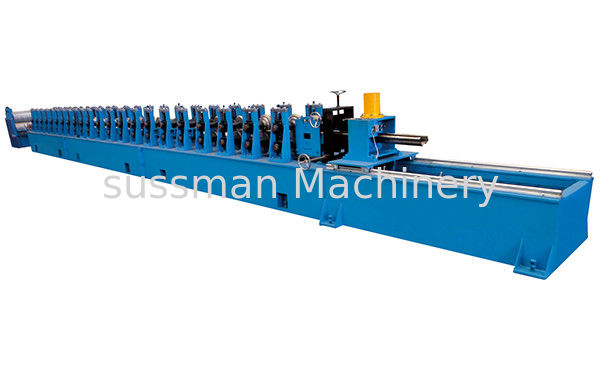

Door frame roll forming machine
Technical Parameter
|
Items |
Specifications |
|
|
Material of coil |
Material Thickness |
1.0-3.0 mm |
|
Un Coiler |
5 T manual |
|
|
Forming system |
Rolling Speed |
12-15 m per min |
|
Roller Stations |
About 18 stations |
|
|
Roller Material |
Gcr15 coated with chrome |
|
|
Shaft diameter |
65mm |
|
|
Maim Motor Power |
11kw |
|
|
Pinching motor |
2.2kw |
|
|
Motor cutting Power |
7.5kw |
|
|
Cutting system |
Material Of Cutting |
CR12mov with quench treatment |
|
Hardness |
HRC58-62 |
|
|
Tolerance |
+-1.5mm |
|
|
Cutting blades |
3 sets |
|
|
Electrical control system |
Electric Source |
380V, 50HZ,3 phase |
|
Control System |
PLC (Panasonic) as list in the note |
|
|
|
Weight |
About 8 tons |
|
|
Way Of Drive |
Gearbox |
Main Components
|
5 ton passive de-coiler |
1 set |
|
Leveller |
1 set |
|
Punching |
4 sets |
|
Main roll forming machine |
1 set |
|
PLC Control box |
1 unit |
|
Hydraulic station |
1 unit |
|
Out table |
2 units |
Working Flow of Roll Forming Machine
Decoiler—→Level device —→Main roll forming machine—→Hydraulic cutting—→ Run out table
Main Profile of Product
Photo Gallery
Company Profile
Sussman machinery is located in Wuxi city, Jiangsu province which is close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.
Sussman Machinery (wuxi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 10 years before, it always designs and produces various type profile
of roll forming machine.
The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down
Pipe forming machine, the whole carriage plate for car beam unit, Steel storage unit, etc. The products
are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other
construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and
steel production enterprises' growing demands.
