Payment & Shipping Terms:
|Material Thickness:||0.7-1.2mm||Forming Speed:||9 M/min|
|Main Motor Power:||7.5Kw||Forming Stations:||12 Stations|

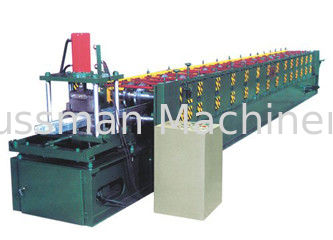

Fly Saw Door 12 Stations Roll Forming Machine PLC Control System
Door Rail Technical Parameter
1. Number of forming groups: 12groups
2. The machine material: welding comprise of 12 square tube
3. The wallboard: processing compose of 20mm steel plate
4. The mold: The mold is made of Gcr12mov steel, processed after rough turning, finish turning, finish grinding,
hard chrome plating to ensure that the mold no deformation, glabrous, wearable and accurate.
5. The shaft: The shaft is made of 45#steel, diameter of 38mm, finish turning, finish grinding after heat
treatment, quenching and high temperature tempering.
6. The bearing: Harbin type 6207
7. The roll material: 0.7-1.0mm color steel sheet, galvanized steel sheet, aluminium sheet, expansion
material 125mm, ejection of compact effective area is 88-90mm.
8. Motor: 4kw * 1 set (380v)
9. Transmission: 1.0 inch chain
10. Discharge rack: 1 set
11. Machine feature: PLC NC frequency electrical boxes, touch screen`s display, the encoder counting,
the length and quantity of the material is controllable, accuracy with in 1.0mm, automatic hydraulic cut.
Door Rail Main Components
3T passive un-coiler
Feeding and leveling device
Main roll forming machine 12 stations drived by chain
Control system (including control box)
Water cooling system
Advantage for Door Rail
1. Reasonable Price
2. High Quality
3. More Than 10 Years Experience
Working Flow of Door Rail
Decoiler----Feeding and Leveling---Roll forming---Cutting---Run out tables
Profiles of Door Rail
