Durable C Purlin Roll Forming Machine C Type Purlin Roll Making Machine

China Durable C Purlin Roll Forming Machine C Type Purlin Roll Making Machine supplier
Durable C Purlin Roll Forming Machine C Type Purlin Roll Making Machine supplier Durable C Purlin Roll Forming Machine C Type Purlin Roll Making Machine supplier

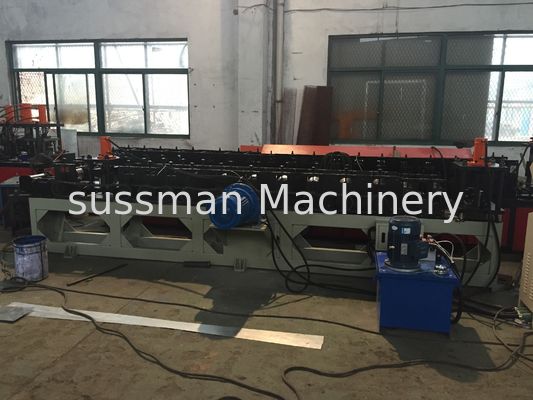

Large Image :  Durable C Purlin Roll Forming Machine C Type Purlin Roll Making Machine

Product Details:

Place of Origin: Wuxi, China
Brand Name: Sussman
Certification: CE, SGS, ISO
Model Number: SS-CP

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard package with film, plastic and steel wire. (or customized)
Delivery Time: 60 working days after deposit
Supply Ability: 10 sets/month
Contact Now
Detailed Product Description
Material Thickness: 0.5-3mm Forming Speed: 15m/ Min
Forming Stations: 18 Stations Material: Galvanized Steel
Roller Material: Cr40 Steel With Quenching Hydraulic Power: 5.5KW

Automatic C Type Purlin Roll Forming Machine







Technical Parameter







Items

Specifications



Material of coil

Material Thickness

0.5-3mm





Un Coiler

3 tons manual



Forming system

Rolling Speed

10-15 m/min





Roller Stations

18 stations





Roller Material

Gcr15 coated with chrome





Maim Motor Power

11kw





Motor cutting Power

5.5kw



Cutting system

Material Of Cutting

CR12mov with quench treatment





Hardness

HRC58-62





Tolerance

+-1.5mm





Cutting blades

3 sets

Electrical control system

Electric Source

380V, 50HZ,3 phase

Also can satisfy Customer’s require





Control System

PLC (Panasonic) as list in the note





Weight

12 tons





Way Of Drive

1.5 inch double chain







 Machine List




Machine list 3 ton passive de-coiler 1 set
Feeding with guide 1 set
Main roll forming machine 1 set
PLC Control box 1 unit
Hydraulic station 1 unit
Stop cutting device 1 unit
Safety cover 1 unit
Out table 2 units








Advantage of Machine





1. Reasonable Price



2. High Quality



3. 12 Months Warranty



4. More Than 10 Years Experience



5. Durable



6. Reliable







Working Flow of Roll Forming Machine



A.Passive Decoiler..........................................................To load and uncoiling material
(We also have Electric Decoiler and Hydraulic Decoiler to hold the heavy material.)


B.Servo Feeding Applicator............................................To feed the material accurately


C.Hydraulic/Press Punching...........................................To punch as requirements


D.Roll Forming Unit.........................................................To roll form as requirements


E.Hydraulic Cutting.........................................................To cut sheets as desired length
(We also have non-stop hydraulic cutting system.)


F.Output Table................................................................Support the finished products



Uncoiling—Feeding&Leveling--Roll forming—Cutting—Products collecting





Durable C Purlin Roll Forming Machine C Type Purlin Roll Making Machine









Profile of product







Manufactorer on promotion fully automatic C purlin roll forming machineManufactorer on promotion fully automatic C purlin roll forming machine

Manufactorer on promotion fully automatic C purlin roll forming machine







Photo Gallery





Durable C Purlin Roll Forming Machine C Type Purlin Roll Making Machine



Loading pictures



Manufactorer on promotion fully automatic C purlin roll forming machine
