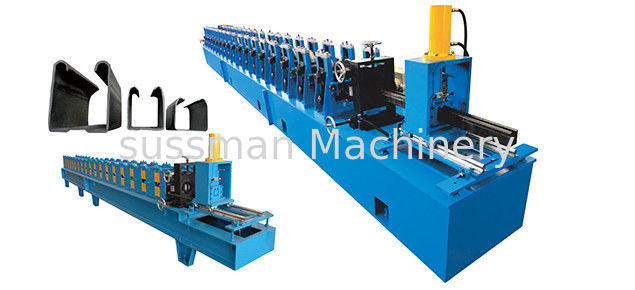

3 Tons Hydraulic Cutting Stud And Track Roll Forming Machine 13 Roller Stations
  • 3 Tons Hydraulic Cutting Stud And Track Roll Forming Machine 13 Roller Stations
  • 3 Tons Hydraulic Cutting Stud And Track Roll Forming Machine 13 Roller Stations
  • 3 Tons Hydraulic Cutting Stud And Track Roll Forming Machine 13 Roller Stations
  • 3 Tons Hydraulic Cutting Stud And Track Roll Forming Machine 13 Roller Stations

3 Tons Hydraulic Cutting Stud And Track Roll Forming Machine 13 Roller Stations

Place of Origin Wuxi, China
Brand Name Sussman
Certification CE, SGS, ISO
Model Number SS-CU
Product Details
Forming Stations:
13 Stations
Material Thickness:
0.4-1.2mm
Roller Material:
GCr15, Coated With Chrome
Main Motor Power:
7.5Kw
Rolling Speed:
8-20m/min
Hydraulic Cutting Power:
4kw
High Light:

drywall stud roll forming machine

,

metal stud forming machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard package with film, plastic and steel wire. (or customized)
Delivery Time
Shipped in 60 working days after payment
Supply Ability
10 sets per month
Product Description

Drywall C U stud track frame roll forming machine







Technical Parameter



1. Roller stations: 13 stations

2. Rorming speed: 8--20 m/min

3. Material thcikness: 0.4-1.2mm

4. Roller material: GCr15, HRC55-60

5. Shaft diameter: 60mm

6. Shaft material: 45# steel

7. Main motor power: 7.5Kw

8. Hydraulic station: 4Kw

9. PLC: Panasonic

10. Machine size: 6000mmx 800mm x 900mm

11. Machine weight: 3 tons

12. Cutting blade material: Cr12Mov

13.  Drive way: 1 inch chain drive

14. Cutting: hydraulic cutting





Machine List



Machine list



3 ton passive de-coiler

1 set



Feeding with guide

1 set



Main roll forming machine

1 set



PLC Control box

1 unit



Hydraulic station

1 unit



Stop cutting device

1 unit



Safety cover

1 unit



Out table

2 units





Main features and components of the machine



1.Simple structure & beautiful appearance, because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation

when running the machine.

2.All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.

3.We adopt the automatic length- fixed forming and cutting to guarantee the length to be precise and the finished product clear without

deforming.

4. It is very easy to install the equipment and suitable for producing in the factory.

5. The machine has features of low noise and high efficiency.





Technological process



Decoiler—feeding with guide—Roll forming——Cutting—Products collecting





3 Tons Hydraulic Cutting Stud And Track Roll Forming Machine 13 Roller Stations 0







Profile of product





Full Automatic Steel Frame C U Stud Track Channel Forming Machine







Machine Photo





3 Tons Hydraulic Cutting Stud And Track Roll Forming Machine 13 Roller Stations 2







3 Tons Hydraulic Cutting Stud And Track Roll Forming Machine 13 Roller Stations 3







3 Tons Hydraulic Cutting Stud And Track Roll Forming Machine 13 Roller Stations 4



Loading pictures



Manufactorer on promotion fully automatic C purlin roll forming machine





Company Profile



Sussman Machinery (wuxi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 10 years before, it always designs and produces various type profile

of roll forming machine.

The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down

Pipe forming machine, the whole carriage plate for car beam unit, Steel storage unit, etc. The products

are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other

construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and

steel production enterprises' growing demands.

Sussman machinery is located in Wuxi city, Jiangsu province which is close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.





Our After-Sales Service Commitments



Sussman hereby solemnly promises: We implement the “three guarantees” service policy for any equipment sold by Sussman, provide free of charge installation guidelines, commissioning and maintenance of the equipment, training of the Buyer’s relevant Operators; and provide technical requirements for the installation and operation of the equipment, technical layout diagrams and other related information, provide a lifetime supply of maintenance and spare parts

The detailed measures are as follows:

1.Guidelines for installation and commissioning of equipment:

Based on the actual situation, to assist and guide the Buyer and Buyer’s technical personnel in the overall installation location, the installation of equipment, and provide Buyer with answers to their questions and related issues;



2.Provide training for operation and maintenance personnel:

Based on the Buyer’s request, Sussman will provide free of charge training of the operation and maintenance personnel;

a) The User (Buyer) can send their operation and maintenance personnel to our factory for learning and training;

b) When Sussman is doing the installation and test running of the equipment for the Buyer, the Buyer can send their personnel to participate.



3.If failure occurs in any of the machines during the “three guarantees” period(one year), then, upon the Buyer’s request, Sussman will eliminate the failure;
