Drywall C U stud track frame roll forming machine
Technical Parameter
1. Roller stations: 13 stations
2. Rorming speed: 8--20 m/min
3. Material thcikness: 0.4-1.2mm
4. Roller material: GCr15, HRC55-60
5. Shaft diameter: 60mm
6. Shaft material: 45# steel
7. Main motor power: 7.5Kw
8. Hydraulic station: 4Kw
9. PLC: Panasonic
10. Machine size: 6000mmx 800mm x 900mm
11. Machine weight: 3 tons
12. Cutting blade material: Cr12Mov
13. Drive way: 1 inch chain drive
14. Cutting: hydraulic cutting
Machine List
Machine list |
3 ton passive de-coiler |
1 set |
Feeding with guide |
1 set | |
Main roll forming machine |
1 set | |
PLC Control box |
1 unit | |
Hydraulic station |
1 unit | |
Stop cutting device |
1 unit | |
Safety cover |
1 unit | |
Out table |
2 units |
Main features and components of the machine
1.Simple structure & beautiful appearance, because we adopt the shape-steel structure and process as a whole after welding. It has the ability of strong loading and stable operation
when running the machine.
2.All the components of machine are from brand-famous enterprise so that they ensure the machine normal function very effectively.
3.We adopt the automatic length- fixed forming and cutting to guarantee the length to be precise and the finished product clear without
deforming.
4. It is very easy to install the equipment and suitable for producing in the factory.
5. The machine has features of low noise and high efficiency.
Technological process
A.Passive Decoiler..........................................................To load and uncoiling material
(We also have Electric Decoiler and Hydraulic Decoiler to hold the heavy material.)
B.Servo Feeding Applicator............................................To feed the material accurately
C.Hydraulic/Press Punching...........................................To punch as requirements
D.Roll Forming Unit.........................................................To roll form as requirements
E.Hydraulic Cutting.........................................................To cut sheets as desired length
(We also have non-stop hydraulic cutting system.)
F.Output Table................................................................Support the finished products
Decoiler—feeding with guide—Roll forming——Cutting—Products collecting
Profile of product

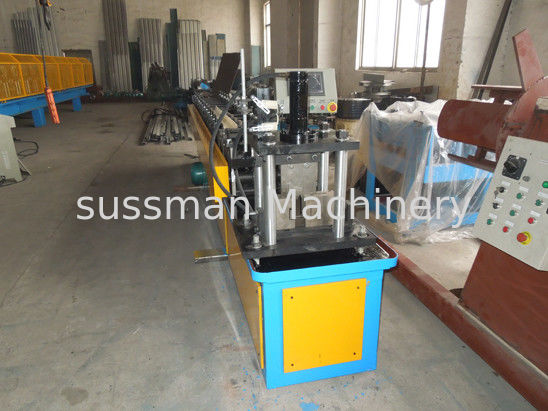

Machine Photo
Loading pictures
Company Profile
Sussman Machinery (wuxi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 10 years before, it always designs and produces various type profile
of roll forming machine.
The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down
Pipe forming machine, the whole carriage plate for car beam unit, Steel storage unit, etc. The products
are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other
construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and
steel production enterprises' growing demands.
Sussman machinery is located in Wuxi city, Jiangsu province which is close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.
