Touch Screen PLC Control Roof Gutter Making Machine Plate Roll Forming Machine
  • Touch Screen PLC Control Roof Gutter Making Machine Plate Roll Forming Machine
  • Touch Screen PLC Control Roof Gutter Making Machine Plate Roll Forming Machine
  • Touch Screen PLC Control Roof Gutter Making Machine Plate Roll Forming Machine

Touch Screen PLC Control Roof Gutter Making Machine Plate Roll Forming Machine

Place of Origin Wuxi Jiangsu China
Brand Name Sussman
Certification CCC, SGS, ISO9001, CE
Model Number SS-GU
Product Details
Forming Speed:
12-15m/ Min
Roller Material:
45# Steel With Quenching Shaft
Control System:
PLC With Touch Screen
Power Supply:
380V, 50Hz, 3Phase
Machine Weight:
About 10 Tons
Material:
Galvanized Steel Sheet
High Light:

pipe roll forming machine

,

plate rolling machine

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Standard package with film, plastic and steel wire. (or customized)
Delivery Time
Shipped in 60 working ays after payment
Payment Terms
L/C, T/T, Western Union
Supply Ability
10 sets per month
Product Description

Roof Gutter Roll Forming Machine









Technical Parameter







Item NO.



                 Description



             Offered Specification



1.0

Roll forming machine



1.1

Rolling speed 10-15m/min(not include cutting time)



1.2

Rolling thickness 0.3-0.6mm



1.3

Raw material Galvanized steel sheet



1.4

dimension 3500×1600×1500(mm)



1.5

Effective width 60mm
1.6 Roller stations

19 stations One stage for embossing





1.7

Roller material 45#forge steel, coated with chrome



1.8

Shaft diameter Φ70mm ,material is 45# forge steel



1.9

Transmission By chain 1 inch



1.10

Material of chain 45# forged steel with frequency quenching, 12A



1.11

Material of cutting Cr12Mov with quench HRC58-62°





1.12

Tolerance 6m+-1.5mm



1.13

Frame

H type steel










Main Components





No



Name



Quantity

1 3 ton passive de-coiler 1 set
2 Main roll forming machine 1 set
3 Control box 1 unit
4 Hydraulic station 1 unit
5 Out tables 2 units









Working Flow





A.Passive Decoiler..........................................................To load and uncoiling material
(We also have Electric Decoiler and Hydraulic Decoiler to hold the heavy material.)



B.Servo Feeding Applicator............................................To feed the material accurately


C.Hydraulic/Press Punching...........................................To punch as requirements


D.Roll Forming Unit.........................................................To roll form as requirements


E.Hydraulic Cutting.........................................................To cut sheets as desired length
(We also have non-stop hydraulic cutting system.)



F.Output Table................................................................Support the finished products







Decoiler ---- Feeding --- Levelling---  Cutting ---Roll forming--- Run out table





Touch Screen PLC Control Roof Gutter Making Machine Plate Roll Forming Machine 0









Profiles of  Gutter





CE and ISO approval roof gutter roll forming machine









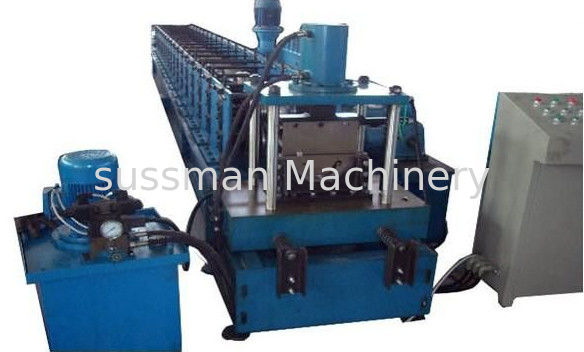

Machine Photo



Touch Screen PLC Control Roof Gutter Making Machine Plate Roll Forming Machine 2







Touch Screen PLC Control Roof Gutter Making Machine Plate Roll Forming Machine 3





Touch Screen PLC Control Roof Gutter Making Machine Plate Roll Forming Machine 4



Loading pictures





CE and ISO approval roof gutter roll forming machine
