Home ProductsStud And Track Roll Forming Machine

1mm Galvanized steel Stud and Track Roll Forming Machine Chain Transmission

Good quality Stud And Track Roll Forming Machine for sales
Good quality Stud And Track Roll Forming Machine for sales
We already bought more than 5 machines from Suhang Machinery, We are happy with their quality, their service and their company progress.

—— Dirk Sowma from Suriname

We got the CU purlin machines from Suhang machinery, this machine is very convenient to make 12 profiles in one machine, and the speed is very fast

—— Carlos Gomez from Columbia

Hi, thanks for Suhang Machinery, We bought the double layer roll forming machine from Suhang Mchinery, they supplied the good quality machines for us!

—— Diego Vergara from Ecuador

We are steel company, We boght slitting line and the wall angle machine from Suhang Machinery, the slitting machine is very stable and working well.

—— Fenton Chua from Philppines

We got the double layer machine from Suhang Machinery. The machine works very well.

—— Diego

We ordered 6 machines for the racking shelf, they work very well at our factory, We are very happy for Sussman Machinery's quality and service!

—— Matias from Costa Rica

We bought the drywall machine from Sussman Machinery. It can make 7 profiles in one machine, it is multi-fucntional, We are delight with this machine

—— Javier from Chile

The machine We bought about 3 years ago, it works well

—— Fernando from Portugal

We bought 5 machines from Sussman Machinery, We are very happy about their quality

—— Glenn from Australia

This is the first time We buy machine from China, We are happy We chosen an good factory, Many thanks to Sussman Team! We will buy more machines from them!

—— Jose Antonio from Chile

I'm Online Chat Now

1mm Galvanized steel Stud and Track Roll Forming Machine Chain Transmission

China 1mm Galvanized steel Stud and Track Roll Forming Machine Chain Transmission supplier
1mm Galvanized steel Stud and Track Roll Forming Machine Chain Transmission supplier 1mm Galvanized steel Stud and Track Roll Forming Machine Chain Transmission supplier 1mm Galvanized steel Stud and Track Roll Forming Machine Chain Transmission supplier 1mm Galvanized steel Stud and Track Roll Forming Machine Chain Transmission supplier

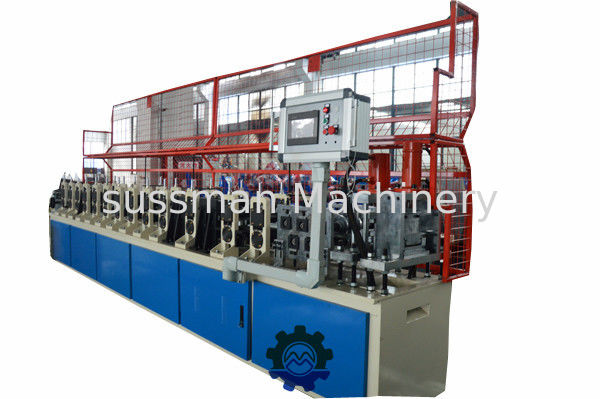

Large Image :  1mm Galvanized steel Stud and Track Roll Forming Machine Chain Transmission

Product Details:

Place of Origin: Wuxi, China
Brand Name: Sussman
Certification: CE, SGS, ISO
Model Number: RF-ST

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD25000-USD35000 Per set
Packaging Details: Film and steel
Delivery Time: 60 days after deposit
Supply Ability: 10 sets/month
Contact Now
Detailed Product Description
Material Thickness: 0.5-1.0mmG550 Galvanized Coils Roller Stations: About 13 Stations Forming
Roller Material: Gcr15 Steel With Quenching Shaft Material: 45# Steel Diameter 75mm Shaft
Machine Weight: About 2.5 Tons Machine Size: 3500mm X 500mm X 800mm
Rolling Speed: 10-12 M/min Hydraulic Cutting Power: 4kw
Tolerance: +-1.5mm Control System: PLC With Touch Screen
Way Of Drive: 1 Inch Single Chain

Material 1mm Galvanized Coils or Black Steel Top Hat Stud Roll Forming Machine Chain Transmission





C Stud and U track roll forming machine CU metal stud partition suspended ceiling machine



U shape carrying U track roll forming machine is to prudece the U type suspended material to for the steel structure roofing.If ceiling participation needs big loading ability or a large area building of the ceiling, U shape keel as the carrying keel is necessary. When installation, first U type bearing keel and then install (main keel) hanger which will be U-shaped main keel and the boom of connection, and then T bar participation.ust talking from ceiling partition, U shape keel is used widely. Same it also could be used as the bearing keel in drywall building.
The U shape carrying U track roll forming machine can be customized made aoccroding to speed, and whether the customer need the combined roll forming machine. Because the U track is used along with C stud and L wall protetor conrner bead, so the machine can be designed with one machine two molds, and one machine with two production lines.
According to the usage of the U track, the sizes will be different. So our U track roll forming machine could be used to make various sizes too by adjusting the spacer or fully automatic. Here are some drawing profiles for your reference:



Working Flow



Feeding with guide—Rollforming——Cutting—Products collecting



Machine list



3 ton passive decoiler 1 set
Main roll forming machine 1 set
PLC control box 1 unit
Hydraulic station 1 unit
Out table 2 units





C Stud and U track roll forming machine CU metal stud partition suspended ceiling machine



The U track roll forming machine is composed by the following elements: Decoiler, leveling beach, main roll forming machine, shearing system, PLC control system, hydraulic station and run out table.
1.For the Decoiler, you can choose manual Decoiler, motor Decoiler and hydraulic Decoiler.
2.For the leveling beach, we use 7 rollers three up and four down.
3.For the main roll forming machine:
Usage: In order to keep the product shape and precision, adopts welded sheet structure, motor reducer drive, gear transmission (the first and the last roller, the down roller should be attached with the upper one with the gear drive.), roller surfaces polishing, hard plating, heat treatment and galvanization treatment. The polished surface and the heat treatment towards the molds also can keep the molding plate surface smooth and not easy to be marked when it is being stamped.
Length of the main part: about 2900 800 1400
Weight of main part: 3 tons
Voltage: 380V/50HZ3Phase (as customer's request)
Roller fixer: Guide column
Frame: middle plate welded
Memorial arch frame type
Frame thickness: 25mm
Drive mode: gear
Material of rollers: GCr12MoV
Material of shafts: 45# steel with tempering
Diameter of shafts: φ40mm
Number of rollers: 8 rollers
Main power: 3kw
Cyclical planetary gear speed reducer)





please refer to below main body roll forming machine system:



C Stud and U track roll forming machine CU metal stud partition suspended ceiling machine





U track machine hydraulic cutting system:
Feature: Ensure stability, precision and cutting speed can be adjustable.
Function: Automatic cutting controlled by PLC, PLC brand is Taiwan Taida, also can set with other brands.
It adopts the hydraulic drive and automatic location to decide the dimension and cut the target products.
Material of blades: Gcr12 quenched
Power supply: hydraulic power
Frame: Pillar style with rack & pinion system
Stroke switch: non-contact photoelectric switch
Components: It contains one set of cutting tools, one hydraulic tank and one cutter machine.



C Stud and U track roll forming machine CU metal stud partition suspended ceiling machine



Contact Details
Sussman Machinery(Wuxi) Co.,Ltd

Contact Person: Charmy Chang

Tel: +8613606193016

Send your inquiry directly to us (0 / 3000)
