Technical Parameter
1.1 Roll Formimng speed: 8 m per min
1.2 Rolling thickness: 0.2-2.5 mm
1.3 Raw material: Galvanized cold steel sheet
1.4 dimension: 12000*1200*900mm about
1.5 Effective width: 200mm
1.6 Roller stations: about 18 stations
1.7 Roller material: 45# steel, coated with chrome, Quenching
1.8 Shaft diameter: Φ70mm ,material is 45# forge steel
1.9 Transmission: Gearbox
1.10 Material of chain: 45# forged steel with frequency quenching, 12A
1.11 Material of cutting: Cr12Mov with quench HRC58-62°
1.12 Cutting Tolerance: 6m+- 0.5mm
Main Components
3T Manual De-coiler | 1 set |
Leveling device | 1 set |
Servo feeding device | 1 set |
Press machine JH21-63 | 1 unit |
Main roll forming machine | 1 set |
Cutting holder | 1 set |
Hydraulic station | 1 set |
Control system ( including control box) | 1 set |
Out tables | 2 units |
Spare parts | 1 package |
Cutting dies | 1 set |
Punching die set | 1 set |

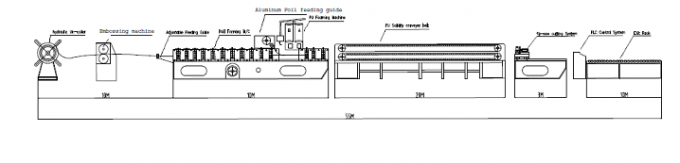

Roll Forming Machine Working Flow
Advantage for Roll Forming Machine
During the warranty period, maintain and change the spare parts for the customers for free (except for the instrument damage caused by human factors or natural disasters. ) And provide technical support for life-long.
We can design and manufacture the machine according to clients' request! Our machines have passed CE, Guaranteed quality. Please send us the enquiry with Profile Drawing.
Main profile drawing show

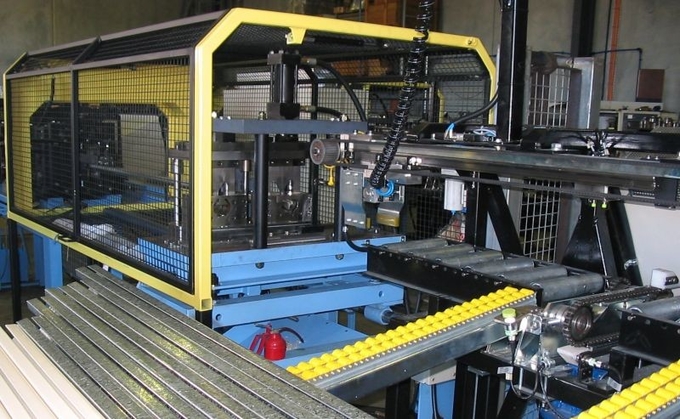

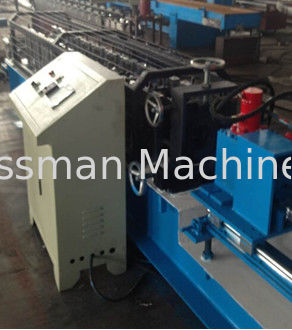

Photo Gallery
Company Profile
Sussman machinery is located in Wuxi city, Jiangsu province which is close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.
Sussman Machinery (wixi) Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 10 years before, it always designs and produces various type profile
of roll forming machine.
The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine, Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down
Pipe forming machine, the whole carriage plate for car beam unit, Steel storage unit, etc. The products
are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other
construction projects, Our factory can meet the construction enterprises, automobile industry, Iron and
steel production enterprises' growing demands.
