45# Forged Steel Roller Downspout Roll Forming Machine 3T Manual Uncoiler

China 45# Forged Steel Roller Downspout Roll Forming Machine 3T Manual Uncoiler supplier
45# Forged Steel Roller Downspout Roll Forming Machine 3T Manual Uncoiler supplier 45# Forged Steel Roller Downspout Roll Forming Machine 3T Manual Uncoiler supplier 45# Forged Steel Roller Downspout Roll Forming Machine 3T Manual Uncoiler supplier

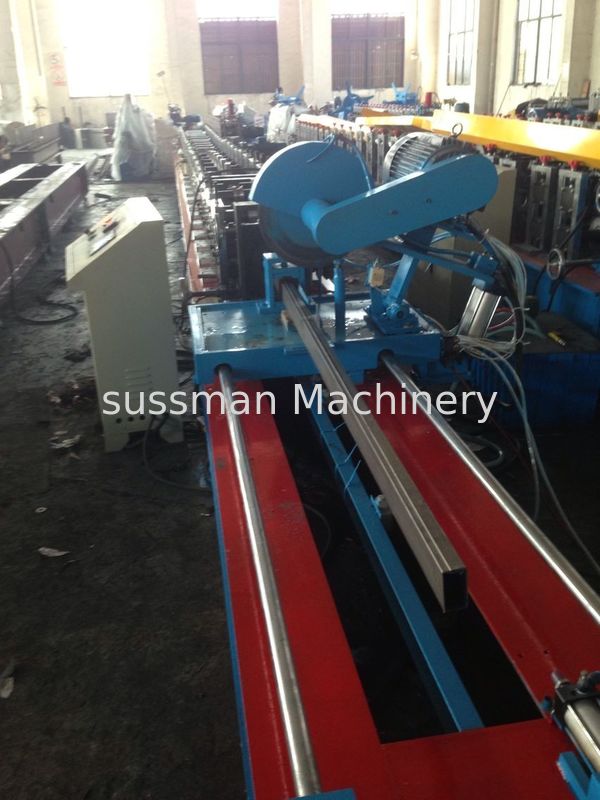

Large Image :  45# Forged Steel Roller Downspout Roll Forming Machine 3T Manual Uncoiler

Product Details:

Place of Origin: China (Mainland)
Brand Name: SUSSMAN
Certification: CE. ISO. SGS
Model Number: SS-DS

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard package with film, plastic and steel wire.
Delivery Time: 65 working days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Main Motor Power: 7.5KW Forming Speed: 15M/min
Control System: PLC With Touch Screen Roller Material: 45# Forged Steel
Main Axis Dia: ¢68mm Hydraulic Station Power: 4KW

Downspout pipe roll forming machine

Technical Parameter





Item NO.



Description



Offered Specification



1.0

Roll forming machine



1.1

Rolling speed Up 15m/min(not include cutting time)



1.2

Rolling thickness 0.3--3.0mm



1.3

Raw material Galvanized steel sheet



1.4

dimension 3500×1600×1500(mm)



1.5

Effective width 60mm



1.6

Roller stations

20 stations One stage for embossing





1.7

Roller material 45#forge steel, coated with chrome



1.8

Shaft diameter Φ70mm ,material is 45# forge steel



1.9

Transmission By chain 1 inch



1.10

Material of chain 45# forged steel with frequency quenching, 12A



1.11

Material of cutting Cr12Mov with quench HRC58-62°



1.12

Tolerance of cutting 6m+-0.5mm



1.13

Frame

H type steel









Main Components



3 tons manual de-coiler----------------------------------------------------------1 set


Infeed guiding----------------------------------------------------------------------1 set


Main roll forming machine--------------------------------------------------------1 set


Straighten device------------------------------------------------------------------1 set


Hydraulic cutting equipment------------------------------------------------------1 set


Output table--------------------------------------------------------------------------2 sets


Main drive-----------------------------------------------------------------------------1 set


Hydraulic system---------------------------------------------------------------------1 set


Controlling system (including cabinet)--------------------------------------------1 set


Downpipe elbow forming machine--------------------------------------------------1 set


Seaming machine----------------------------------------------------------------------1 set






Working Flow of Roll Forming Machine







45# Forged Steel Roller Downspout Roll Forming Machine 3T Manual Uncoiler







Standard  profile of product







China manufacturer pipe series downspout roll forming machine













 Photo Gallery



45# Forged Steel Roller Downspout Roll Forming Machine 3T Manual Uncoiler





FAQ

1). Does one machine can only produce one style panel profile?
Not exactly.For wider and double layer making machine. It can produce more than 6 kinds of panels.
Besides, the width is adjustable.

2). Do you have after sales support?
Yes, we are happy to give advice and we also have skilled technicians available across the world. We need your machines running in order to keep your business running.

3). How to visit your company?
Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Wuxi Station (30 minutes), then we can pick up you.

4). What can you do if the machine broken?
Our machines' warranty period is 12 months, if the broken parts can't repair, we will send the new parts replace the broken parts for free, but you need pay the express cost If after warranty period, we can through negotiation to solve the problems, and we supply the technical support for the whole life of the machine.

5). Can you be responsible for transport?
Yes, please tell me the destination port or address. we have rich experience in transportation.

6). You are trade company or factory?
We are factories.

7). Why your price is higher than others?
As we persist on that factory should put quality at the first place. We spend time and money on developing how to make machines much more automatic, accurate and high quality. We can make sure that our machine could use more than 20 years without any problem.

8). How long the machine could be made?
Normally speaking, deck floor roll forming machine could be made about 60 working days. If you need machines in a hurry, we can try it short time
