CZ Purlin Roll Forming Machine
>
|
|
| Place of Origin | China |
| Brand Name | Sussman |
| Certification | SGS.CE.ISO |
| Model Number | SM-CP |

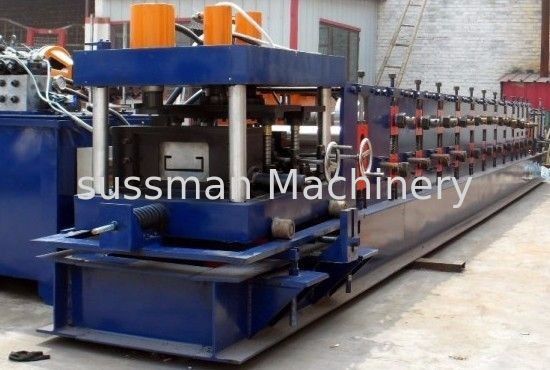

11KW Main Power C Purlins Roll Forming Machine With Hydraulic / Manual Decoiler
Specification
1. Save Cost
2. Save space
3. Low loss, easy operate
4. High Efficency
5.European quality, work smoothly
C Purlin Technical Parameter
|
|
Items |
Specifications |
|
Material of coil |
Material Thickness |
1.0-2.0 mm steel coil |
| Material | Galvanized Steel Coils, Hot Rolled Coils,Cold Rolled Coils | |
|
De-coiler |
Weight |
3 tons passive |
|
Forming system |
Rolling Speed |
10-12m/min |
|
Roller Stations |
About 13 stations forming |
|
|
Roller Material |
Gcr15 Steel with quenching |
|
|
Shaft Material |
45# Steel Diameter 75mm shaft
|
|
|
Maim Motor Power |
11 kw |
|
|
Hydraulic cutting Power |
5.5 kw |
|
|
Cutting system |
Material Of Cutting |
CR12 with quench treatment |
|
Hardness |
HRC58-62 |
|
|
Tolerance |
+-1.5mm |
|
|
Cutting blade |
1 set of cutting blade |
|
|
Electrical control system |
Electric Source |
380V, 50HZ, 3phase
|
|
Control System |
PLC with touch screen Japanese Panasonic and Yaskawa Brand |
|
|
|
Weight |
About 4 tons |
|
|
Way Of Drive |
1 inch single chain |
|
|
Size of machine |
Length 7300mm* Width 800mm* Height 1000mm |
Main Components
|
Name |
Quantity |
|
Feeding with guide |
1 set |
|
Main roll forming machine |
1 set |
|
3 ton passive de-coiler |
1 set |
|
Control box |
1 unit |
|
Hydraulic station and punching |
1 unit |
|
Out tables |
2 units |
Profile and Drawing Of Product
Customer Visiting
Loading
All rollers will be brushed unti-rusty oil, and packed with waterproof plastic film.
Control box: be packed with thick cardboard, and outer side thick waterproof plastic film.
Delivery time: 75 days after deposit
Our Service
Warranty: 12 months,lifetime service
During the warranty period, it covers all spare parts of machines, if you find some spare parts were damaged, those new spare parts will be supplied free by us, but normal wear and tear excepted. And the freight should be bore equally by both parties.We could provide technical guiding, production, installation, debugging and maintenance service to all customers. After the end of the warranty period, it’s not free. We will provide the technical support for the whole life of the equipment.
