CZ Purlin Roll Forming Machine
>
|
| Place of Origin | China |
| Brand Name | Sussman |
| Certification | SGS.CE.ISO |
| Model Number | SM-CZ |

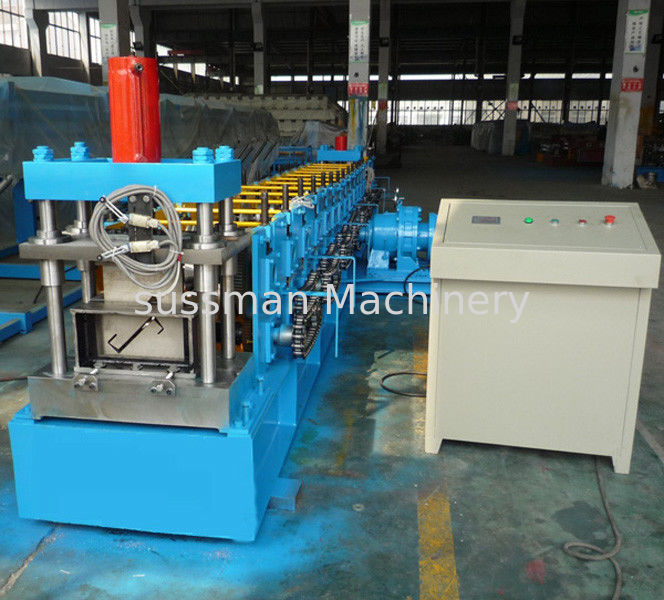

Hydraulic cutting Steel Profile C Channel Z Steel Purlin Roll forming Machine
Specification
1. High quality control ISO/SGS/CE
2. Excellent service
4. Technical support for all life
5. Accept customized design
C Z Purlin Technical Parameter
| Item | Parameter | |
| Material Thickness |
1.5-3.0mm Galvanized Steel Coils |
|
| Size of purlin | 80-300mm | |
|
Power Specs |
Voltage | 380V/3PH/50HZ |
| Main Motor | 11kw | |
| Hydraulic motor | 7.5kw | |
| Hydraulic pressure | 10-12MPa | |
|
Machine Specs |
Main forming stations | 18 steps |
| Forming Shaft | diameter 75 mm, 45# steel thermal refining | |
| Roller Material | GCR15 bearing steel quenching HRC58-60° | |
| Blade material | Cr12 mould steel with quenched treatment60-62° | |
| Punch Mould (if needed) | Cr12 quenched | |
| Forming Speed | 0-15m/min | |
| Cutting system | Length-set cutting after roll formed | |
| Control System | PLC and Inverter | |
Main Components
| Equipment name | Quantity |
| Decoiler | 1 set |
| Levelling device | 1 unit |
| Punching device | 1 unit |
| Main roll forming machine | 1 set |
| Hydraulic station | 1 set |
|
Hydraulic cutting |
1 set |
| Control system | 1 set |
| Run out table | 1 unit |
Profile and Drawing Of Product
Packaging & Shipping
Packaging: Main body of machine is naked and covered by plastic film(to protect of dust and corrosion),loaded into container with steel rope and lock catch suitable for long-distance transportation, spare parts are covered by plastic film.
Delivery Time: 75days after deposit.
Our Metal C Purlin Roll Forming Machine’s advantages
1. Anti-rust roller: Cr12 mould steel with quenched treatment, long life time.
2. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.
3. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
4. High precision: shafts for rollers are tooled by grinding machine at least twice. Rollers are CNC processed to ensure precision performance.
5. People originate: introduced Mitsubishi PLC with touch screen. Friendly man-machine interaction.
6. Excellent services: Technician can be sent to your factory to install the machine and train your workers. Lifetime services for our machines.
