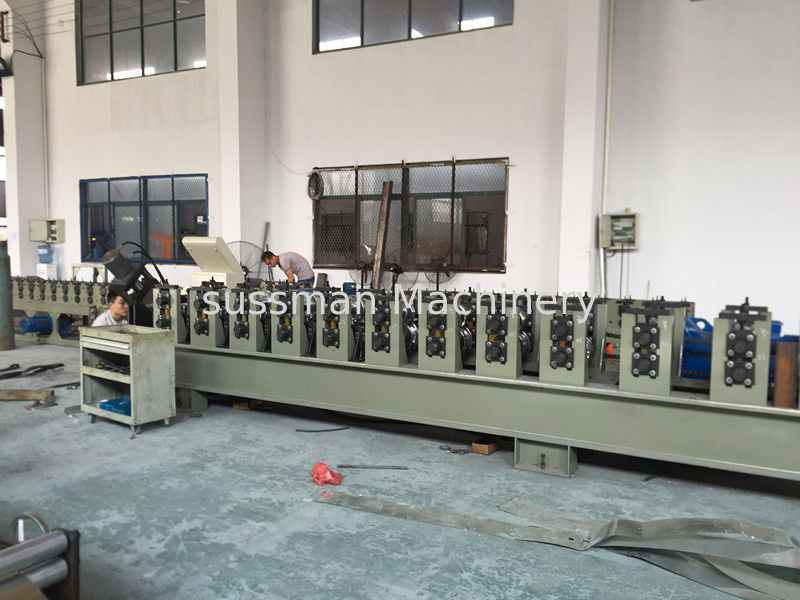

Rack Roll Forming Machine
>
|
| Place of Origin | China |
| Brand Name | Sussman |
| Certification | CE ISO |
| Model Number | RF |
Working flow:
Decoiler-----feeding----- leveling ------roll forming-----punching ------ cutting----output table
Spare parts
| Name | Number | |
| Tools | Feeler gauge | 1 |
| Size spanner | 1 | |
| Inner hexagon spanner | 1 | |
| Clamp | 1 | |
| Standard spanner | 1 | |
| Shifting spanner | 1 | |
| Slotted screwdriver | 1 | |
| Connecting screw cap flange | 20 | |
| Oil pipe | 2 | |
| Oil pipe connector | 10 | |
| Other accessories | Chain | 6 pieces |
| Chain connector | 20 pieces | |
| Bearing (Haerbin) | 40 pieces |
Technical description:
| No. | Item | Spc. |
| Decoiler | Type | Maunal |
| Inner diameter | 508-600mm | |
| Outer diameter | 1500mm | |
| Max capacity | 5tonss | |
| Leveling device | Number of Roller | 5 |
| Function | It is used for making the material flat before feeding into the roll forming machine. | |
| Roll forming machine | Material thickness | 1-3mm |
| Roller stands | 16 | |
| Roller material | 45# steel polished and coated with chrome HRC55-60° | |
| Shaft diameter | 80mm | |
| Shaft material | high grade No.45 steel after treatment | |
| Trassimission | 1''chain | |
| Slide plate thickness | 18mm | |
| Main power | 11kw | |
| Speed | 8-12m/min | |
| Votage | 380v,3phase,50HZ | |
| Punching and cutting device | Punching mould material | Cr12Mov, quenching HRC55-60 |
| Cutting mould material | Cr12Mov, quenching HRC55-60 | |
| Type | Hydraulic | |
| Power | 7.5kw | |
| Control system | Type | PLC Frequency Control System with touch screen |
| PLC Brand | Japan Panasonic | |
| Encoder Brand | Omron | |
| Length Error | ±2mm | |
| Output table | Function | It is simple and used to load finished product |
| Length | 6m |
