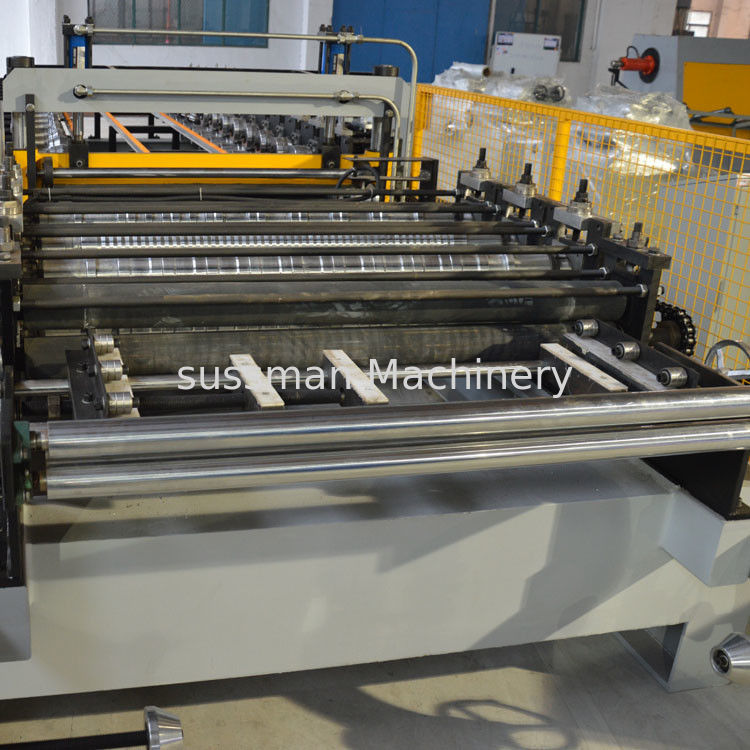

Coated Roof Panel Roll Forming Machine Interlock Roof Panel Making Machine

Coated Roof Panel Roll Forming Machine Interlock Roof Panel Making Machine
Coated Roof Panel Roll Forming Machine Interlock Roof Panel Making Machine Coated Roof Panel Roll Forming Machine Interlock Roof Panel Making Machine

Large Image :  Coated Roof Panel Roll Forming Machine Interlock Roof Panel Making Machine

Product Details:
Place of Origin: Wuxi, China
Brand Name: SUSSMAN
Certification: CE, SGS, ISO
Model Number: RF-RT
Payment & Shipping Terms:
Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Film and steel
Delivery Time: 60days after deposit
Payment Terms: T/T, L/C, D/P, Western Union, MoneyGram
Supply Ability: 10 stes per month

Coated Roof Panel Roll Forming Machine Interlock Roof Panel Making Machine

Description
Material Thickness: 0.4-0.7mm PPGI And GI Profile Width: Effective Width 100mm
Profile Height: According To Customer’s Profiles Rolling Speed: About 12m/min
Roller Stations: About 14 Stations Maim Motor Power: 7.5KW
Power Supplier: 380V, 50 Hz, 3Phase Machine Weight: About 3 Tons
High Light:

metal roof roll forming machine

,

roof tile roll forming machine

Interlocking Coated Steel Roofing Tile Machine/ Interlock Roof Panel Making Machine





Usage Of Roof Panel



This machines can produce various of steel roof and wall panel, it is a new building materials ,the products are widely used as the roof and wall of factory, warehouse, garage, gymnasium, exhibition center, cinema, theatre, etc. It has many advantages, such as easy installation, short building period ,low noise, beauty, light weight.



Technical Parameter





Items

Specifications

Material of coil

Material Thickness

0.4-0.7mm PPGI and GI

Profile width

Effective Width 100mm

304.8mm, 355.6mm, 457.2mm, 508mm



Profile height

According to customer’s profiles

Un Coiler

3 tons manual

Forming system

Rolling Speed

About 12m/min

Roller Stations

About 14 stations

Roller Material

Gcr15 coated with chrome



Maim Motor Power

7.5 kw

Motor cutting Power

4kw

Cutting

system

Material Of Cutting

CR12mov with quench treatment

Hardness

HRC58-62

Tolerance

+-1.5mm

Electrical control system

Electric Source

380V, 50HZ,3 phase

Also can satisfy Customer’s requirey

Control System

PLC (Panasonic) as list in the note



Weight

About 3 tons



Way Of Drive

1 inch chain



Machine Components


Name

Quantity

3 tons hydraulic de-coiler

1 set

Main roll forming machine

1 set

Control box

1 unit

Hydraulic cutting device 1 set

Hydraulic station

1 unit

Out tables

2 units





Working flow



Uncoiling—feedingwithguide——Rollforming——Cutting ——Products collecting



Profile Drawing



Coated Roof Panel Roll Forming Machine Interlock Roof Panel Making Machine 0




Loading Pics



Packaging detail:

a.Fit for ocean shipping;
b.Main body of machine is fixed to container; Rollers and shaft is covered with anti-rust oil; Spare parts in carton box.

Delivery details:60 working days



Coated Roof Panel Roll Forming Machine Interlock Roof Panel Making Machine 1 Coated Roof Panel Roll Forming Machine Interlock Roof Panel Making Machine 2

Coated Roof Panel Roll Forming Machine Interlock Roof Panel Making Machine 3
