Hydraulic Cutting Steel Storage Rack Shelf Production Line With Bending

China Hydraulic Cutting Steel Storage Rack Shelf Production Line With Bending supplier
Hydraulic Cutting Steel Storage Rack Shelf Production Line With Bending supplier Hydraulic Cutting Steel Storage Rack Shelf Production Line With Bending supplier Hydraulic Cutting Steel Storage Rack Shelf Production Line With Bending supplier

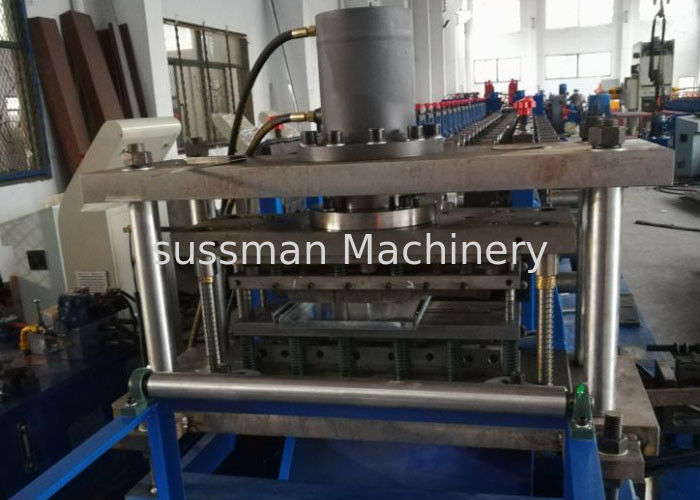

Large Image :  Hydraulic Cutting Steel Storage Rack Shelf Production Line With Bending

Product Details:

Place of Origin: Jiangsu,China
Brand Name: Sussman
Certification: CE ISO 9001
Model Number: SM-RS

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard Packing with steel wire fixed and film coated
Delivery Time: 75 days
Payment Terms: L/C, T/T
Supply Ability: 5 set per month
Contact Now
Detailed Product Description
Material: Galvanized Steel Material Thickness: 0.7-1.2mm
Forming Stations: 18 Stations Dirve System: Chain Drive
Power Supply: 380V, 50Hz, 3Phase Forming Speed: 3-5m/min

Hydraulic Cutting Steel Storage Rack Shelf Production Line With Bending



Rack Shelf Machine Parameters


1. Suitable raw material: 0.7-1.2mm galvanized coil S235JR

2. Material width:200-600mm

3. Forming stations: 18 stations

4. Material of Roller: Gcr15, precision-machined, high frequency quenching HRC58-62, diameter of rollers: >150

5. Material of Main Shaft: 45# high quality steel (diameter>50)

6. Driven system: Chain Driven 1.5 inches

7. Chains’ material: 45# steel, high frequency quenching, circular pitch: 38.1; number of teeth: 13

8. Cutting: Hydraulic Cutting Cr12mov

9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62

10. Hydraulic Station Power: 4KW

11. Control system:PLC Panasonic with touch screen




Rack Shelf Machine Components


                                             Main Components
De-coiler
1 set
Leveling device
1 set
Roll forming machine
1 set
Punching device
2 sets
Hydraulic cutting and bending device
1 set
Hydraulic station
1 set
PLC control box
1 set
Safety cover
1 set
Ran out table
2 sets
Control panel
1 set







Our Company


Sussman Machinery Co., Ltd. is specialized in building materials of light steel structure. Since the factory founded 10 years before, it always designs and produces various type profile of roll forming machine.

The main products of factory is Roller shutter door, PU sandwish panel line, pre-painted steel forming machine, Racking roll forming machine, the cable tray roll forming machine,Glazed Tile forming machine, Automatical C/Z Purlin forming machine, Floor Deck forming machine, Guardrail forming machine, Down Pipe forming machine, the whole carriage plate for car beam unit,Steel storage unit, etc. The products are widely used in warehouse, factory buildings, supermarket, Nursing homes, villas and other construction projects, Our factory can meet the construction enterprises, automobile industry, Iron andsteel production enterprises' growing demands.

Sussman machinery is located in Wuxi city, Jiangsu province which is close to Shanghai, It's about half an hour's journey. We enojoy the convenient transportation and advantageous location which supply good business opportunities for the buyers home and abroad.
