Gcr15 Steel Roller Upright Angle Roll Forming Machine Chain Driven

China Gcr15 Steel Roller Upright Angle Roll Forming Machine Chain Driven supplier
Gcr15 Steel Roller Upright Angle Roll Forming Machine Chain Driven supplier Gcr15 Steel Roller Upright Angle Roll Forming Machine Chain Driven supplier Gcr15 Steel Roller Upright Angle Roll Forming Machine Chain Driven supplier Gcr15 Steel Roller Upright Angle Roll Forming Machine Chain Driven supplier

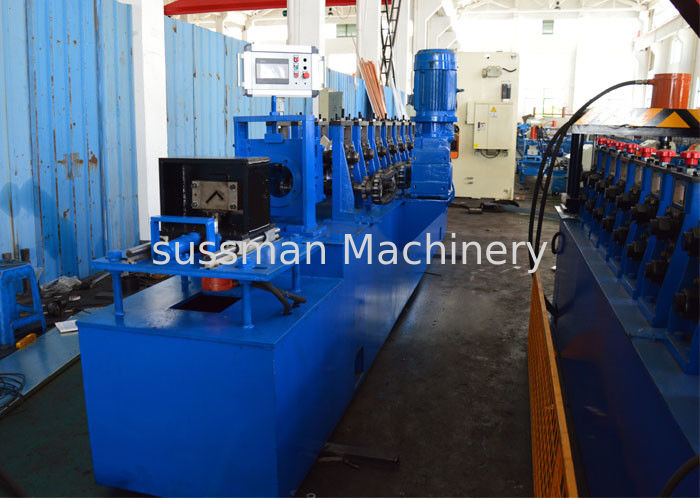

Large Image :  Gcr15 Steel Roller Upright Angle Roll Forming Machine Chain Driven

Product Details:

Place of Origin: Jiangsu,China
Brand Name: Sussman
Certification: CE ISO 9001
Model Number: SM-AM

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard Packing with steel wire fixed and film coated
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 set per month
Contact Now
Detailed Product Description
Material Thickness: 1.5-2.0mm Galvanized Steel And Black Steel Forming Speed: 5-10m/min
Forming Stations: 11 Stations Dirve System: Chain Drive 1.5 Inches
Power Supply: 380V, 50Hz, 3Phase Main Motor Power: 11 KW
Cutting: Hydraulic Cutting Cr12mov Hydraulic Station Power: 4KW

Gcr15 Steel Roller Upright Angle Roll Forming Machine Chain Driven



Upright Angle Machine Main Specifications



Slotted angle rolling forming machine is make the slotted angle in batch by rolling forming principle. Slotted angle is a system of reusable metal strips used to construct shelving, frames, work benches, equipment stands and other structures.


Suitable Plate Material: thickness 1.5-2.0mm
Material: Galvanized steel or blank steel
Working Speed: 5-10meters / min
Forming Steps: About 11 stations
Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
Driven system: Chain drive
Main Power with reducer: 11KW
Cutting: Hydraulic Cutting Cr12mov,
Quench HRC58-62
Hydraulic Station Power: 4KW
The whole machine is controlled by industry computer-PLC.

PLC--Delta or Panasonic, Japan English and Chinese Language
Hydraulic punching:2 sets of punching dies

Upright Angle Machine’s Components

S.N Equipment name
1 3T hydraulic un-coiler
2 Leveling device 300mm
3 Servo feeding device 300mm
4 Press machineJH21-63
5 Main roll forming machine
6 Cutting holder
7 Hydraulic station
8 Control system ( including control box)
9 Out tables
10 Spare parts
13 Punching die set



Working Flow of Angle Roll Forming Machine

Decoiling--Leveling device-Servo following---Punching---Roll Forming----Cutting----Product Collecting
Gcr15 Steel Roller Upright Angle Roll Forming Machine Chain Driven





Advantage for Roll Forming Machine

1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Afrer-sales service

Packaging & Delivery


Packaging Details:
Standard package with film, plastic and steel wire. (or customized)
1. need about ten 40ft containers for loading one set machine completely

2. the whole Wiped Anti Rust Oil, PLC controller covered by foam film

3. Spare parts and some small parts packed in plastic tooling box

4. All Components Fixed by steel wire with Container.
Delivery Detail:Shipped in 60 working days after payment

Gcr15 Steel Roller Upright Angle Roll Forming Machine Chain DrivenGcr15 Steel Roller Upright Angle Roll Forming Machine Chain Driven

Gcr15 Steel Roller Upright Angle Roll Forming Machine Chain Driven



The slotted angle racks how to be used

Gcr15 Steel Roller Upright Angle Roll Forming Machine Chain Driven
