PLC Control Rack Roll Forming Machine Upright Shelf Making Equipment

China PLC Control Rack Roll Forming Machine Upright Shelf Making Equipment supplier
PLC Control Rack Roll Forming Machine Upright Shelf Making Equipment supplier PLC Control Rack Roll Forming Machine Upright Shelf Making Equipment supplier PLC Control Rack Roll Forming Machine Upright Shelf Making Equipment supplier PLC Control Rack Roll Forming Machine Upright Shelf Making Equipment supplier

Large Image :  PLC Control Rack Roll Forming Machine Upright Shelf Making Equipment

Product Details:

Place of Origin: Wuxi, China
Brand Name: Sussman
Certification: CE, ISO9001,SGS
Model Number: SS - RR

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Film and steel
Delivery Time: 60 Days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20 Set Per Month
Contact Now
Detailed Product Description
Working Speed: 12-15m/min Station Number: 17 Stations
Main Power: 11KW Material Of Shaft: 45# Steel
Material Of Roller: Gcr15 Profile Thickness: 1.5-2.0mm

PLC Control Racking Roll Forming Machine Upright Shelf Making Equipment



Main Roll forming machine technique data



1. Suitable Plate Material: thickness 1.5-2.0mm, Galvanized steel S235JR

2. Working Speed: 12-15 meters / min

3. Forming machine: 17 stations, 16 stations for forming, and one station for embossing the LOGO, Arch way

4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome

5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining

6. Driven system: Chain Driven 1.5 inches 20A double chain with longer shafts

7. Main Power with reducer: 11KW WH Chinese Famous

8. Cutting: Hydraulic Cutting Cr12mov

9. Material of Cutting Knife: Cr12Mov, Quench HRC58-62

10. Hydraulic Station Power: 5.5KW Wuxi Wanshen Famous Chinese Brand

11. The whole machine is controlled by industry computer-PLC.

12 PLC--Panasonic, Japan English and Chinese Language

13. Touch Screen--Panasonic Japan



Spare parts



  Name Number
Tools Feeler gauge 1
Size spanner 1
Inner hexagon spanner 1
Clamp 1
Standard spanner 1
Shifting spanner 1
Slotted screwdriver 1
Other accessories Chain 6 pieces
Chain connector 20 pieces
Bearing (Haerbin) 20 pieces



Machine Layout



Decoiling---Guiding and Leveling---Punching---Roll Forming----Cutting----Product Collecting



PLC Control Rack Roll Forming Machine Upright Shelf Making Equipment

Profile drawing



PLC Control Rack Roll Forming Machine Upright Shelf Making Equipment

Products



PLC Control Rack Roll Forming Machine Upright Shelf Making Equipment

PLC Control Rack Roll Forming Machine Upright Shelf Making Equipment

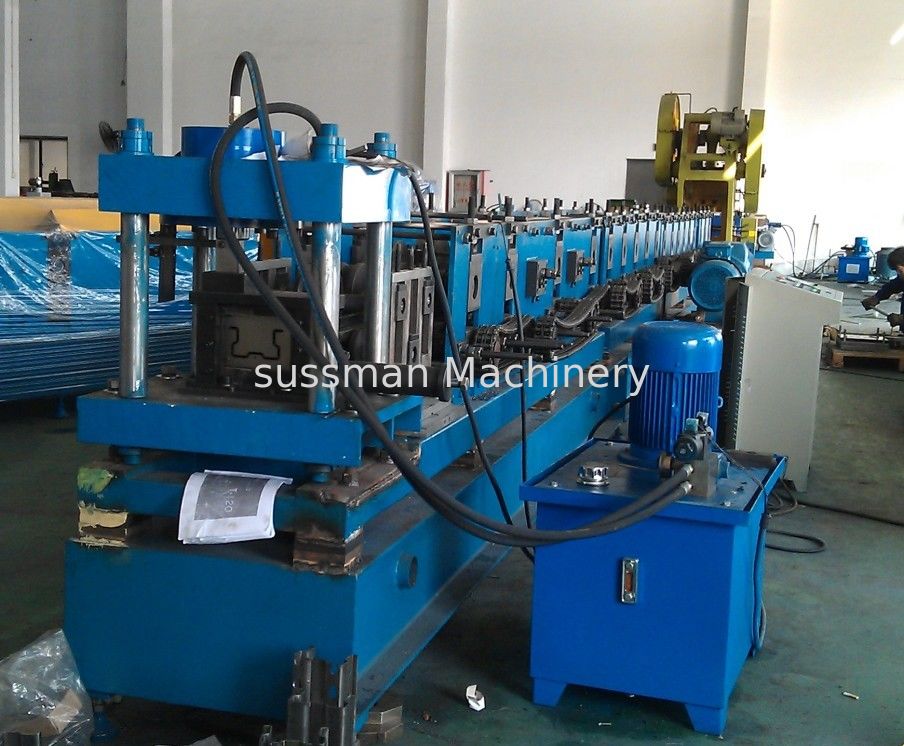

Machine pictures



PLC Control Rack Roll Forming Machine Upright Shelf Making Equipment



PLC Control Rack Roll Forming Machine Upright Shelf Making Equipment



PLC Control Rack Roll Forming Machine Upright Shelf Making Equipment
