HRC58-62 Hardness Ridge Cap Roll Forming Machine Single Layer Type Roll Form Machine
  • HRC58-62 Hardness Ridge Cap Roll Forming Machine Single Layer Type Roll Form Machine
  • HRC58-62 Hardness Ridge Cap Roll Forming Machine Single Layer Type Roll Form Machine
  • HRC58-62 Hardness Ridge Cap Roll Forming Machine Single Layer Type Roll Form Machine
  • HRC58-62 Hardness Ridge Cap Roll Forming Machine Single Layer Type Roll Form Machine

HRC58-62 Hardness Ridge Cap Roll Forming Machine Single Layer Type Roll Form Machine

Place of Origin Wuxi, China
Brand Name Sussman
Certification CE,ISO9001,SGS
Model Number RC
Product Details
Material Thickness:
0.3mm-0.8mm
Rolling Speed:
5-10m/min
Roller Stations:
16 Stations
Roller Material:
45# Steel
Main Motor Power:
5.5kw
Tolerance:
+/-1.5mm
High Light:

Corrugated Sheet Roll Forming Machine

,

standing seam roll former

Payment & Shipping Terms
Minimum Order Quantity
1 set
Price
negotiable
Packaging Details
Film and steel
Delivery Time
90 days after deposit
Payment Terms
L/C, T/T, Western Union
Supply Ability
10 set per month
Product Description

HRC58-62 Hardness Ridge Cap Roll Forming Machine Single Layer Type



The main description









Items



Specifications



Remarks

Material of coil Material Thickness 0.3—0.8mm
Un Coiler 3 tons manual
Forming system Rolling Speed 5-10m/min
Roller Stations 16stations
Roller material 45# steel, coated with chrome
Maim Motor Power 5.5kw

Hydraulic cutting Power



4kw

Cutting

system

Material Of Cutting CR12 with quench treatment
Hardness HRC58-62
Tolerance +-1.5mm
Electrical control system Electric Source

380V, 50HZ,3 phase

Also can satisfy customer’s require


Control System PLC with touch screen
  Way Of Drive 1.2 inch single chain

Packing

information

Color of the machine blue



Profile drawing

HRC58-62 Hardness Ridge Cap Roll Forming Machine Single Layer Type Roll Form Machine 0

Machine products



HRC58-62 Hardness Ridge Cap Roll Forming Machine Single Layer Type Roll Form Machine 1

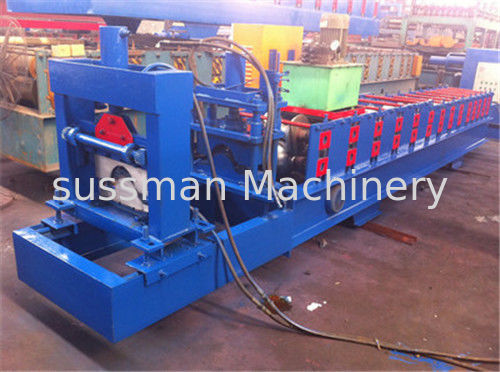

Machine pictures



HRC58-62 Hardness Ridge Cap Roll Forming Machine Single Layer Type Roll Form Machine 2



HRC58-62 Hardness Ridge Cap Roll Forming Machine Single Layer Type Roll Form Machine 3



HRC58-62 Hardness Ridge Cap Roll Forming Machine Single Layer Type Roll Form Machine 4
