Gear Box Driving Vineyard Post Roll Forming Equipment with Stable Performance

China Gear Box Driving Vineyard Post Roll Forming Equipment with Stable Performance supplier
Gear Box Driving Vineyard Post Roll Forming Equipment with Stable Performance supplier Gear Box Driving Vineyard Post Roll Forming Equipment with Stable Performance supplier Gear Box Driving Vineyard Post Roll Forming Equipment with Stable Performance supplier

Large Image :  Gear Box Driving Vineyard Post Roll Forming Equipment with Stable Performance

Product Details:

Place of Origin: China
Brand Name: SUSSMAN
Certification: CE, SGS, ISO9001
Model Number: SS-VY

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard package with film, plastic and steel wire. (or customized)
Delivery Time: 60-90 working days after payment
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Material: Galvanized Steel Sheet Material Thickness: 1.5-2mm
Forming Stations: 16 Stations Roller Material: 20m/min
Dirve System: Gearbox Drive Power Supply: 380V, 50Hz, 3Phase
Main Motor Power: 7.5 KW Dimension: 20000x1200x1200mm
Cutting Tolerance: 1.5mm Max.coil Width: 500mm
Control: PLC Total Weight: 10 Tons

Machine list



S.N Equipment name Quantity
1 2T*2 double heads manual De-coiler 1 set
2 Leveling device NC300mm 1 set
3 Servo feeding device 300mm 1 unit
4 Press machine JH21-80 1 unit
5 Main roll forming machine 1 set
6 Servo following cutting 1 set
7 Hydraulic station 1 set
8 Control system ( including control box) 1 set
9 Out tables 1 unit
10 Spare parts 1 package
11 Cutting dies 2 sets
12 Cassettes 1 set
13 Punching dies 2 sets



Technique data



Double heads De-coiler



Diameter: 460-520mm expansion.

Expansion: manually

Capacity: 2000kg per mandrel/ 2000kg per mandrel

Max Coil Width: 500mm

Drag tension brake with variable brake tension adjustment valve



Leveling device



7 rolls leveling, 3 rolls up and 4 rolls down, roller leveler rolls is more smaller, get flatting better.

Diameter is Ø 70mm, chrome and HRC60 heat treatment to secure the smooth surface

Leveling Raw Material thickness:3mm

Max Leveling Raw Material width: 300mm

Motor: 1.8kw, drive faster, can adjust the speed

Feeding Servo feeding motor: 1.8KW (Yaskawa, Japanese Brand)



Press machine



Series JH21-80

Brand name: Yangli

JH21 series press machine description

JH21series open back press with dry clutch and hydraulic overload protector



Main Roll forming machine technique data



Suitable Plate Material: thickness 1.5-2mm, Galvanized steel or blank steel

Working Speed: about 20meters / min

Forming machine: about 16 stations

Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome

Material of Shaft: 45# Advanced Steel (Diameter: 75mm), thermal refining

Drive system: Gear box

Main Power with reducer: 11KW WH Chinese Famous

Cutting: Hydraulic Cutting Cr12mov

Material of Cutting Knife: Cr12Mov, Quench HRC58-62

Hydraulic Station Power: 4KW Wuxi Wanshen Famous Chinese Brand

The whole machine is controlled by industry computer-PLC.

PLC--Panasonic, English and Chinese Language



Spare parts



  Name Number
Tools Feeler gauge 1
Size spanner 1
Inner hexagon spanner 1
Clamp 1
Standard spanner 1
Shifting spanner 1
Slotted screwdriver 1
Other accessories Chain 6 pieces
Bearing (Haerbin) 10 pieces
Encoder( Omron) 1 piece



Total machine specification



the outline of the machine: about 20 meters*1.2meters*1.2 meters

total weight: about 10 tons

shipping container 1*40 feet GP containers



Working Flow of Roll Forming Machine



Decoiler----feedingwithguide---Punching----Rollforming----Cutting----Products collecting






Profile of product



 Gear Box Driving Vineyard Post Roll Forming Equipment with Stable Performance

Gear Box Driving Vineyard Post Roll Forming Equipment with Stable Performance

Gear Box Driving Vineyard Post Roll Forming Equipment with Stable PerformanceGear Box Driving Vineyard Post Roll Forming Equipment with Stable Performance

Gear Box Driving Vineyard Post Roll Forming Equipment with Stable PerformanceGear Box Driving Vineyard Post Roll Forming Equipment with Stable Performance

Gear Box Driving Vineyard Post Roll Forming Equipment with Stable Performance

Gear Box Driving Vineyard Post Roll Forming Equipment with Stable Performance

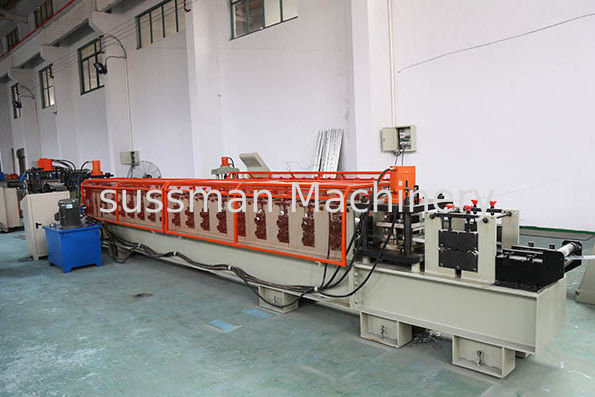

Machine pictures



Gear Box Driving Vineyard Post Roll Forming Equipment with Stable Performance



Gear Box Driving Vineyard Post Roll Forming Equipment with Stable Performance



Gear Box Driving Vineyard Post Roll Forming Equipment with Stable Performance
