CU Stud And Track Roll Forming Machine with Famous Framing Software VertexBD

China CU Stud And Track Roll Forming Machine with Famous Framing Software VertexBD supplier
CU Stud And Track Roll Forming Machine with Famous Framing Software VertexBD supplier CU Stud And Track Roll Forming Machine with Famous Framing Software VertexBD supplier CU Stud And Track Roll Forming Machine with Famous Framing Software VertexBD supplier

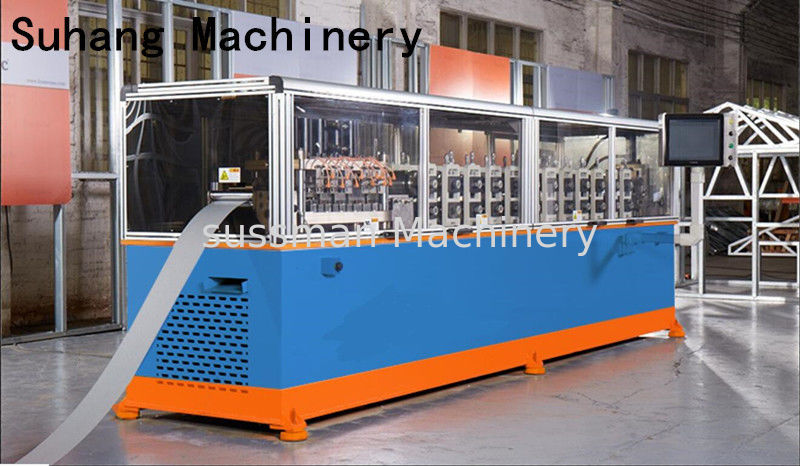

Large Image :  CU Stud And Track Roll Forming Machine with Famous Framing Software VertexBD

Product Details:

Place of Origin: Wuxi, China
Brand Name: Sussman
Certification: CE,ISO,SGS
Model Number: SS - ST

Payment & Shipping Terms:

Minimum Order Quantity: 1 Set
Price: negotiable
Packaging Details: Film and Steel
Delivery Time: 60 Days after deposit
Payment Terms: L/C, T/T, Western Union
Supply Ability: 10 Set/Month
Contact Now
Detailed Product Description
Size: 89*41mm Thickness: 0.75-1.2mm(G300-G550Galvanzied Coils And Aluzinc )
Accuracy: 0.5mm Speed: 300-700m/h
Main Motor: 7.5kw Feeding Width: 182mm
Overall Size: 4900x1000x1500mm

CU Stud Track Roll Forming Machine with Famous Framing Software VertexBD





Technological process:



Decoiler—feedingwithguide——punching—Rollforming—Cutting—Products collecting

CU Stud And Track Roll Forming Machine with Famous Framing Software VertexBD





Machine list 2 Tonne Automatic single head uncoiler 1 set
Main roll forming machine 1 set
Vertex BD 2017 1 unit
PVC with baler 1 unit
Out tables 2 units
CNC inkjet printer 1 unit
Computer control system 1 unit





Technical data



Size 89*41mm
Thickness 0.6-1.2mm(G300-G550Galvanzied coils and Aluzinc )
Feeding width 182mm
Standard Producing speed 300-700m/h
Max producing speed 1500m/h
Main motor 7.5kw
Power supplier 380V 50Hz 3phases according to your request
Hydraulic station 5.5kw
Hydraulic tank capacity 100L
Hydraulic cooling Fan cooling
Hydraulic pressure Computer set
Host cordless remote control Standard
Frame and punching dies Screw hole, chamfer, slot hole, flange cut, pipe hole, suspension, cutting
Product accuracy+- 0.5mm
CNC inkjet-printer EC-JET
Size 4900*1000*1500mm
Weight 5000kg
Color according to your request
De-colier bearing 2 tonne, automatical decoiler



Technological process:



Decoiler—feedingwithguide——punching—Rollforming—Cutting—Products collecting

CU Stud And Track Roll Forming Machine with Famous Framing Software VertexBDCU Stud And Track Roll Forming Machine with Famous Framing Software VertexBD



VERTEX BD 2017 design software



(The leading international well-known light steel structure design software)



CU Stud And Track Roll Forming Machine with Famous Framing Software VertexBD



1. The wall, floor and roof structure is produced automatically, saving design time.

2. Automatic 3D molding, insure 100% accuracy.

3. With analysis project function, the software can calculate bearing capacity.

4. Create frame work 3D map and 3D decoration view.

5. The whole building frame can be resolve to independent unit drawing.

6. Calculate the bill of material, including the needed steel, plates, thermal insulation material,doors and windows, screws and other matching material.

7. Create the processed data including the marked work piece, docking with the equipment.

8. Software maintenance and training fee.

9. Maintenance and supporting fee is USD 2200.00/Year. It’s for software update and optional.



Technical data



Size 89*41mm
Thickness 0.6-1.2mm(G300-G550Galvanzied coils and Aluzinc )
Feeding width 182mm
Standard Producing speed 300-700m/h
Max producing speed 1500m/h
Main motor 7.5kw
Power supplier 380V 50Hz 3phases according to your request
Hydraulic station 5.5kw
Hydraulic tank capacity 100L
Hydraulic cooling Fan cooling
Hydraulic pressure Computer set
Host cordless remote control Standard
Frame and punching dies Screw hole, chamfer, slot hole, flange cut, pipe hole, suspension, cutting
Product accuracy+- 0.5mm
CNC inkjet-printer EC-JET
Size 4900*1000*1500mm
Weight 5000kg
Color according to your request
De-colier

bearing 2 tonne, automatical decoiler









    Picture drawing



CU Stud And Track Roll Forming Machine with Famous Framing Software VertexBD



CU Stud And Track Roll Forming Machine with Famous Framing Software VertexBD



CU Stud And Track Roll Forming Machine with Famous Framing Software VertexBD
