Thick Galvanized Steel Roof Panel Roll Forming Machine with Chain Driving System

China Thick Galvanized Steel Roof Panel Roll Forming Machine with Chain Driving System supplier
Thick Galvanized Steel Roof Panel Roll Forming Machine with Chain Driving System supplier Thick Galvanized Steel Roof Panel Roll Forming Machine with Chain Driving System supplier Thick Galvanized Steel Roof Panel Roll Forming Machine with Chain Driving System supplier Thick Galvanized Steel Roof Panel Roll Forming Machine with Chain Driving System supplier

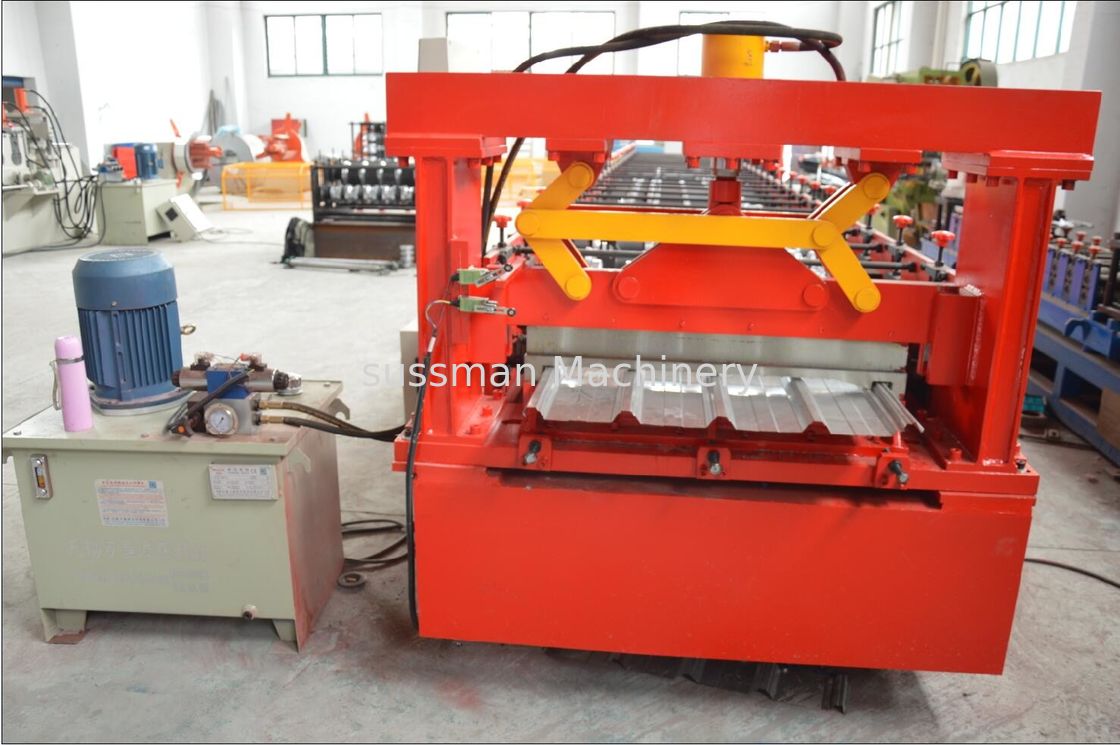

Large Image :  Thick Galvanized Steel Roof Panel Roll Forming Machine with Chain Driving System

Product Details:

Place of Origin: Wuxi, China
Brand Name: Sussman
Certification: CE, SGS, ISO
Model Number: SS-RP

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Film and steel
Delivery Time: 50 days after deposit
Contact Now
Detailed Product Description
Material: 0.3-0.8mm For Color Coated Steel Forming Speed: 10-12m/min
Roller Stations: 14 Stations Hydraulic Pressure: 12 Mpa
Main Motor Power: 7.5Kw Tolerance: 1.5mm
Color: Blue

Thick Galvanized Steel Roof Panel Roll Forming Equipment with Chain Driving System


Machine List



Machine list 5 tons passive de-coiler 1 set
Main roll forming machine 1 set
PLC Control box 1 unit
Hydraulic station 1 unit
Out tables 2 units



Technological process



Uncoiling—Feedingwithguide——Rollforming—Cutting—Products collecting

Thick Galvanized Steel Roof Panel Roll Forming Machine with Chain Driving System




Un-coiler:



5 tons passive decoiler


Coil inner Diameter: ¢508-610mm
Max out diameter of the coil: ¢1500mm
Max Coil Width: 1250mm


Thick Galvanized Steel Roof Panel Roll Forming Machine with Chain Driving System



Roll forming machine:



Roll Forming Machine: RF-RP

Rolling Speed : 10-12m/min(cutting time is not include)

Steel sheet Thickness: 0.3-0.8mm color painted sheets

Machine should be compatible for Aluminium , PPGI , PPGL , etc.

Control System: PLC

Roller Stations: about 14 stations up and 14 stations down

Roller Material : 45# forge steel, coated with chrome

Shaft Material and DIA: ¢75mm,material is 45# forge steel, Chrome with quenching

Main Motor Power: 7.5kw

Hydraulic Pressure: 12Mpa

Tolerance: +1.5mm

Power supplier:380V, 50HZ,3 phase

Way Of Drive:1.2 inch single chain

Color Of The Machine :blue

The size of the forming machine:7000*1500*1000mm

Machine weight: about 8 tons



Cutting:
(1) Cutting motion: The main machine stops and then cut automatically. After cutting, the main machine re-starts automatically.
(2) Material of blade: CR12 with heat treatment
(3) Length measuring: Automatically
(4) The cutting thickness: 0.3- 0.8mm
(5) Hydraulic Station Power: 4 KW

Hydraulic Station


Thick Galvanized Steel Roof Panel Roll Forming Machine with Chain Driving System

It is controlled by wheel oil pump. After filling the hydraulic oil into
the hydraulic oil tank ,the pump drive the cutter machine to begin the
cutting job.
Components: The system includes a set of hydraulic tank, a set of hydraulic
oil pump, two hydraulic pipes. and two sets of electromagnetism valves.

Out table:


Size:4000*1350*1000mm


Thick Galvanized Steel Roof Panel Roll Forming Machine with Chain Driving System

Control Box:


Thick Galvanized Steel Roof Panel Roll Forming Machine with Chain Driving System
Electrical control system part,
t-size:9.0000pt;mso-font-kerning:1.0000pt;" >00mm

(1) Power supplier: 380V, 50 Hz, 3Phase (adjusted with the requestment)
(2) length & quantity measurement automatically;
(3) length & quantity controlled by PLC,
(4) Length inaccuracy can be amended easily.
(6). Control panel: Button-type switch and touch screen
(7) Unit of length: millimeter (switched on the control panel)
