G550 Galvanized Embossment Steel Flooring Deck Plate Roll Forming Machinery 22KW

China G550 Galvanized Embossment Steel Flooring Deck Plate Roll Forming Machinery 22KW supplier
G550 Galvanized Embossment Steel Flooring Deck Plate Roll Forming Machinery 22KW supplier G550 Galvanized Embossment Steel Flooring Deck Plate Roll Forming Machinery 22KW supplier G550 Galvanized Embossment Steel Flooring Deck Plate Roll Forming Machinery 22KW supplier

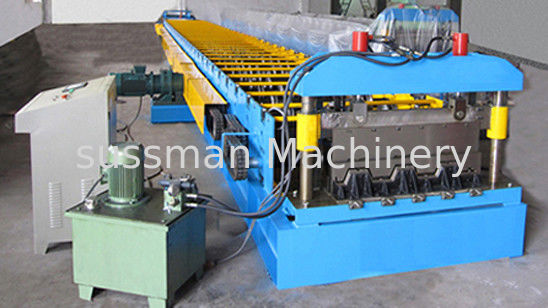

Large Image :  G550 Galvanized Embossment Steel Flooring Deck Plate Roll Forming Machinery 22KW

Product Details:

Place of Origin: Wuxi, China
Brand Name: Sussman
Certification: CE, SGS, ISO
Model Number: RF-FD

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Film and steel
Delivery Time: 60days after deposit
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Steel Thickness: Grade G550,0.7-1.2mm Roller Stations: 28 Stations
Way Of Drive: 1.2 Inch Single Chain Main Motor Power: 22Kw
Forming Speed: 10-12m/min Power Supply: 380V, 50HZ,3 Phase
Material Of Cutting: Cr12 Feeding Width: 1000mm
Effective Width: 688mm

G550 Galvanized Embossment Steel Flooring Deck Plate Roll Forming Machinery 22KW





Product Description


We can design different kinds of profile and fitting for steel deck machine,as per customers’ requirements.
The steel floor deck roll foming machine consists of uncoiler and its base,infeed guides,fixed position driven forming stations,cutting device,hydraulic station,PLC control console and so on.

Steel floor deck sheet is rolled by steel floor decking roll forming machine,the finished product are of many features,such as simple shape,large wave height,high intensity and good adhesiveness when pouring the concrete together with the welded steel wire net on-site,in the high story building,it not only can save steel mould board,but also reduce the bearing of the floor: on basis of equal capacity,it reduces the steel amount of engineering useage,so that it saves cost of investment.







Technical Parameter





Item NO

Name

Description

1

Total power

Motor power-22kw with cycloidal reducer

Hydraulic power-7.5kw

2

Rows of rollers

28 rows

3

Productivity

10-12m/min

4

Diameter of shaft

95mm

5

Voltage

380V 50Hz 3Phases

6

Machine body

H-model Steel

7

Shafts

45# steel quenching treatment

8

Rollers

Gcr15 forge steel, coated with chrome

9

Electrical Control System

Panasonic Japan

10

Cutting accuracy

1.5mm

11

Hydraulic Station Pressure

12Mpa

12

Weight

8 tons





Main Components



Equipment name

Quantity

5 tons passive decoiler

1 set

feeding and guide

1 set

hydraulic cutting

1 set

PLC control box

1 set

hydraulic station

1 set

main roll forming machine

1 set

out tables

2 units




Working Flow of Roll Forming Machine



Uncoiling—Feeding&Leveling--Roll forming—Cutting—Products collecting



G550 Galvanized Embossment Steel Flooring Deck Plate Roll Forming Machinery 22KW





Profile of product

G550 Galvanized Embossment Steel Flooring Deck Plate Roll Forming Machinery 22KW

G550 Galvanized Embossment Steel Flooring Deck Plate Roll Forming Machinery 22KW











Other profiles we can also do for you





G550 Galvanized Embossment Steel Flooring Deck Plate Roll Forming Machinery 22KW













Machine Photo

G550 Galvanized Embossment Steel Flooring Deck Plate Roll Forming Machinery 22KW





G550 Galvanized Embossment Steel Flooring Deck Plate Roll Forming Machinery 22KW





Packing and Shipping



1, Package: Film and steel

2. Delivery time: 55 days

G550 Galvanized Embossment Steel Flooring Deck Plate Roll Forming Machinery 22KW
