Customized Cold Beam Rack Steel Roll Forming Machine With Fly Saw Cutting

China Customized Cold Beam Rack Steel Roll Forming Machine With Fly Saw Cutting supplier
Customized Cold Beam Rack Steel Roll Forming Machine With Fly Saw Cutting supplier Customized Cold Beam Rack Steel Roll Forming Machine With Fly Saw Cutting supplier Customized Cold Beam Rack Steel Roll Forming Machine With Fly Saw Cutting supplier Customized Cold Beam Rack Steel Roll Forming Machine With Fly Saw Cutting supplier

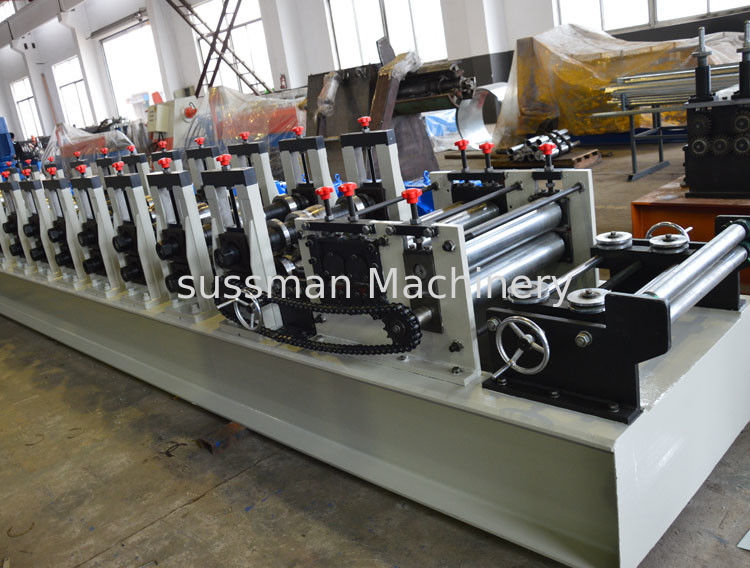

Large Image :  Customized Cold Beam Rack Steel Roll Forming Machine With Fly Saw Cutting

Product Details:

Place of Origin: Jiangsu,China
Brand Name: Sussman
Certification: CE ISO 9001
Model Number: SM-RB

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: negotiable
Packaging Details: Standard Packing with steel wire fixed and film coated
Delivery Time: 60days
Payment Terms: L/C, T/T, Western Union, MoneyGram, D/P, D/A
Supply Ability: 10 set per month
Contact Now
Detailed Product Description
Material Thickness: 1.0-2.0mm Galvanized Steel Forming Speed: 8-10m/min
Forming Stations: 20 Stations Dirve System: Gear Box Driven
Main Motor Power: 15 KW Cutting: Fly Saw Cutting
PLC: Panasonic, Japan English And Chinese Language Encoder: Omron, Japan



Customized Cold Beam Rack Steel Roll Forming Machine With Fly Saw Cutting


Main Specifications

1. Suitable Plate Material: thickness 1.2-2mm, Galvanize steel or black steel

2. Working Line Speed: 4-5meters / min

3. Forming machine: about 20 stations

4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome

5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining

6. Driven system: gear box driven

7. Main Power with reducer: 15KW WH Chinese Famous

8. Cutting: Fly saw cutting

9. The whole machine is controlled by industry computer-PLC.

10. Touch Screen--Panasonic Japan

11. Electric parts--Schneider



Machine’s Components



                                           Main Components

3 tons hydraulic de-coiler

1 set

Leveling device

1 set

Roll forming machine

1 set

Wig welding device

1set

Fly saw cutting

1 set

Cooling system

1 set

Folded machine

1 set

PLC control box

1 set

Safety cover

1 set

Out table

2 sets

Spare parts

1 set





Working Flow of Roll Forming Machine

Decoiling---Guiding and Leveling----Roll Forming----Cutting----Product Collecting


Machine components



3 ton hydraulic De-coiler



Diameter: 460-520mm expansion.

Expansion: hydraulic

Capacity: 3000kg per mandrel

Max Coil Width: 500mm

Customized Cold Beam Rack Steel Roll Forming Machine With Fly Saw Cutting





Leveling device



7 rolls leveling, 3 rolls up and 4 rolls down, roller leveler rolls are more smaller, get flatting better

Diameter is Ø 70mm





Cutting: Fly saw cutting



Cutting after forming: Cut the sheet after roll forming to required length, fly saw cutting

Cutting motion: The main machine automatically cut, and the cutter will move on the guide rails forward and back non-stopping.

Length measuring: Automatic length measuring

Tolerance of length: 6m+/- 0.5mm

 Customized Cold Beam Rack Steel Roll Forming Machine With Fly Saw Cutting
