Material Thickness: 1.5-3.0mm Width: 80-300mm
Cutter Material: Cr12 Steel Power Supplier: 380V
Cutting System: Hydraulic Cutting Control System: PLC Panasonic With Touch Screen
Roller Stations: 18 Stations Hydraulic Cutting: 7.5KW

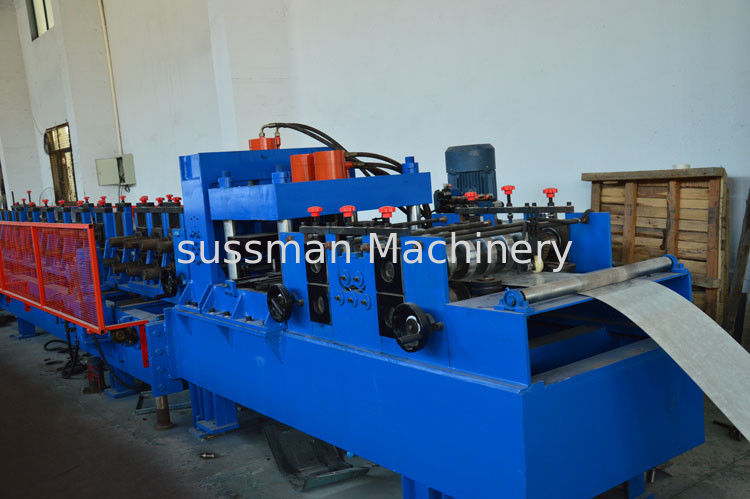

Section Roof CZ Purlin Roll Forming Machine , Ceiling Purlin C Channel Roll Forming Machine




The advantages of CZ purlin machine Automatic size-change type are as follows:
1.Produce different purlin size without changing rollers or spacers.
2.No need changing cutter for different size.
3.Easy operation, low maintenance cost.
4.Optional Punch hole at any position of purlin web side and flange side.





Material of coil

Material Thickness

1.5-3.0mm



Width

80-300mm



Height

40-100mm

De-coiler

Weight

3 ton manual decoiler

Forming system

Rolling Speed

0-12 m/min

Roller Stations

About 18 stations forming

Roller Material

Gcr15 Steel with quenching

Shaft Material

45# Steel Diameter 76mm shaft

Main Motor Power

11KW

Hydraulic cutting Power

7.5KW

Cutting system

Material Of Cutting

CR12 with quench treatment

Hardness

HRC58-62

Tolerance

+-1.5mm

Cutting blade

1 set of cutting blade

Electrical control system

Electric Source

380V, 50HZ, 3phase

Control System

PLC with touch screen Japanese Panasonic and Yaskawa Brand

Weight

About 6 tons

Way Of Drive

Chain driven


C Z Purlin Technical Parameter



Equipment name

Quantity

3T passive uncoiler

1 set

Main roll forming machine

1 set

Hydraulic pre-cutting

1 set

Hydraulic pre-punching

1 set

Hydraulic station

1 set

Out tables

1 set

Control box

2 units




Working Flow

Decoiler—feeding with guide—punching&cutting—— roll forming—run out table




Each part of machine

1.3T Passive De-coiler
Diameter: 460-520mm expansion.
Capacity: 3000kg per mandrel
Max Coil Width: 500mm

 Section Roof CZ Purlin Roll Forming Machine , Ceiling Purlin C Channel Roll Forming Machine




2.Leveling device
Put the raw material(steel plate) through the beach to manufacture and process,4 down and 3 up ,it can guarantee that the products are neat, parallel and everything is uniformity.
7 rolls leveling, 3 rolls up and 4 rolls down
Diameter is Ø 76mm, chrome and HRC60 heat treatment to secure the smooth surface.

Section Roof CZ Purlin Roll Forming Machine , Ceiling Purlin C Channel Roll Forming Machine



3.Pre -Punching and pre-cutting device
Share one Hydraulic station with Hydraulic Cutting Device
It adopts the hydraulic drive and automatic location to decide the
dimension and cut the target products
Components: It contains one set of blade, one hydraulic cylinder and one cutter machine,cutting blade material:Cr12
hydraulic station pressure: 20 MPa
Hydraulic coil:46#

 Section Roof CZ Purlin Roll Forming Machine , Ceiling Purlin C Channel Roll Forming Machine




4.Control Box: Panasonic Japan Brand
Adopted PLC , transducer, touch panel from Japan to ensure high speed with stability, precision and lifetime. Other electric element are Schneider
(1) Power supplier: 380 V, 50 Hz, 3Phase (adjusted with the requestment)
(2). Control panel: Button-type switch and touch screen
(3) The language in the touch screen: English and Chinese
(4) Length & quantity measurement automatically.
(5) Length & quantity controlled by PLC.
(6) Length inaccuracy can be amended easily.

5.Terms:
Payment type:30% T/T prepaid and balance should be paid before loading
Delivery time:75days after receving advance payment.Guarantee period18months free service/ pay service all the machine lifeInstallation and training
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting,we will send you user manual and video to teach you to install and operate.If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things




If there are any other customized machines that you are interested in, please contact us for further discussion. We will provide you for the most suitable machine solution for your market.
