|Material:||Steel Sheet||Roller Stations:||18 Stations|
|Hydraulic Cutting:||7.5KW||Cutter Material:||Cr12 Steel|
|Main Power:||11kw||Power Supplier:||380V|
|Machine Size:||10.3×1.5×1.2m||Forming Speed:||12 To 15m/min|
c purlin roll forming machine,
z purlin roll forming machine

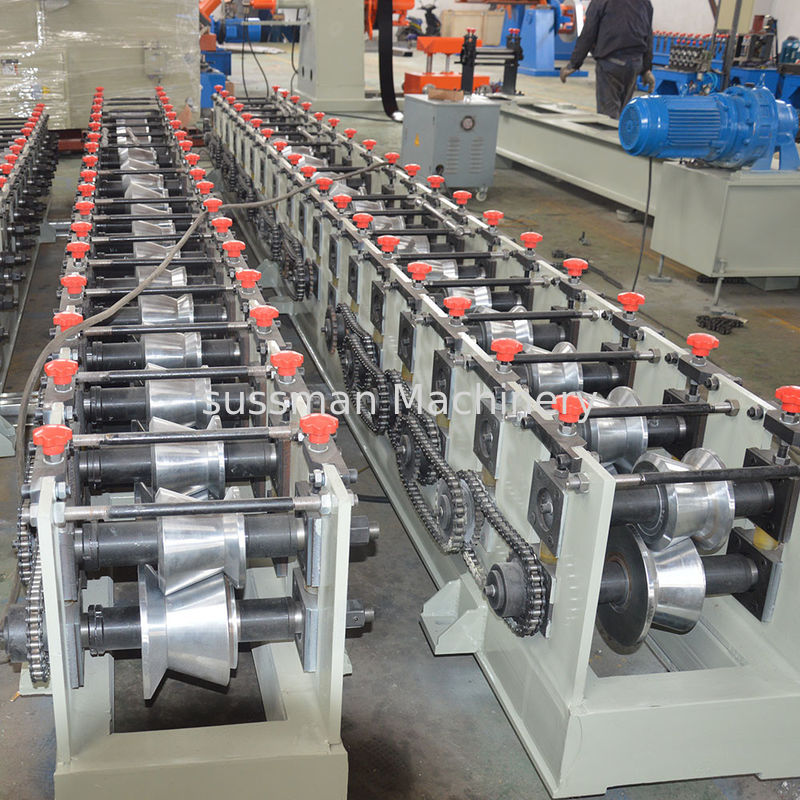

GCr15 Steel Sheet CZ Purlin Interchangeable Roll Former Machine With Per Cutting
One machine can produce differenct C/Z Purlins throught simple manual stepless adjustment, when to produce different profiles, no need to change the forming rollers. In the process, machine adopt automactic control model, it can auto pumch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc datas.
C/Z purlin roll former make up of decoiler, feeding, leveling, 2 sets hydraulic punching device, hydraulic cutting, speediness interchangeable forming machine, PLC control system, hydraulic stations, runout tables.
It is quick and easy to operate the machine, and beautiful appearance, high production efficiency, forming speed up to 15m/min.
This kind of machine can produce C , Z two profiles, through the exchange side of the roller up and down position to achieve C , Z purlin conversion , just need about half an hour to achieve saving time. This machine also can automatically adjust roller horizontal distance to achieve C or Z purlins pf the width with high precision , but also save time to increase production.
C Z Purlin Technical Parameter
1.0-3.0mm Steel sheet
Steel coil width
|Size of purlin||80-350mm|
||Main forming stations||18 steps|
|Forming Shaft||diameter 75 mm, 45# steel thermal refining|
|Roller Material||GCR15 bearing steel|
|Blade material||Cr12 mould steel with quenched treatment 60-62°|
|Punch Mould (if needed)||Cr12 quenched|
|Cutting system||Length-set cutting after roll formed|
|Control System||PLC and Inverter|
Decoiler 1 set
Levelling device 1 unit
Punching device 1 unit
Main roll forming machine 1 set
Hydraulic station 1 set
Hydraulic cutting 1 set
Control system 1 set
Run out table 2 units
Decoiler—feeding with guide—leveling—hydraulic punching—cutting— roll forming—runout table
Profile and Drawing Of Product
Packaging & Shipping
Packaging: Main body of machine is naked and covered by plastic film,loaded into container with steel rope and lock catch suitable for long-distance transportation, spare parts are covered by plastic film.
Delivery Time:75 days.
Warranty: 1 year warranty from date of shipment.
1: Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase. Repairs will be made free of charge.
2: Repairs will not be performed free of change even during the guarantee period in the follow circumstances
- Damage occurs due to a natural disaster
- Malfunction occurs due to user error
- Malfunction occurs due to modifications
- Malfunction occurs due to further movement or shipment after installation.
