|Material: Thickness:||1.5-2.5mm||Main Motor Power:||18.5KW|
|Hydraulic Station Power:||4KW||Working Speed:||9-10m/min|
|Cutting Material:||Cr12mov||Driven System:||Chain Drive 2 Inches|
|Material Of Shaft:||45# Advanced Steel (Diameter: 75mm), Thermal Refining||Roller Station:||19 Stations|
|Encoder:||Omron, Japan||Punching Method:||Punching Press|
metal forming machine,
plate rolling machine
Speed 10m/min Steel C Slotted Strut Channel Making Machine With Serration
1. Slotted Strut Channel Technical Parameter
1. Suitable Plate Material: thickness 1.5-2.5mm, Galvanized steel or blank steel
2. Working Speed: 9-10 meters / min
3. Forming Steps: 19 stations
4. Material of Roller: Gcr15, Quench HRC58-62 Plated Chrome
5. Material of Shaft: 45# Advanced Steel (Diameter: 76mm), thermal refining
6. Driven system: Chain Driven 2 inches
7. Main Power with reducer: 22KW WH Chinese Famous
8. Material of Cutting Knife: Cr12Mov, Quench HRC58-62
9. The whole machine is controlled by industry computer-PLC.
10 PLC--Panasonic, Japan English and Chinese Language
11 Touch Screen--Panasonic Japan
12 Encoder--Omron, Japan
13 Electric parts--Schneider
14 Cutting holder: hydraulic cutting
2. Slotted Strut Channel Technique data
Diameter: 460-520mm expansion.
Capacity: 3000kg per mandrel
Max Coil Width: 500mm
Drag tension brake with variable brake tension adjustment valve
2. Leveling device
1.7 rolls leveling, 3 rolls up and 4 rolls down
2.Diameter is Ø 70mm, chrome and HRC60 heat treatment to secure the smooth surface
3.Leveling Raw Material thickness:1.5-2.5mm
4.Max Leveling Raw Material width: 300mm
3. Feeding device
Feeding Servo feeding motor: 2.9 KW (Yaskawa, Japanese Brand)
Description: servo feeding can control the punching distance in precision, controlled by PLC, and the feeding tolerance can be+-0.05mm, the servo motor can control the speed, and can accept the input signal, and react quickly, and performance well, the touch screen can display the rotating speed, the length and the quantity, it can be controlled by the manual and auto modes.
4. Press machine
4.1 Series JH21-63
4.2 Brand name: Yangli
4.3 JH21 series press machine description:
JH21series open back press with dry clutch and hydraulic overload protector
◆ Welded body with steel plate and high intensity.
◆ Main motor is made by Siemens.
◆ Adopts combined pneumatic friction clutch and brake.
◆ Cluster gear adopts the flooding oil lubrication.
◆ Six-face rectangle lengthen guide; JH21-315B/400B adopts eight-face lengthen guideway.
◆ Equipped with hydraulic overload protecting device.
◆ JH21-25/25B/45 adopts manual shut height adjustment,among these types JH21-25/45 adopts scale display and JH21-25B with digital display.JH21-63 and above type adopts electric shut height adjustment with digital display.
◆ JH21-45 can equip with die set height adjustment motor, the value will be displayed by digital.
◆ JH21-25B, JH21-45 and above type equipped with balance cylinder.
◆ Duplex valves imported.
◆ Electric compelling grease lubrication system.
◆ Balancing cylinder adopts manual lubrication system.
◆ One set of blowing device.
◆ Controlled by PLC with international brand.
◆ Buttons, indicators, AC contactors, air circuit breakers and other controlling devices are imported from international brand.
◆ Equipped with optional air cushion device, automatic feed shaft and photoelectric protector,which can used to work with various automatic equipments.

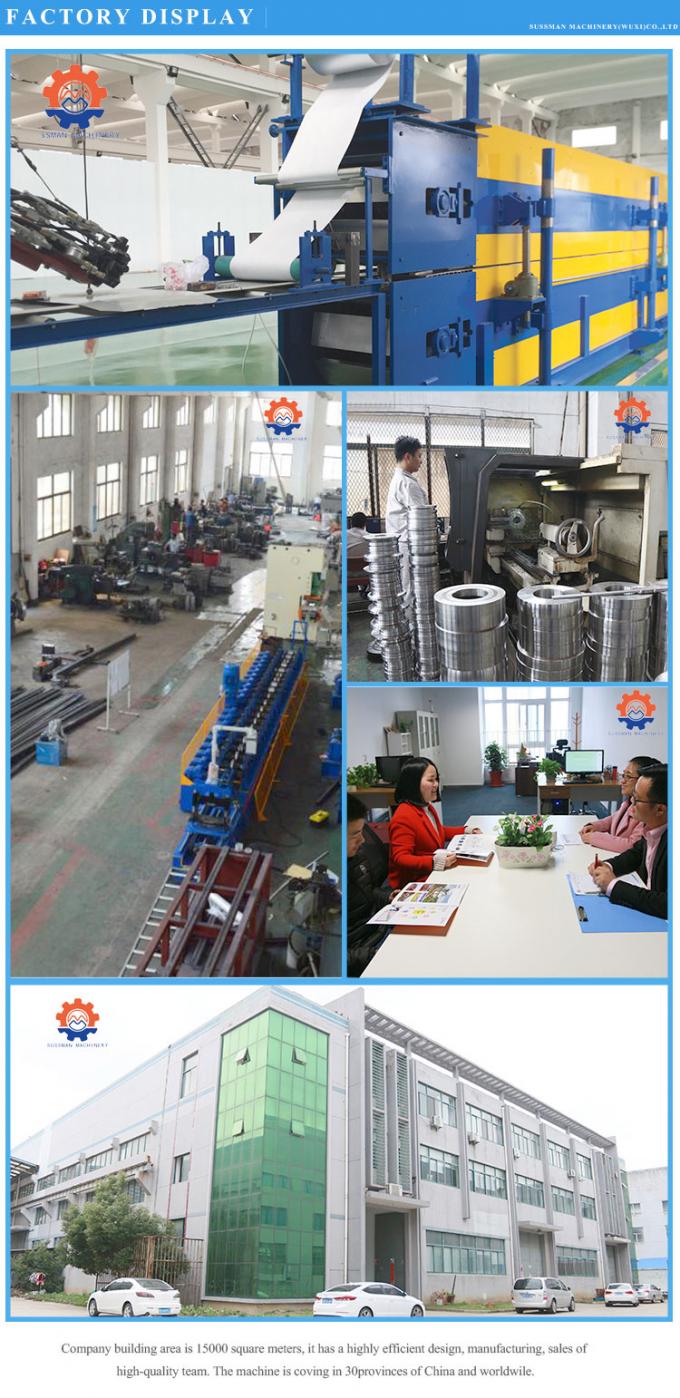

5. Our factory
Q:How is this machine's service life?
A:In the normal maintenance,the service life at least 10 years.
Q:How to maintenance?
A:If using frequently,best coating lubricant on the chain and two ends of the shaft every month,replace the hydraulic oil every 1-2 years.
Q:What can you do if the machine broken?
A:Our machine's warranty period is 1 year, if the broken parts can't repair, we can free send the new parts replace the broken parts to you within warranty period
Q:Can you make the machine according to my design or proto type?
A: Yes. We have an experienced team for working out the most suitable design and production plan for the machine
Q:How many workers operate this machine to manufacture?
A:Only 1-2 worker.
