SM - RD Spiral Roller Shutter Doors , Garage Shutter Door SGS CE ISO Passed
  • SM - RD Spiral Roller Shutter Doors , Garage Shutter Door SGS CE ISO Passed
  • SM - RD Spiral Roller Shutter Doors , Garage Shutter Door SGS CE ISO Passed
  • SM - RD Spiral Roller Shutter Doors , Garage Shutter Door SGS CE ISO Passed

SM - RD Spiral Roller Shutter Doors , Garage Shutter Door SGS CE ISO Passed

Place of Origin Wuxi,China
Brand Name Sussman
Certification SGS,CE,ISO
Model Number SM-RD
Product Details
Name:
High Speed Door
Material:
Aluminum Alloy With PU Foam
Thickness:
43mm
Rated Wind Velocity:
32m/s
High Foam Density:
≥50kg/m3
Max Width:
5000mm
Max Height:
7500mm
Opening Speed:
1.2-2.0m/s
High Light:

industrial roller doors

,

industrial roller shutter doors

Payment & Shipping Terms
Minimum Order Quantity
500 sets
Price
800-3500
Packaging Details
Main machine naked,control system was covered by plastic film
Delivery Time
20 days
Payment Terms
L/C, T/T
Supply Ability
10 sets per month
Product Description



High Speed Spiral Door / Aluminum Hard High Speed Rolling Shutter Door



Size

Max width

Max Height



5000mm

7500mm

Speed (frequency control system)

Max openning speed



2.0m/s

Door Pannel

Material

Thickness

color



Aluminum alloy with PU foam

43mm

Custmized

Windproof

Rated wind velocity



32m/s

Drive system



Hyperlift high speed door operator



Insulation performance

Rate



K≤1.5W/(m2•K)

Foam Density

High foam density



≥50kg/m3

Door weight

weight



10kgs/m2

Counterbalance system

Spring



Extension springs( 150K cycles life time)

Package

packing method



Wooden box

Door frame

Frame type



3.0mm color steel




Advantages



Break-in protection:
By installing roller shutters doors you can save your property from intruders, burglaries, vandalism attacks. They are strong and reliable and are not easy to remove as they are very tightly fitted to the doors.
Energy saving:
Roller shutters act as insulators and can help you to lower down energy consumption. Once you get these doors to install you will see a nice percentage of energy bill savings.
Weather protection:
They provide protection from hurricanes, floods, tornadoes, and other harsh weather conditions. In the UK, people remain alert from hail storms, heavy rains, severe storms etc, as these weather attacks occur more frequently, therefore, protection is a must-have. Noise reduction:
By installing rollers shutter doors you will notice the reduction in the exterior noise; noise pollution. This way your stress level will be maintained.
Light control
If you don’t want to enter the light inside your premises, roller shutters can be used to control the sun rays entering your property. Depending on your requirements, you can either completely lower down the shutters or leave them half open.

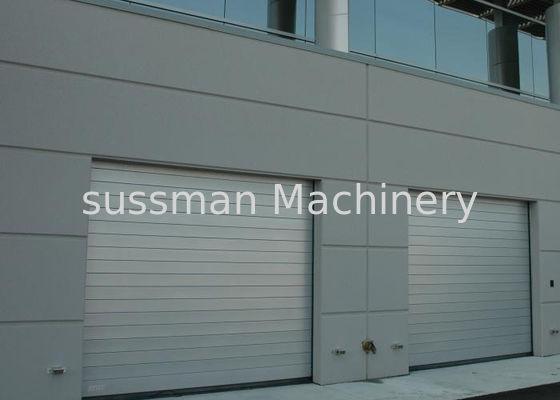

High speed door images



SM - RD Spiral Roller Shutter Doors , Garage Shutter Door SGS CE ISO Passed 0

SM - RD Spiral Roller Shutter Doors , Garage Shutter Door SGS CE ISO Passed 1
