Metal Roofing Sheet Rolling Former Machine , Cold Roll Forming Machine
This Glazed Tile Roll Forming Machine produce more artistic and more popular corrugation sheets in many countries. We can make Q tile, Monaco tile, Monza,Orientile profile. It can be formed materail thickness as 0.3-0.8mm.
Technical Parameter
| S.N | Items | Descriptions |
| 1 | Power supplier | 380V, 50HZ,3 phase |
| 2 | Thickness | 0.3-0.8mm color painted sheets or galvanized steel |
| 3 | Coil width | 840mm or as the customer's requirement |
| 4 | Rolling Speed | 8-12m/min |
| 5 | Roller Stations | about 16 stations |
| 6 | Roller Material | 45# forge steel, coated with chrome |
| 7 | Shaft Material and DIA | ￠76mm,material is 45# forge steel, Chrome with quenching |
| 8 | Main Motor Power | 7.5kw Anhui wannan Brand |
| 9 | Hydraulic Pressure | 12Mpa |
| 10 | Wall plate thickness | 16mm |
| 11 | Tolerance | +-1.5mm |
| 12 | Control | PLC |
| 13 | Way Of Drive | 1 inch single chain |
| 14 | Color Of The Machine | Blue |
| 15 | The size of the forming machine | 8700mm×1622mm×1400mm |
| 16 | Machine weight | 8000kg |
Advantage
1. Apart from above training course,we also provide 1 year warranty for all the easily broken part of the machine for free and whole-life technical service support
2 It is unit one, hydraulic station and control box is under machine frame to save more space
3.The surface of the final product is very smooth and beautiful without any scratch on the surface.
2. Anti-rust roller: CNC machine tooled, Plated with 0.05mm hard chrome .
4.Customized:design the machine according to your specification and profile drawing.(for your reference)
5. Heat treatment: Heat treatment for cutting frame to remove the steel stress, to avoid deformation.
6. Cutter blade: Cr12 mould steel with quenched treatment, long life time.
Application
Tiles Making Machine are looked beautiful, elegant and noble. It can be widely used in garden-style factory, traveling scenic spots, hotel, exhibition center, villa, civil construction and so on. It consists of feeding platform, main roll forming, shearing mechanism, hydraulic station, computer control cabinet out put tables and so on.

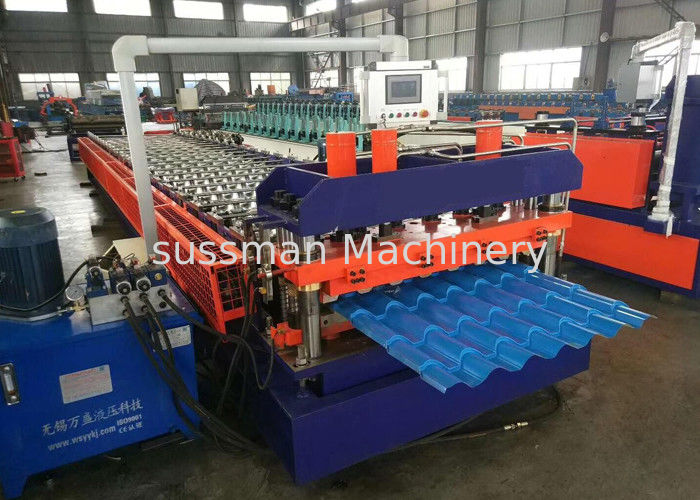

Machine photo
