Gcr15 High Steel C Purlin Roll Forming Machine , Steel Profile Roll Forming Machine

China Gcr15 High Steel C Purlin Roll Forming Machine , Steel Profile Roll Forming Machine supplier
Gcr15 High Steel C Purlin Roll Forming Machine , Steel Profile Roll Forming Machine supplier Gcr15 High Steel C Purlin Roll Forming Machine , Steel Profile Roll Forming Machine supplier Gcr15 High Steel C Purlin Roll Forming Machine , Steel Profile Roll Forming Machine supplier

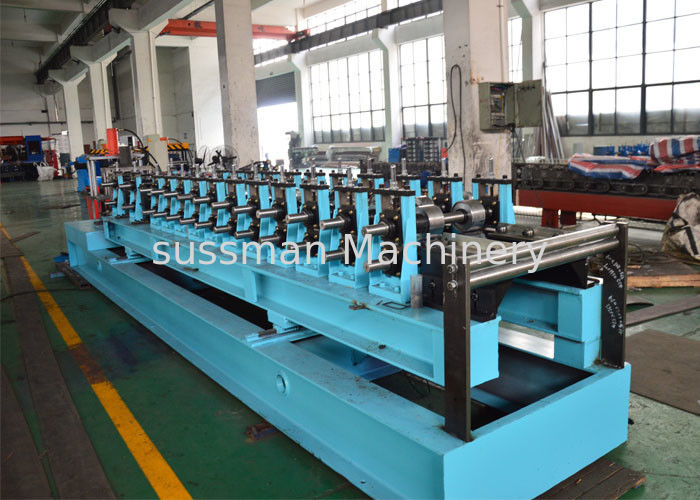

Large Image :  Gcr15 High Steel C Purlin Roll Forming Machine , Steel Profile Roll Forming Machine

Product Details:

Place of Origin: China
Brand Name: Sussman
Certification: SGS.CE.ISO
Model Number: SM-CP

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: Negotiable
Packaging Details: film and steel
Delivery Time: 60 days
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Roller Stations: 18 Stations Drive Mode: Chain Driven
Product Name: C Section Purlin Cold Roll Forming Machine Diameter Of Axis: 76mm
Pressure: 350-550MPA Material Of Rollers: GCr15 Quench HRC 58-60
Frame Type: Cast Arch Frame

Gcr15 High Steel C Purlin Roll Forming Machine , Steel Profile Roll Forming Machine



1.The C purline machine can produce several different sizes. And can adjust the size by automatically.



2.This C purline machine is simple and easy operating.



3.Especally with low prices cost. it is helpful to the boss who is first begin to start this C purline producing business.



4.We can add the hydraulic punching device for you, you can choose to punch the holes on the purlin or not, the holes used for the installation when using.





Material of coil

Material Thickness

1.5-3.0mm



Width

from 80mm to 300mm

De-coiler

Weight

3 ton

Forming system

Rolling Speed

0-12 m/min

Roller Stations

About 18 roller stations

Roller Material

Gcr15 Steel with quenching 50-55HRC

Shaft Material

45# Steel

Main Motor Power

11KW

Hydraulic cutting Power

7.5KW

Cutting system

Material Of Cutting

CR12 with quench treatment

Hardness

HRC58-62

Tolerance

+-1.5mm

Electrical control system

Electric Source

380V, 50HZ, 3phase

Control System

PLC with touch screen

Weight

About 6 tons

Way Of Drive

Chain driven






Each part of C Purlin Machine

1.3T Manual De-coiler



1: Coil inner diameter: 460-520mm

2: Out Diameter: 1200 mm

3: Coil max width: 500mm

4:Max carrying capacity: 3 tons




2. Punching and cutting device


1:Cutting power by hydraulic,7.5KW

2:Hydraulic working pressure: 20Mpa

3:Material of blade:Cr12Mov with heat

treatment 58-60°

4:Length measuring: Automatic encoder

length measuring, brand: Omron

5:Tolerance of length: 3000mm+/- 1.5mm





4.Control Box


1. Adopted PLC , transducer, touch panel to ensure high speed with stability, precision and lifetime.

2. Voltage: 380 v 50 hz 3 phase (as customer's request)

3. Language: English and Chinese

4. Automatic length measurement

5. Automatic quantity measurement

6. Length Tolerance: 3m±1.5mm



Gcr15 High Steel C Purlin Roll Forming Machine , Steel Profile Roll Forming Machine




If there are any other customized machines that you are interested in, please contact us for further discussion. We will provide you for the most suitable machine solution for your market.
