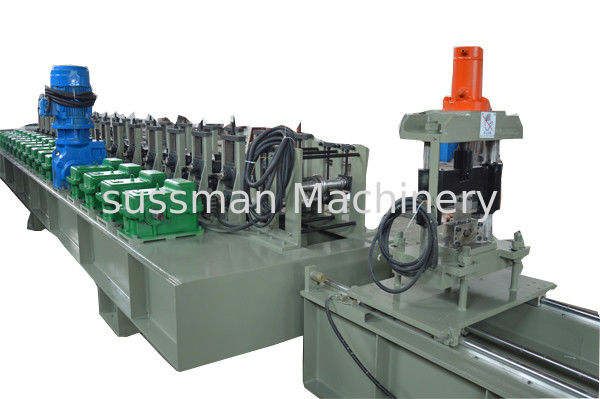

16 Stations Chain Drive Vineyard Post Making Machine With Hydraulic Cutting

China 16 Stations Chain Drive Vineyard Post Making Machine With Hydraulic Cutting supplier
16 Stations Chain Drive Vineyard Post Making Machine With Hydraulic Cutting supplier 16 Stations Chain Drive Vineyard Post Making Machine With Hydraulic Cutting supplier 16 Stations Chain Drive Vineyard Post Making Machine With Hydraulic Cutting supplier 16 Stations Chain Drive Vineyard Post Making Machine With Hydraulic Cutting supplier

Large Image :  16 Stations Chain Drive Vineyard Post Making Machine With Hydraulic Cutting

Product Details:

Place of Origin: China
Brand Name: SUSSMAN
Certification: CE, SGS, ISO9001
Model Number: SS-VY

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: USD29999-39999 per set
Packaging Details: Standard package with film, plastic and steel wire. (or customized)
Delivery Time: 60-90 working days after payment
Payment Terms: L/C, T/T
Supply Ability: 10 sets per month
Contact Now
Detailed Product Description
Material: 1.2-2mm Galvanized Steel Sheet G550 Forming Stations: About 16 Stations
Roller Material: Gcr15, Coated With Chrome, Quenching Shaft Material: 60mm , 45# Forge Steel
Transmission: By Chain Material Of Cutting: Cr12Mov With Quench HRC58-62°
Cutting Tolerance: 6m+-1.0mm Type: Vinyard Post Roll Forming Machine



16 Stations Chain Drive Vineyard Post Making Machine With Hydraulic Cutting



Technical Parameter



Item NO



Description



Offered specification

1.0 Roll forming machine
1.1 Rolling speed 2-3m/min
1.2 Rolling thickness 1.2-2mm
1.3 Raw material Galvanized steel sheet G550
1.6 dimension 6500×600×1200(mm)
1.7 Effective width 50mm
1.8 Roller stations

About 16 stations



1.9 Roller material Gcr15, coated with chrome, Quenching
1.10 Shaft diameter Φ60mm ,material is 45# forge steel
1.11 Transmission By Chain
1.12 Material of chain 45# forged steel with frequency quenching, 12A
1.13 Main Motor 7.5kw
1.14 Material of cutting Cr12Mov with quench HRC58-62°
1.15 Cutting Tolerance 6m+-1.0mm
1.16 Voltage 220v, 60hz, 3phase





Main Components



No Name Type quantity
1 2 ton double heads de-coiler RF-VY 1 set
2 Hydraulic punching RF-VY 1 set
3 Main roll forming machine RF-VY 1 set
4 Control box RF-VY 1 unit
5 Hydraulic station RF-VY 1 unit
6 Cutting device RF-VY 1 unit
7 Out tables RF-VY 2 units



  • Double heads De-coiler

Diameter: 460-520mm expansion.

Expansion: manually

      Capacity: 2000kg per mandrel/ 2000kg per mandrel

Max Coil Width: 500mm

Drag tension brake with variable brake tension adjustment valve



Working Flow



Uncoiling—Feeding with guide—hydraulic punching—Roll forming—cutting—Products collecting












Profile Drawing
