50mm Automatic U Shape Ceiling Channel Roll Forming Machine for Square Ventilation
Technical parameter
Item | Technical data |
Steel sheet thickness | 0.4-0.7mm (depend on requirement ) |
Hydraulic power | 7.5kw |
Transmission way | Chain |
Capacity of Decoiler | 3 Tons passive |
Forming Speed | 0-30m/min |
Roller Groups | about 20 main rollers |
Roller Material | Gcr15, Quench HRC58-62 Plated Chrome |
Roller Diameter | 75mm |
Principal Axis | 45# high grade steel with quenching treatment |
Main Motor Power | 11Kw |
Dimension | 9500*800*1200mm |
Weight | 8 Tons |
PLC | Delta |
Touch Screen | Delta |
Electric parts | Schneider |
Main Components
S.N | Equipment name | Quantity |
1 | 3 T passive un-coiler | 1 set |
2 | Main roll forming machine | 1 set |
3 | Following cutting device | 1 set |
4 | Hydraulic station | 1 set |
5 | Control system ( including control box) | 1 set |
6 | 4M Out tables | 2 units |
7 | Spare parts | 1 package |
8 | Safety cover | 1 set |
Ceiling Channel Machine Working Flow
Uncoiler- levelling device - main roll forming machine (including shape rectification)- hydraulic station - PLC cabinet - cutting blade - output table
Function:
With aluminum sheet as raw material, uncoiling—roll forming—cut to length—auto unloading.
Lift sheets to uncoiler with forklift or crane, then manual guide material to roll forming machine for continuous roll forming, rotary encoder for length setting and auto shearing, then next sheet will push product out, whole production auto continuously production.

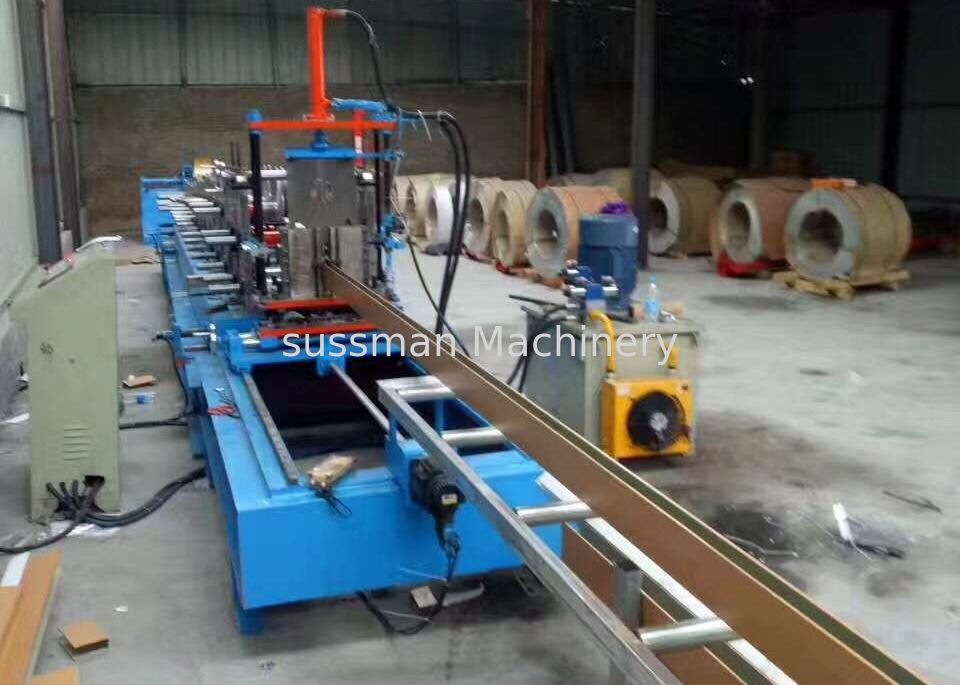

Machine Photo
