0.4-0.7 mm Aluminum U Shape Channel Roll Forming Machine for Ceiling System
Technical parameter
Item | Technical data |
Steel sheet thickness | 0.4-0.7mm (depend on requirement ) |
Hydraulic power | 7.5kw |
Transmission way | Chain |
Capacity of Decoiler | 3 Tons passive |
Forming Speed | 0-30m/min |
Roller Groups | about 20 main rollers |
Roller Material | Gcr15, Quench HRC58-62 Plated Chrome |
Roller Diameter | 75mm |
Principal Axis | 45# high grade steel with quenching treatment |
Main Motor Power | 11Kw |
Dimension | 9500*800*1200mm |
Weight | 8 Tons |
PLC | Delta |
Touch Screen | Delta |
Electric parts | Schneider |
Main Components
S.N | Equipment name | Quantity |
1 | 3 T passive un-coiler | 1 set |
2 | Main roll forming machine | 1 set |
3 | Following cutting device | 1 set |
4 | Hydraulic station | 1 set |
5 | Control system ( including control box) | 1 set |
6 | 4M Out tables | 2 units |
7 | Spare parts | 1 package |
8 | Safety cover | 1 set |
Ceiling Channel Machine Working Flow
Uncoiler- levelling device - main roll forming machine (including shape rectification)- hydraulic station - PLC cabinet - cutting blade - output table
Feature:
The profiles of groove square ventilation (U channel, U shape) is one of the productions of ceiling materials in recent years. Aluminium rectangular tube with open vision, ventilation, air permeability, the neat and distinct lines reflected the modern style of simplicity and clean style and convenient for installation and removal, which has become one of the popular decoration products.
Aluminium plate and aluminium rectangular tube through continuous rolling or cold bending forming, the installation structure is special keel card buckle type structure, installation method similar to the ordinary bar gusset plate, simple and convenient, suitable for indoor decoration

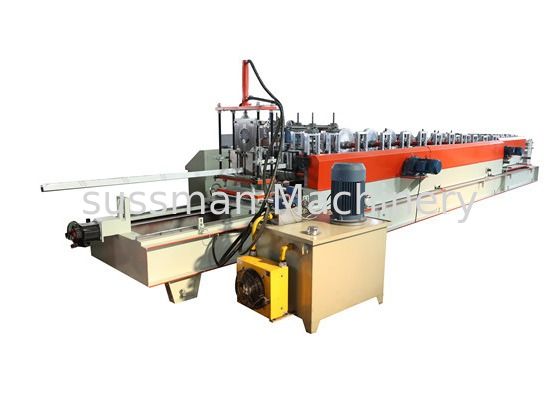

Machine Photo
