Roof Panel Roll Forming Machine
>
|
|
| Place of Origin | Wuxi Jiangsu China |
| Brand Name | Sussman |
| Certification | CE,SGS,ISO |
| Model Number | SM-GT |

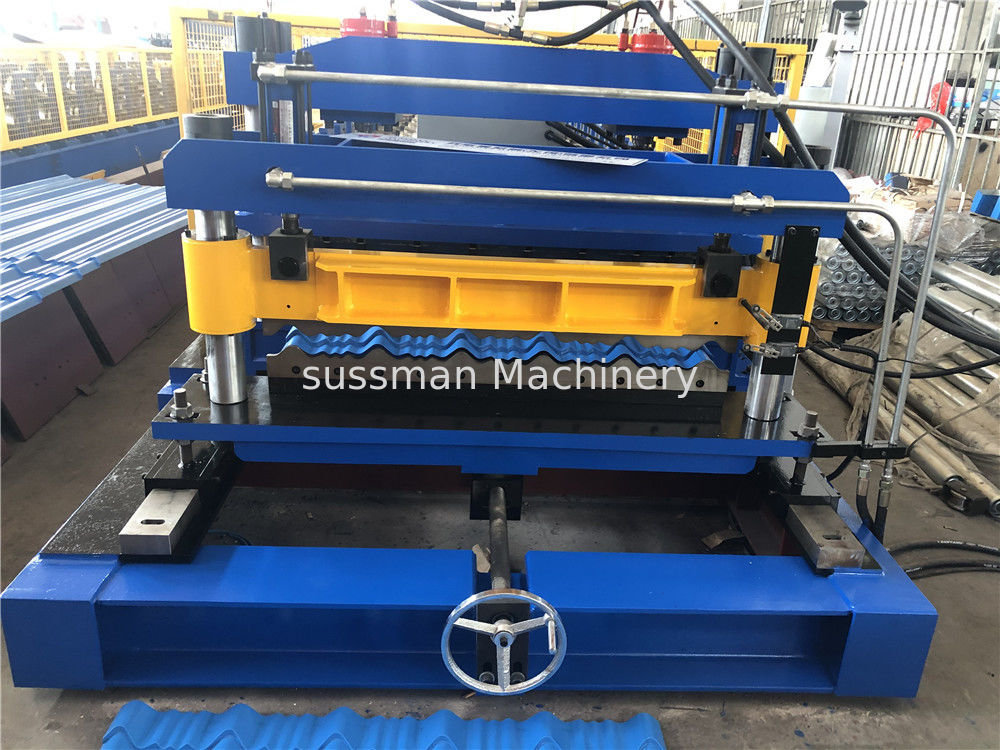

Chain Drive Colored Steel 820mm Glazed Roof Tile Roll Forming Machine Roof Panel Roll Forming Machine
Glazed Tile Technical Parameter
|
Feeding form
|
Manual tightening, passive feeding
|
|
Feeding rack load
|
5T
|
|
frame
|
350H section steel welding
|
|
Forming machine guide feed frame
|
Side-skate peak distance
|
|
Forming machine form
|
Wall plate chain drive
|
|
Shaft diameter
|
￠75mm, solid shaft
|
|
Chain
|
1 inch single row
|
|
Forming machine motor power
|
5.5KW
|
|
Forming speed
|
8-10m / min
|
|
Number of Rollers
|
13 Row
|
|
Roll material
|
45 # steel forged parts
|
|
Hydraulic station motor
|
4kw
|
|
Hydraulic station oil pump
|
Gear pump
|
|
Cut off method
|
Hydraulic shear
|
|
Forming scissors material
|
Cr12
|
|
Shear blade heat treatment
|
HRC58 ° -60 °
|
|
Rolling thickness
|
0.3-0.8MM
|
|
Material development width
|
820mm
|
|
Length sizing accuracy
|
± 2mm
|
|
Computer control
|
PLC
|
|
drive
|
Servo motor drive
|
Glazed Tile Main Components
| S.N |
Equipment name |
Quantity |
| 1. |
5T passive un-coiler(optional) |
1 set |
| 2. |
Main roll forming machine 16 stations drived by chain |
1 set |
| 3. |
Hydraulic cutting |
1 set |
| 4. |
Control system (including control box) |
1 set |
| 5. |
Out tables |
2 sets |
Working Flow of Glazed Tile
Decoiler----Feeding---Roll forming---Cutting---Run out tables
Profiles of Glazed Tile
Our Service
Guarantee period: 12 months free service/ pay service all the machine life
Installation and training:
If buyers visit our factory and check the machine, we will teach you how to install and use the machine, and also train your workers/technician face to face.
Without visiting,we will send you user manual and CD to teach you to install and operate.
If buyer needs our technician to go to your local factory,please arrange board and lodging and other necessary things.
