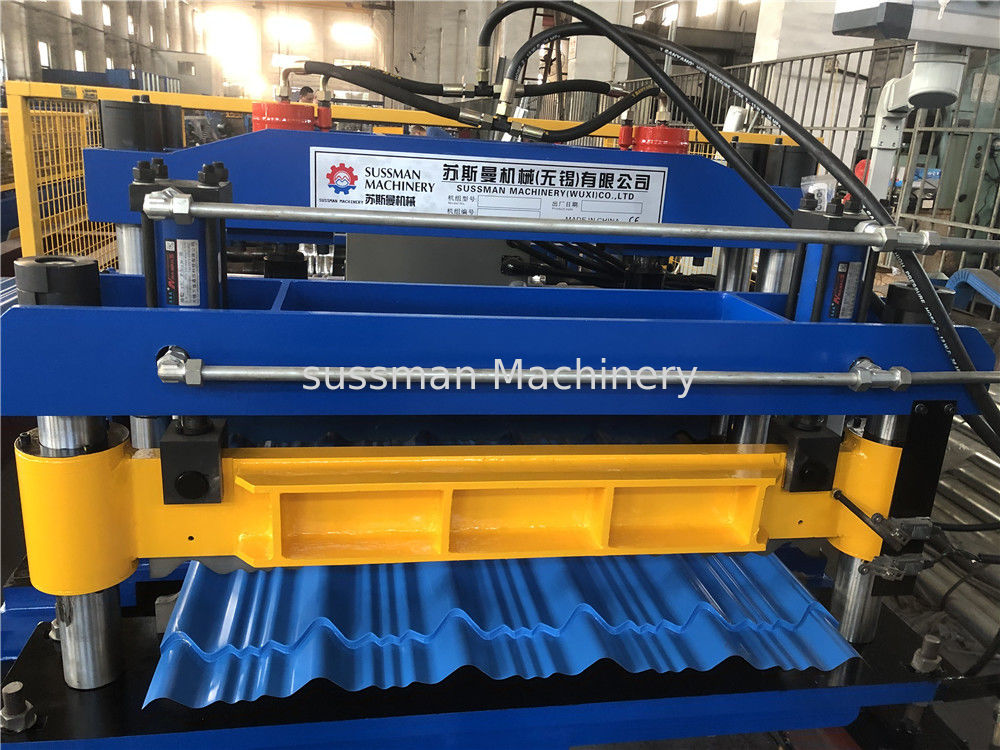

Colored Steel 840 Mmglazed Tile Sheet Roof Press Making Machine Roll Forming Machinery
Glazed Tile Technical Parameter
Product | Glazed roof roll forming machine |
MODEL | different for you to choose(Our engineer and designer team service for you ) |
Base material | Hot dipped galvanized steel |
Thickness | 0.18mm-0.8mm |
Effective Width | 600-1250mm (according to your need) |
Roller material | 45# steel |
Color | All colors(standard international color)or customers samples’ color |
Control System | Panasonic PLC |
power | 7.5KW |
Technique | Cold-rolled, hot-dipped, galvanizing ,color-coated,corrugated |
Cutting drive | Decelerating motor + Chain drive gear all by high-frequency |
Cutting&Hydraulic type | Double guide pillar |
Glazed Tile Main Components
No | Items | Quantity | Remarks | |
1 | Manual/Hydraulic Uncoiler | 1set | Up to customer | |
2 | Main forming machine | Pre-cutting device | 1set | Up to customer |
Feeding device | 1set | |||
Hydraulic system | 1set | |||
Roll forming system | 1set | |||
Hydraulic punching stamp device | 1set | |||
Post cutting device | 1set | |||
Protective cover | 1set | Up to customer | ||
3 | PLC control system with touch screen | 1set | ||
4 | Run out table | 4pcs | Up to customer |
Working Flow of Glazed Tile
Decoiler----Feeding---Roll forming---Cutting---Run out tables
Profiles of Glazed Tile
Application
