CZ Purlin Roll Forming Machine
>
|
|
| Place of Origin | China |
| Brand Name | Sussman |
| Certification | SGS.CE.ISO |
| Model Number | SM-CP |
Galvanized Steel Profile C Z Channel Cold Roll Forming Machine Roll Former C Z Purlin Bending Machine
| Name | C Z U Purlin Roll Forming Machine | |
| 1 | Suitable raw material | PPGI/PPGL/GI/GL Steel Coils |
| 2 | Thickness of coil sheet | 1.5-3.0mm |
| 3 | Feeding Coil width | 200-500mm |
| 4 | Effective width | 100-300mm |
| 5 | Under frame | 400H-beam |
| 6 | Diameter of Soild shaft | 76mm, high grade 45# steel, finish turning, cylindrical grinding, with keyway |
| 7 | Roller |
High grade Gcr15, processed by CNC lathe, Quenched and tempered treatment, hard chrome coated 0.05-0.07mm |
| 8 | Thickness of middle plate | 18mm |
| 9 | Forming stations | 13 |
| 10 | Drive type | By chain(2.0 inch) |
| 11 | Power of main motor | 15kw with Cycloidal reducer, Lichao, Shanghai |
| 12 | Power of pump station | 5.5kw |
| 13 | PLC | DELTA, TAIWAN / Mitsubishi, Japan |
| 14 | Material of cutting blade | Cr12Mov, quenching 58-62℃ |
| 15 | Frequency converter |
It has the advantage of slowing down before cutting, to ensure thelength accuracy(±1mm, far better than industrial standard ±3mm). |
Equipment components:
Man-made uncoiler, Roll forming machine, computer control system, hydraulic control system, punching system
Our products are widely used in various industrial factory, civilian building, warehouse and easy steel building manufacturing, and have features such as nice appearance and durable.
Main features of quickly change C to Z purlin roll forming machine
The advantages of C to Z purlin machine AUTOMATIC size-change type are as follows:
1.Produce different purlin size without changing rollers or spacers.
2.No need changing cutter for different size.
3.Easy operation, low maintenance cost
4.Infinite sizing(any size within machine range),help to save material
5.Optional Punch hole at any position of purlin web side and flange side
Each part of C Purlin Machine
1.3T Manual De-coiler
Diameter: 460-520mm expansion.
Capacity: 3 Tons
Max Coil Width: 500mm
2.Leveling device
Put the raw material(steel plate) through the beach to manufacture and process
Diameter is Ø 76mm, chrome and HRC60 heat treatment to secure the smooth surface.
7 rolls leveling, 3 rolls up and 4 rolls down,it can guarantee that the products are neat, parallel and everything is uniformi

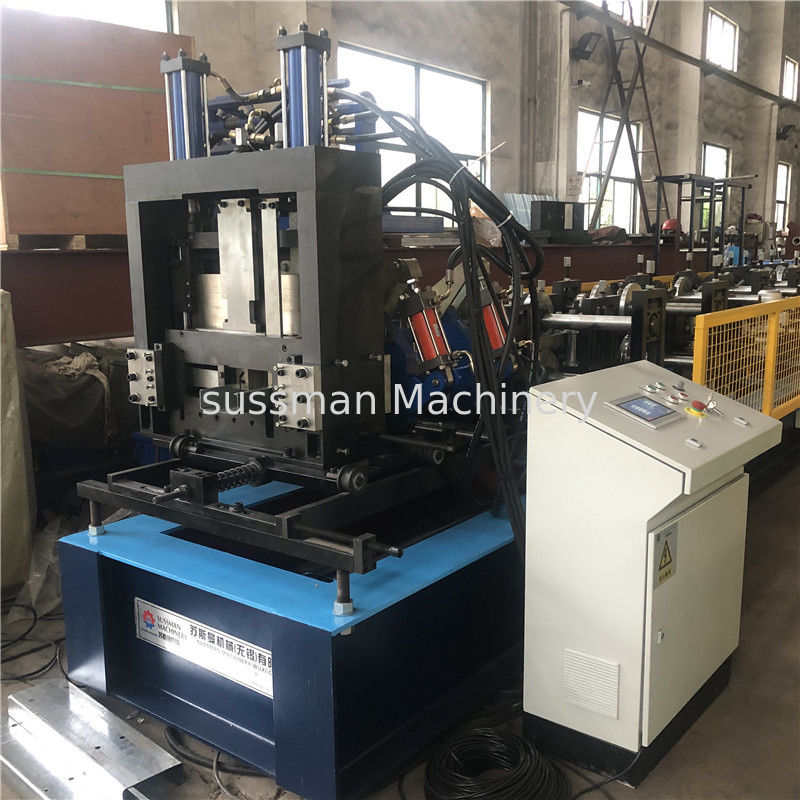

3. Punching and cutting device
It adopts the hydraulic drive and automatic location to decide the
dimension and cut the target products
hydraulic station pressure: 20 MPa
Hydraulic coil:46#
Components: It contains one set of blade, one hydraulic cylinder and one cutter machine
cutting blade material:Cr12 Mov steel with high treatment
4.Control Box
(1) Power supplier: 380V, 50 Hz, 3Phase (adjusted with the requestment)
(2). Control panel: Button-type switch and touch screen
(3) The language in the touch screen: English and Chinese
(4) Length & quantity measurement automatically.
(5) Length & quantity controlled by PLC.
(6) Length inaccuracy can be amended easily.
