Stud And Track Roll Forming Machine
>
|
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |
2t Hydrauli Un-Coiler 0.7mm~1.2mm Thickness Light Gauge Metal Framing Steel Frame Machine
Main Accessories:
(1) Main Forming Machine;
(2) 2T Hydraulic Uncoiler;
(3) Automatic Post Punching & Cutting Device;
(4) Hydraulic Motor System;
(5) Industrial Computer Controlling System
(6) Hydraulic Post-cutter;
(7) Automatic Printing Device;
(8) Vertex BD Design Software;
(9) Run Out Table;
(10) Tools;
Control system
With independent intellectual property rights LGS Maker production control software can insure the system be used in all kinds of working environment with its industrial grade computer.
1. 17 inch color industrial grade computer can choose keyboard, mouse or touch screen operation. Switching manual or automatic function at will.
2. With different languages to choose in operation interface, it’s easy to handle output data in design software can be copy by USB or teletransmission by Internet.
3. Read design data directly while in production, without manual intervention.
4. Real-time monitoring whole production process by graphics, which can show which work piece is working, the length, pcs and material condition etc.
5. Monitor and control the production process with automatic fault detection and alarm system to protection.
6. Improve efficiency to add, modify or cancel the task at any time, no matter single rob piece or whole unit. It can solve the scrap problem caused by material defect or personal error.
7. Data is automatically saved after the machine shut down at normal case. Accidental power-off protection device is optional.
8. System is permanent free use with independent intellectual property rights.
Main Specifications
Standard framing size : 89*41*13mm , thickness 0.75~1.2mm (Gauge 22 ~ Gauge 18)
| Item | Description |
| Automatic Decoiler | |
| Loading Weight | 2000kgs |
| Coil Inner Diameter | φ430~520mm |
| Coil Outer Diameter | φ1300mm |
| Strip width | 100~450mm |
| Strip thickness | 0.7~1.2mm |
| Profile description | |
| C Profile size | 89*41*13mm |
| Roll Forming Machine | |
| Dimension | 5000*1000*1800mm |
| Weight | 3500kgs |
| Roller grade | Material: SKD-11 |
| Roller Processing Technique | CNC maching,heat treatment HRC58-60 |
| Shaft grade | 40Cr Steel |
| Shaft processing technique | CNC maching, quenching and tempering HRC28-32 |
| Punching Device | dimpling with screw holes,service hole,web notch,lip notch, truss end chamfer, swage, crimp |
| Control System | |
| Control Device | One Lenovo laptop, a control box inside of based frames of the machine |
| Design Software | Vertex BD from AU |
| Leaser Printing Device | USA Matthews Leaser Printing Device for Painting spray logo and installation indicating number |
| Remote-control Device | Wireless remote-controller controls machine to go forward or back or stop |
| Main brand | PLC(self-developed),Relay(Schneider),Proximity switch(Schneider),Encode(Omron) |
| Motor and hydraulic System | |
| Servo motor | 5.5kw with precious gear reducer |
| Hydraulic station | 7.5kw , 200L tank |
| Run-out Table | |
| Length | 3M with side pnematic support |
| General introduction | |
| 1. Windows system touch panel. Quick importing NC instructions Via network or USB interface. | |
| 2. Visual work process monitoring | |
| 3. Vertex BD Software | |
| 4. German Bosch Rexroth hydraulic system. Quick loading and unloading mould design | |
| 5. High quality die steel. Vacuum hardening treatment. CNC Machine Center Finishing | |
| 6. Built-in maintenance free ink jet printer | |
| 7. Perfect forming. Accurate sizing | |
1.The wall, floor and roof structure is produced automatically, saving design time.
2.Automatic 3D molding, insure 100% accuracy.
3.With analysis project function, the software can calculate bearing capacity.
4.Create frame work 3D map and 3D decoration view.
5.The whole building frame can be resolve to independent unit drawing.
6.Calculate the bill of material, including the needed steel, plates, thermal insulation material,doors and windows, screws and other matching material.
7.Create the processed data including the marked work piece, docking with the equipment.
8.Software maintenance and training fee.
9.Maintenance and supporting fee is USD 2200.00/Year. It’s for software update and optional.

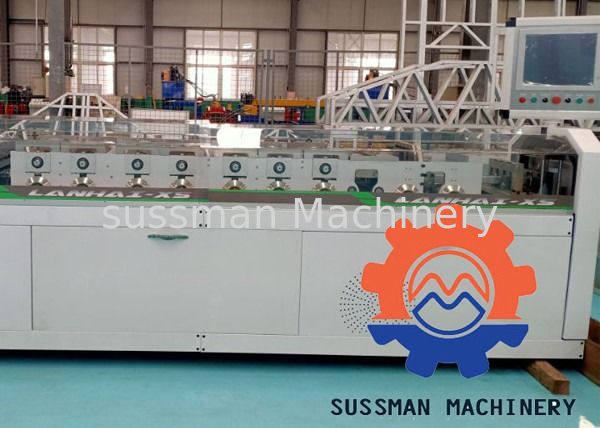

Our machine photo
