Stud And Track Roll Forming Machine
>
|
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |
Width Height Adjustable 40-200mm Stud Track Drywall Roll Forming Machine
Technical Parameter
Width adjustable by PLC automatically
| Items | Specifications | |
| Material of coil | Material Thickness | 0.85-1.6mm G550 Galvanized coils |
| Punching device | Hydraulic punching device | 1 set |
| Forming system | Rolling Speed | 10 m/min with driven chain |
| Roller Stations | About 15 stations forming | |
| Roller Material | Gcr15 Steel with quenching | |
| Shaft Material |
45# Steel Diameter 75mm shaft
|
|
| Main Motor Power | 7.5 kw | |
|
Cutting |
Material Of Cutting | CR12 with quench treatment |
| Hardness | HRC58-62 | |
| Tolerance | +-1.5mm | |
| Cutting blade | 2 sets of cutting blade | |
| Electrical control system | Electric Source | 380V, 50HZ,3 phase, according to buyer’s request |
| Control System | PLC with touch screen | |
| Weight | About 5 tons | |
| Way Of Drive | 1 inch single chain | |
| Size of machine | Length 7500mm* Width 800mm* Height 1000m |
Machine List
| 3 tons hydraulic de-coiler | 1 set |
| Main roll forming machine with logo | 1 set |
| PLC Control box | 1 unit |
| Hydraulic cutting device | 1 unit |
| Hydraulic punching device | 1 unit |
| 6 meters Simple auto stacker | 1 unit |
Profile Drawing
Technological process:
Decoiler—feeding with guide—Hydraulic punching—Roll forming—Cutting—Products collecting

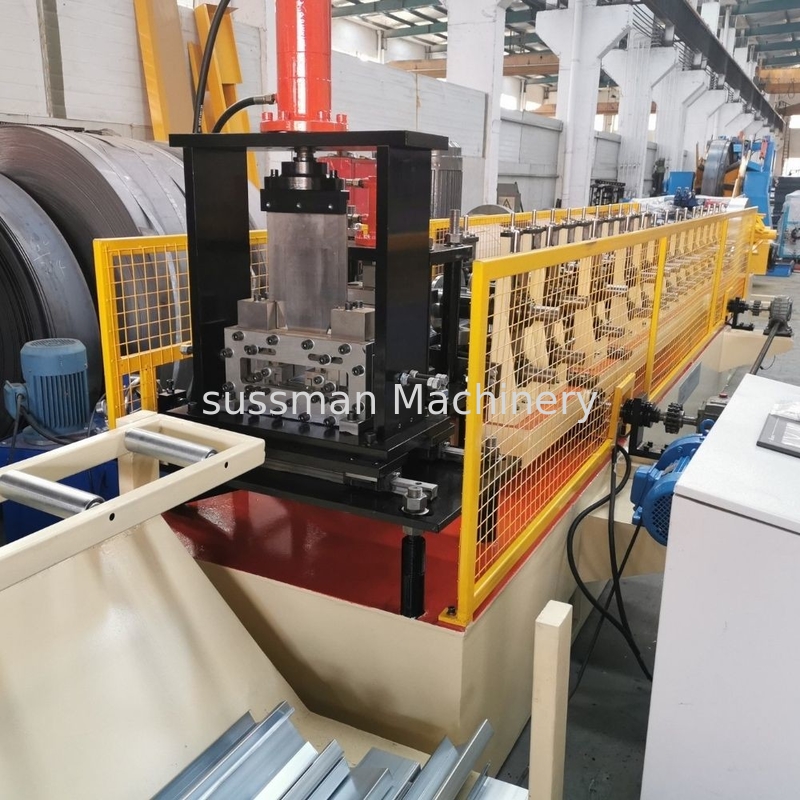

Machine Pictures
