Stud And Track Roll Forming Machine
>
|
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |

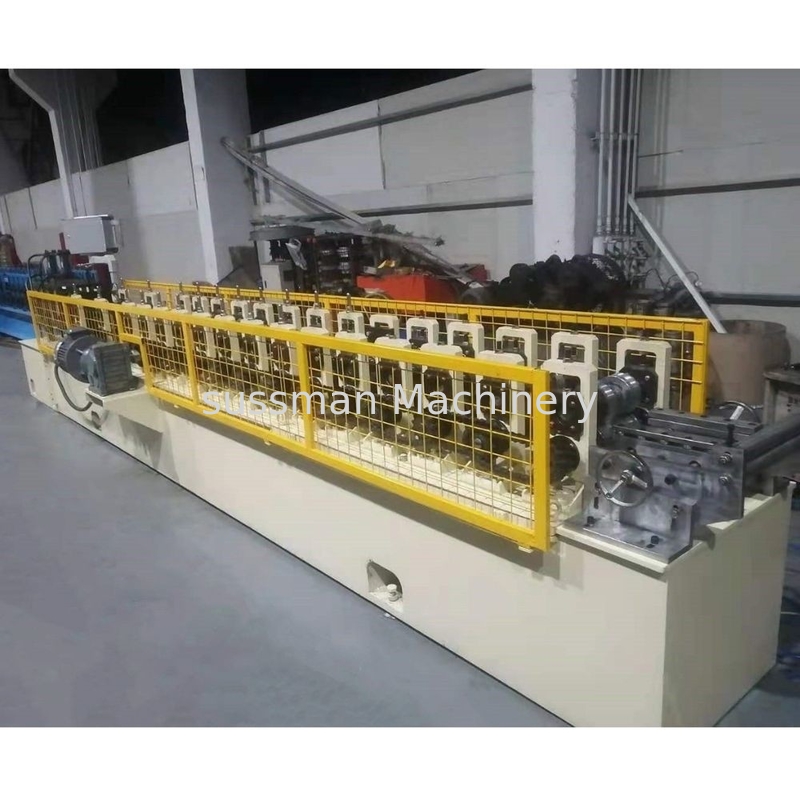

H Punching Style C U Profile Drawings Stud Track Drywall Roll Forming Machine
Technical data
| Items | Specifications | |
| Material of coil | Material Thickness | 0.3-1.2mm galvanized steel |
| De-coiler | Weight | 3 ton passive decoiler |
| Forming system | Rolling Speed | 10 m/min |
| embossing | 1 set of rolls | |
| Roller Stations | About 13 stations forming | |
| Roller Material | Cr40 Steel with quenching | |
| Shaft Material |
45# Steel Diameter 75mm shaft
|
|
| Maim Motor Power | 5.5 kw | |
| Hydraulic cutting Power | 4 kw | |
|
Cutting system |
Material Of Cutting | CR12 with quench treatment |
| Hardness | HRC58-62 | |
| Tolerance | +-1.5mm | |
| Cutting blade | 1 set of cutting blade | |
| Electrical control system | Electric Source | 380, 50HZ,3 phases |
| Control System | PLC Delta | |
| Weight | About 4 tons | |
| Way Of Drive | 1 inch single chain | |
| Size of machine | Length 7500mm* Width 600mm* Height 800m |
Working Flow:
Decoiler—feedingwithguide—Rollforming—punching&Cutting—Products collecting
Profile Drawing:
with punching holes
To make all of the 6 profiles in one machine by changing spacers
Machine List:
| 2 ton double heads de-coiler | 1 set |
| Hydraulic punching device | 1 set |
| Main roll forming machine | 1 set |
| Cutting device | 1 set |
| Cassettes for different flange | 2 sets |
| PLC Control box | 1 unit |
| Hydraulic station | 1 unit |
| 4 meters out table | 1 unit |
| Safety cover | 1 set |
| Extra punching die | 1 set |
| Extra cutting blade | 1 set |
| Embossing | 1 set |
Cassettes:
Loading Pictures:
