| Place of Origin | WUXI CHINA |
| Brand Name | SUSSMAN |
| Certification | CE |
| Model Number | SS-FD |

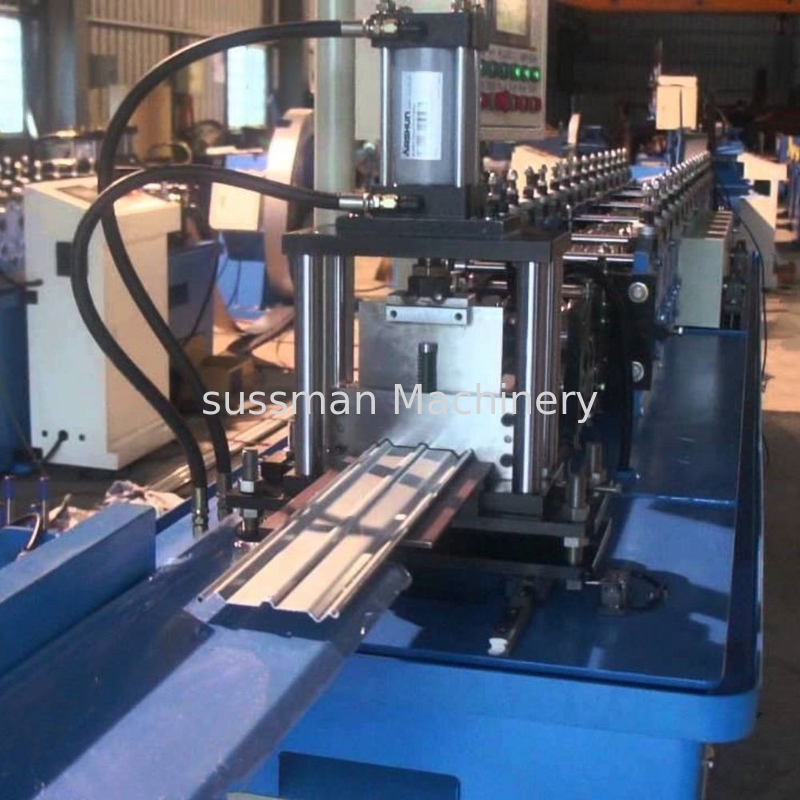

Width Adjustable Fire Damper Blade Roll Forming Machine 100mm-250mm Width
Technical Parameter
| Items | Specifications | |
| Material of coil | Material Thickness | 0.6-1.0mm |
| Un Coiler | 3 tons manual | |
| Forming system | Rolling Speed | About 10m/min |
| Roller Stations | About 12 stations feeding | |
| Roller Material | Gcr15 coated with chrome | |
| Maim Motor Power | 5.5 kw | |
| Motor cutting Power | 4kw | |
Cutting | Material Of Cutting | CR12mov with quench treatment |
| Hardness | HRC58-62 | |
| Tolerance | +-1.5mm | |
| Electrical control system | Electric Source | 415 V, 50HZ,3 phase |
| Control System | PLC (Panasonic) as list in the note | |
| Weight | About 4 tons | |
| Way Of Drive | 1.2 inch chain |
Machine list
| Machine list | 3 ton passive de-coiler | 1 set |
| Main roll forming machine | 1 set | |
| PLC Control box | 1 unit | |
| Hydraulic station | 1 unit | |
| Out table | 1 unit | |
| One 20 feet GP Container | ||
Technological process:
Uncoiling—feedingwithguide———Rollforming——Cutting ——Products collecting
Profile Drawing
Samples
Application:
Advantage for Fire Damper
1. Reasonable Price
2. High Quality
3. 12 Months Warranty
4. More Than 10 Years Experience
5. Durable
6. Reliable
After-sale Serive
- The seller take responsibility to installation and commissioning of the equipment and free training. After machine arrive the destination, by the request of the buyer , the seller will provide 1 technical engineer to guide installation and training , and the buyer should give the technical person with full cooperated.
- Installation period: about 5 days after the complete preparation by the buyer such as the foundation and all necessary accessories.
- Training time: 5 days.
- Before departure of the engineers from seller, the buyer should pay for installation and commissioning fee 100$/day to the point account of the seller. The two-way ticket,visa, food, hotel , the translator and insurance are all should provide by buyer with full responsibility.
-The seller supply technical data (including forming mould drawing, electrical elements drawing and equipment drawing etc.)
