Stud And Track Roll Forming Machine
>
|
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |
0.4-0.9mm Thickness 60-200mm Width Galvanized Gypsum Metal Profile C U Drywall Roll Forming Machine
1. Technical Parameter
|
Light steel keel roll forming machine |
stud |
track |
|
Sample |
|
|
|
Roller stations |
15 |
13 |
|
Thickness |
0.4-0.9mm |
0.4-0.9mm |
|
Cutting type |
Hydraulic cutting |
Hydraulic cutting |
|
Shaft type |
solid |
solid |
|
Roller processing |
Quenching,chroming |
Quenching,chroming |
|
PLC |
Delta |
Delta |
|
Computer screen |
Touch screen |
Touch screen |
|
Main motor |
7.5KW |
7.5KW |
|
Hydraulic motor |
4KW |
4KW |
|
Board thickness |
35mm |
35mm |
|
Transmission |
gear |
gear |
|
Shaft diameter |
60mm |
60mm |
2. Machine Components
| 3 tons electric decoiler | 1 set |
| Servo feeder | 1 set |
| Hydraulic punching device | 1 set |
| Roll forming machine | 1 set |
| Hydraulic station | 1 set |
| Electric Control box system | 1 unit |
| 4M Passive out table | 1 unit |
| Safety cover | 1 unit |
| Spare parts | 1 package |
3. Application
4. Working flow
Decoiler--servo feeding- hydraulic punching for the holes and notch--roll forming-- hydraulic cutting- out put tables

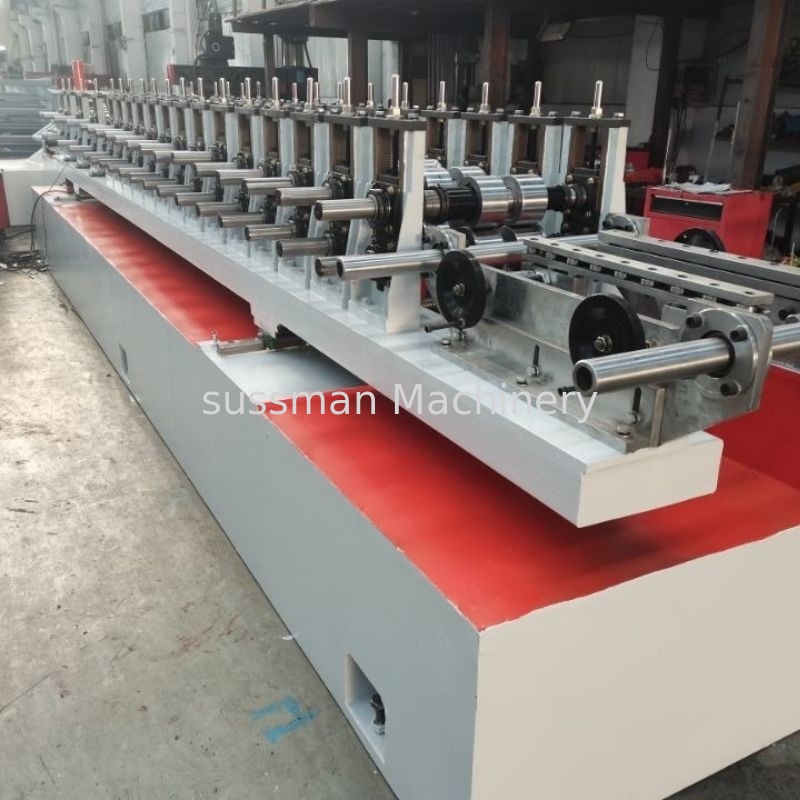

5.Machine picture
Light steel frame machine is to make the wall strcuture or ceiling system, it is used to plaster board, gypsum board and other decorative finishes lightweight board.
Products made by this machine are suitable to use in hotels, theaters, shopping malls, factories, office buildings, old building renovation, interior decoration settings, roof and other places.
Material for this machine is galvanized steel plate, snowflake plate and cold steel plate,we can according to customer design, manufacture different specifications of cold-formed.
