Stud And Track Roll Forming Machine
>
|
|
| Place of Origin | Wuxi, China |
| Brand Name | Sussman |
| Certification | CE, SGS, ISO |
| Model Number | RF-ST |
40mm-150mm Width Adjust 0.45mm Thickness Stud Track Roll Forming Machine With PLC Control
1. Technical Parameter
|
1
|
Suitable to process
|
Color steel plate,galvanzied steel
|
|
2
|
Width of the plate
|
as customer size requirement
|
|
3
|
Thickness of the plate
|
0.45-0.9mm
|
|
4
|
De-coiler
|
Manual one, can load 3 tons raw material
|
|
5
|
Rollers for forming
|
13 rows
|
|
6
|
Diameter of the roller
|
70mm
|
|
7
|
Rolling material
|
High Grade Steel 45#
|
|
8
|
Main motor power
|
5.5 kw
|
|
9
|
Material of the cutting blade
|
Cr12 mov
|
|
10
|
Hydraulic cutting power
|
4kw
|
|
11
|
Processing precision
|
+- 1.00mm
|
|
12
|
Control system
|
Delta PLC control
|
|
13
|
Side panel of machine
|
16mm
|
|
14
|
Main structure of the machine
|
350 H steel
|
|
15
|
Weight
|
About 5T
|
|
16
|
Dimensions
|
5.5*1.0*1.2m
|
|
17
|
Voltage
|
380V 50Hz 3phases(changeable as needs)
|
|
18
|
Certificate
|
CE/ISO
|
|
19
|
Custom
|
According to customer's requirements
|
2. Machine Components
C U stud track profile is popular in South America, especially Peru, Chile, raw material could be Galvanized steel, high-tensile steel, the material can do 0.4mm to 1.2mm, width from 40mm to 200mm, change the width automatically by motor and PLC
We also have fully automatic light steel frame machine with vertex software, can do the house frame, like roof, wall, floor, windows, truss,etc.
Also we can design the machine as your requirement or drawings.
| 3T electric decoiler | 1 set |
| Feeding with guide | |
| Hydraulic punching device | 1 set |
| Roll forming machine | 1 set |
| Hydraulic station | 1 set |
| Control box system | 1 unit |
| Out tables | 1 unit |
| Safety cover | 1 unit |
| Tool box | 1 package |
3. C U profiles we can make

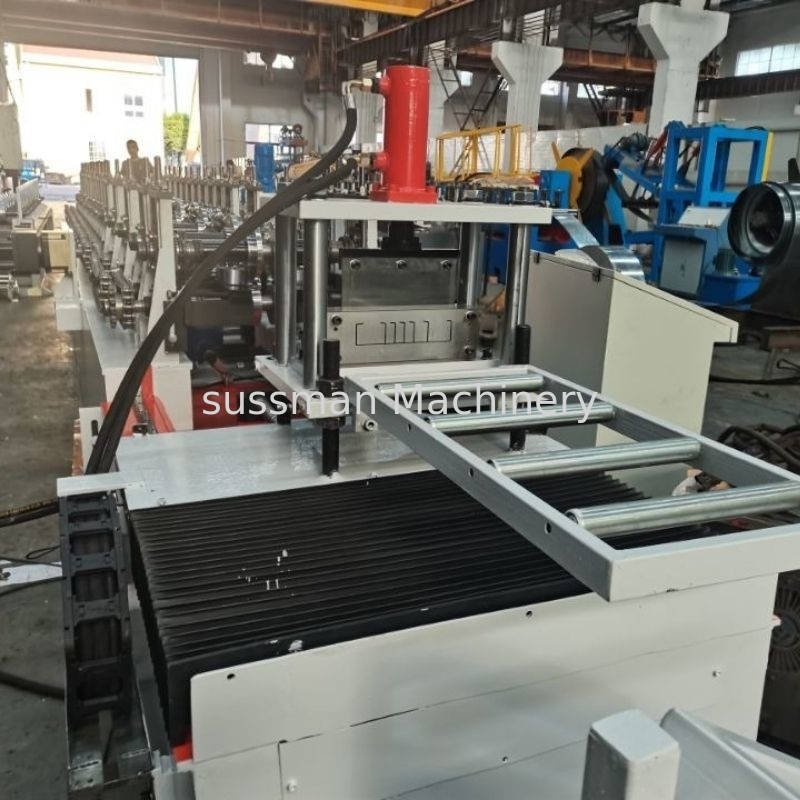

4. Machine photo
